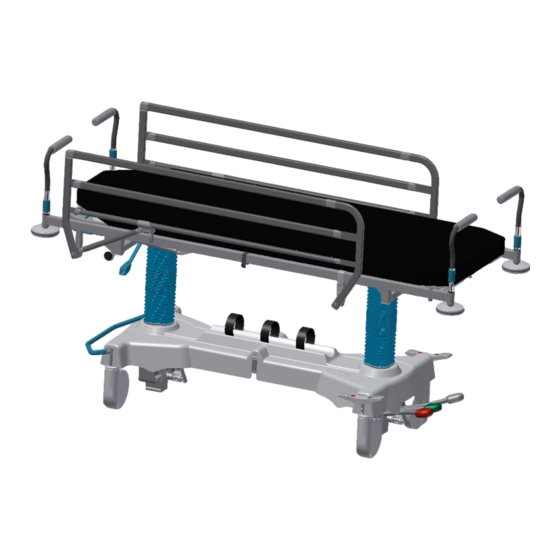

Trolley for patients transportation
Trolley for patients transportation
Factory no.:
Appendixes: 2, 3, 4, List of Spare Parts.
USER MANUAL
WP-09
WP-09 STRIDER
.............................................
.............................................
.............................................
Version 14.00
Issuance date: 15.01.2024
FAMED ŻYWIEC Spółka z o.o.
Advertisement
Table of Contents
Related Manuals for Famed WP-09
Summary of Contents for Famed WP-09
- Page 1 USER MANUAL Trolley for patients transportation WP-09 Trolley for patients transportation WP-09 STRIDER Factory no.: ............................Version 14.00 Issuance date: 15.01.2024 FAMED ŻYWIEC Spółka z o.o. Appendixes: 2, 3, 4, List of Spare Parts.
- Page 2 User Manual for Patient Trolley WP-09 As provided in the regulation of the European Parliament and the Council (UE) 2017/745 of 5 April 2017 on medical devices, it is a class I device. The producer declares that the product meets general safety and performance requirements specified in Appendix 1 of the regulation.
-
Page 3: General Notes
User Manual for Patient Trolley WP-09 Dear Clients, Congratulations on choosing the right product, we wish you would find a lot of satisfaction while operating it. Please read this manual very carefully as it includes all the vital information and notes from the producer concerning proper installation and maintenance of the product as well as its service. - Page 4 User Manual for Patient Trolley WP-09 While the trolley is being moved the floor must be free from obstacles! When moving the trolley, avoid collisions! Do not roll the trolley over electric cables The trolley should be at a minimum height with the rails raised if there is an...
-
Page 5: Table Of Contents
User Manual for Patient Trolley WP-09 Contents PROPER USE AND APPLICATION 1.1. PPLICATION 1.2. ENERAL REQUIREMENTS 1.3. UTIES OF THE USER 1.4. ECHNICAL DATA 1.5. ESCRIPTION OF ELEMENTS AND FUNCTIONS 1.6. ESCRIPTION OF PRODUCT 1.7. AFETY 1.8. RITICAL PARAMETERS TRANSPORT AND FIRST USE 2.1. -
Page 6: Proper Use And Application
1.1. Application The WP-09 trolley for patient transportation is used to transport patients to operating and treatment rooms, between rooms in hospitals, clinics and medical facilities. Due to the characteristics of the bed, the trolley can be used for x-ray. -
Page 7: Description Of Elements And Functions
User Manual for Patient Trolley WP-09 1.5. Description of elements and functions Two-segment pallet trolley Fig. 1 Position Equipment Description on fig. 1 Base Backrest segment Immovable segment Foldable head Hydraulic column Wheel Fifth wheel Central blockade lever Trendelenburg lever... - Page 8 User Manual for Patient Trolley WP-09 Four-segment pallet trolley Fig.2 Position Equipment Description in fig. 2 Base Backrest segment Fixed segment Foldable head Hydraulic column Wheel Fifth wheel Central wheel lock lever Trendelenburg pedal Anti-Trendelenburg pedal Pallet lift pedal Backrest section adjustment lever...
-
Page 9: Description Of Product
User Manual for Patient Trolley WP-09 1.6. Description of product WP-09 trolley parts list: - trolley frame, - side rails, - fenders, - mattress, - heads, - thigh lever, - backrest lever, - bed segment frames. The base and base of the trolley are made of painted steel, optionally in stainless steel. The bed segments are filled with a decorative plate. -
Page 10: Transport And First Use
User Manual for Patient Trolley WP-09 Transport and first use 2.1. Transport There is a possibility to transport the product by any covered transport means. While transporting, it is necessary to immobilize the truck and protect it against moisture. The couch should be in the lowest position. -
Page 11: Operation
User Manual for Patient Trolley WP-09 While the parameters are the same as described in user manual the product can be used. If not user must not use this product and as soon as possible inform the producer or distributor. -
Page 12: Shank Segment Inclination Adjustment (For 4-Segment Pallet Only)
User Manual for Patient Trolley WP-09 3.5. Shank segment inclination adjustment (for 4-segment pallet only) With the thigh segment inclined you can lift the shank segment to any angle and lock it in position with the ratchet gear. To lower the shank segment, lift it up slightly and then lower until level. -
Page 13: Wheel Lock
User Manual for Patient Trolley WP-09 Fig. 3b. Tray locking position on the leg side. After performing x-rays, the tray should always be left in the locking position. Locking is intended to prevent the tray from moving arbitrarily during the movement of the trolley and the longitudinal movements of the bed. -
Page 14: Installation And Using Of Additional Accessories
User Manual for Patient Trolley WP-09 Installation and using of additional accessories The trolley may be provided with the following accessories: Permissible Item Symbol load 75 kg when applied Side rails PB-10.91 downwards, 50 kg in other directions Painted side rails 75 kg when applied PB-10.93... -
Page 15: Head Types
User Manual for Patient Trolley WP-09 When lowering the side rails, press the rail with an open hand to avoid cutting your fingers when folding the rail into the down position. When lowering the rail, care should be taken to ensure that the patient or others are away from the moving parts of the rail. - Page 16 User Manual for Patient Trolley WP-09 b. Drip hanger is equipped with height adjustment. To change the height of the drip hanger, pull up the lock in position 3, Fig. 7a, and extend drip hanger to the desired height. c. Spread the hooks to the position shown in Fig. 7a. Gripping both hooks, rotate them to the desired position.
-
Page 17: Drip Hanger
User Manual for Patient Trolley WP-09 Fig. 7b While pushing the trolley, grip only the lower, lacquered part of drip hangers. Do not grip the hooks and the upper, chrome-plated part. Caution! To fold drip hangers below the mattress line, lower drip hangers to the minimum height and rotate the hooks as shown in Fig. -
Page 18: Criteria Of Evaluation Of A Correct Functioning Of The Product
6.2. Cleaning and disinfecting For cleaning and disinfecting use only cleaners, disinfectants recommended by FAMED ŻYWIEC Sp. z o.o. in Annex 2 to this manual (allowed to turnover and use on the territory of the country, where they are used). -
Page 19: Damages And Defects
Caution! Disinfectants containing in their composition active oxygen or chlorine at the concentrations given in Appendix No. 2 by Famed Żywiec Sp. z o.o., they do not cause deterioration of technical parameters or lower the safety of the product. -
Page 20: Control Of Technical Condition
User Manual for Patient Trolley WP-09 The product contains products which may be dangerous to the environment: - oil (pneumatic spring, hydraulic system), Caution! The rules of proceeding with used products which may be dangerous to the environment are defined in environmental regulations. -
Page 21: Product Liquidation
User Manual for Patient Trolley WP-09 If the fault cannot be eliminated, put the product aside and call the repair department or FAMED ŻYWIEC Sp. z o.o.’s service. 6.7. Product liquidation If the customer resign from further product exploitation, he is obliged to product liquidation according to rules of environment protection, detailed information is situated in annex no. -
Page 22: Trolley Identification
User Manual for Patient Trolley WP-09 Trolley identification When sending/ asking any questions concerning the trolley and when ordering spare parts, please give the serial number of the trolley placed on the nameplate and the guarantee certificate. 7.1. Nameplate Description of meanings of particular boxes of a name plate: 1 –... -
Page 23: 7.2. Labels
User Manual for Patient Trolley WP-09 7.2. Labels See point no. 7.1 Nameplate For cleaning and disinfection you should not use agents containing active oxygen and chlorine Permissible load Page 23... - Page 24 User Manual for Patient Trolley WP-09 Central wheel lock Lever of fifth wheel Anti-Trendelenburg lever Trendelenburg lever Height adjustment lever Oxygen bottle Height adjustment lever of back rest segment Page 24...
- Page 25 User Manual for Patient Trolley WP-09 Shank segment inclination adjustment lever (on 4-segment pallet trolleys) Thigh segment inclination adjustment lever (on 4- segment pallet trolleys) Warning! - Follow the instructions for safe use. Follow the instructions. Central wheel lock Notice!
