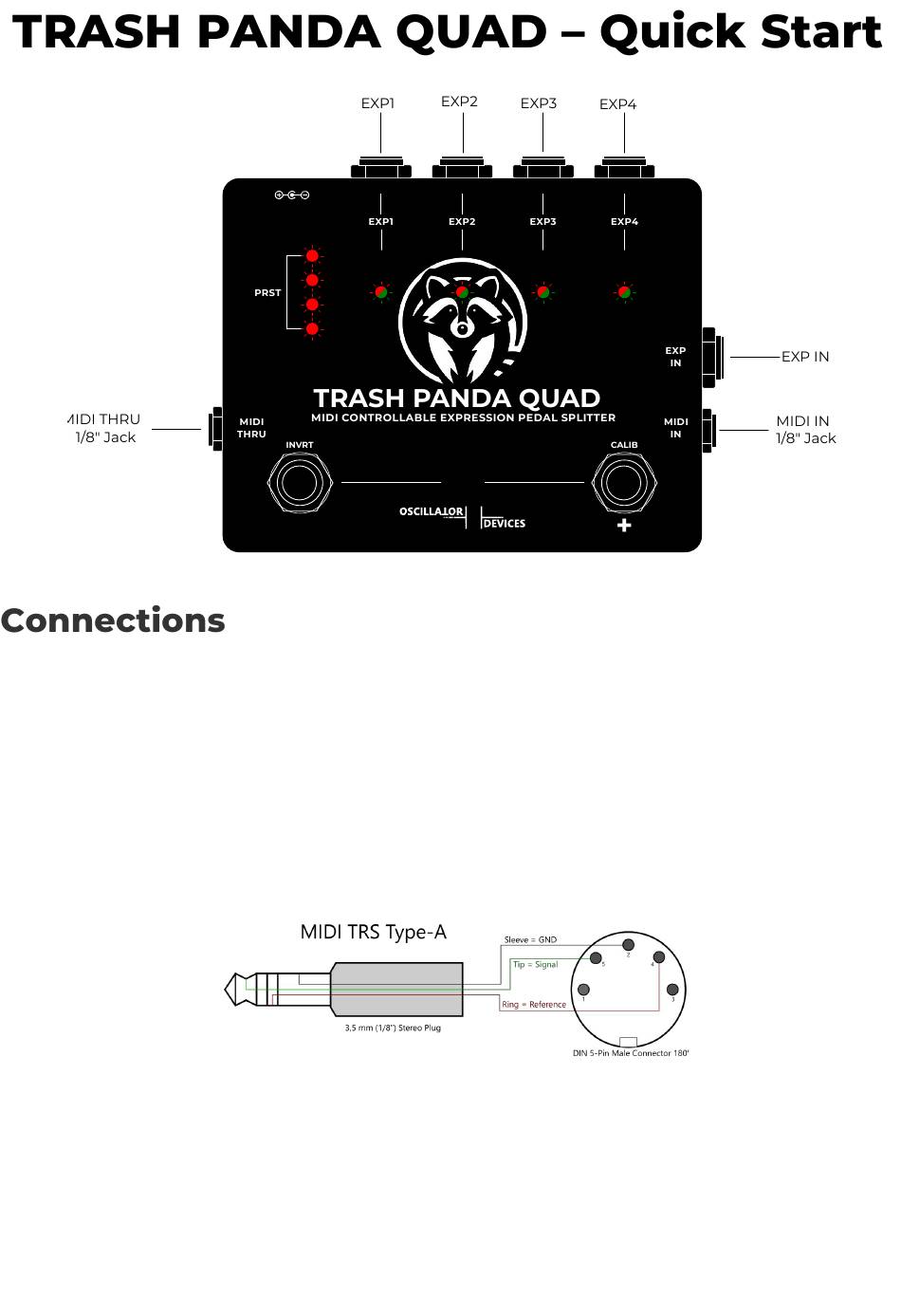

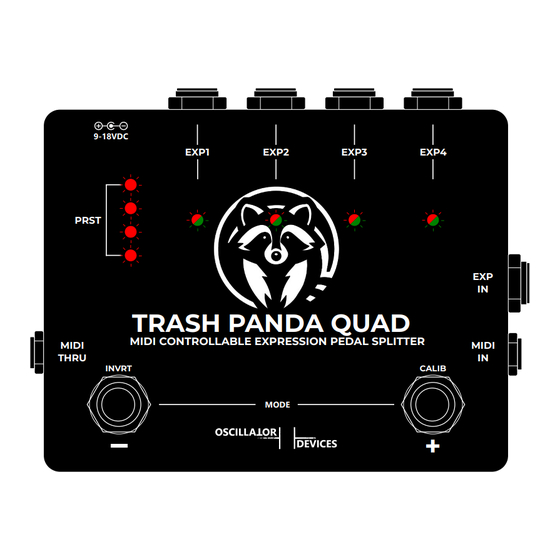

• EXP1/2/3/4: Expression outputs. 1/4'' stereo jack sockets wired like a standard expression pedal with a 50k
potentiometer and thus will fit most common pedals. Every EXP has a corresponding dual color LED to represent the
state of the expression output. It lights green in the heel position, shifts to orange in the middle position and
gradually fades to red towards the toe position.
• EXP IN: The expression pedal input. Connect a standard expression pedal (resistance does not matter) here to
directly control one or more of the expression outputs.
• Power Supply: 9-18V. 2.1mm barrel connector, center negative. This corresponds to the standard "Boss-Style"
power supply. Current consumption maximum 180mA.
• MIDI In/Thru: 1/8" stereo jack sockets according to MIDI standard for MIDI TRS (MIDI TRS-Type A).
Please disconnect all devices from the power supply, before making any connections.
Caution: Under no circumstances should there be more than +5V or negative voltages be applied to any expression
Oscillator Devices – Trash Panda Quad 1.1 – Quick Start
9-18VDC
–
socket.
MODE
October 11, 2024
Advertisement
Related Manuals for OSCILLATOR DEVICES TRASH PANDA QUAD
Summary of Contents for OSCILLATOR DEVICES TRASH PANDA QUAD
- Page 1 Please disconnect all devices from the power supply, before making any connections. Caution: Under no circumstances should there be more than +5V or negative voltages be applied to any expression socket. Oscillator Devices – Trash Panda Quad 1.1 – Quick Start October 11, 2024...
- Page 2 The Trash Panda Quad has three main modes. By pressing and holding both footswitches, you can switch between Manual Mode and Preset Mode. When the preset LEDs show the position of the expression pedal, the Trash Panda Quad is in Manual Mode. Footswitch...
- Page 3 Deactivated Deactivated Activated Deactivated Activated Deactivated Activated Activated Activated Deactivated Activated Deactivated Deactivated Activated Activated Activated Deactivated Activated Activated Deactivated Activated Activated Activated Closed Closed Closed Closed Oscillator Devices – Trash Panda Quad 1.1 – Quick Start October 11, 2024...
- Page 4 The Trash Panda Quad ships in omni mode (i.e. it responds to every channel). The MIDI channel can be set in two ways. With the +/CALIB-Footswitch, or with a MIDI command. To change the MIDI channel using the +/CALIB-Footswitch, proceed as follows: 1.
