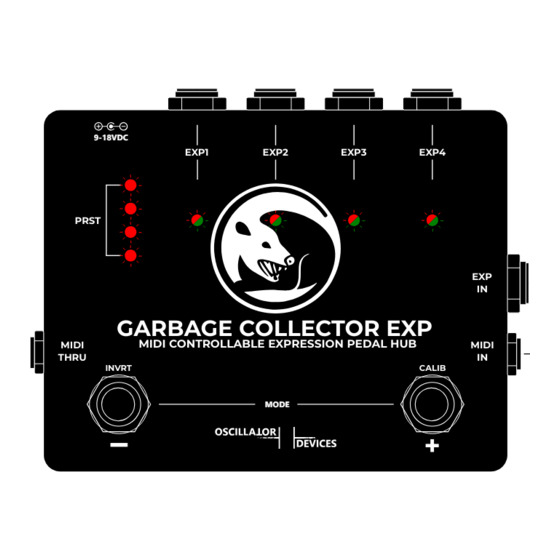

The Oscillator Devices Garbage Collector EXP is a MIDI controllable expression pedal hub. Plug an expression pedal into
the expression input and control up to four effects pedals with it. Either control one pedal at the time in manual mode,
or control several pedals at a time in preset mode. When using MIDI every expression output can be controlled
individually and the Garbage Collector EXP's internal LFO can drive the expression outputs with 3 different waveforms,
synced to MIDI clock.
Out
In
Out
In
Out
In
Out
In
EXP
EXP
EXP
EXP
9-18VDC
MODE
–
Please disconnect all devices from the power supply, before making any connections.
Caution: Under no circumstances should there be more than +5V or negative voltages be applied to any expression
socket.

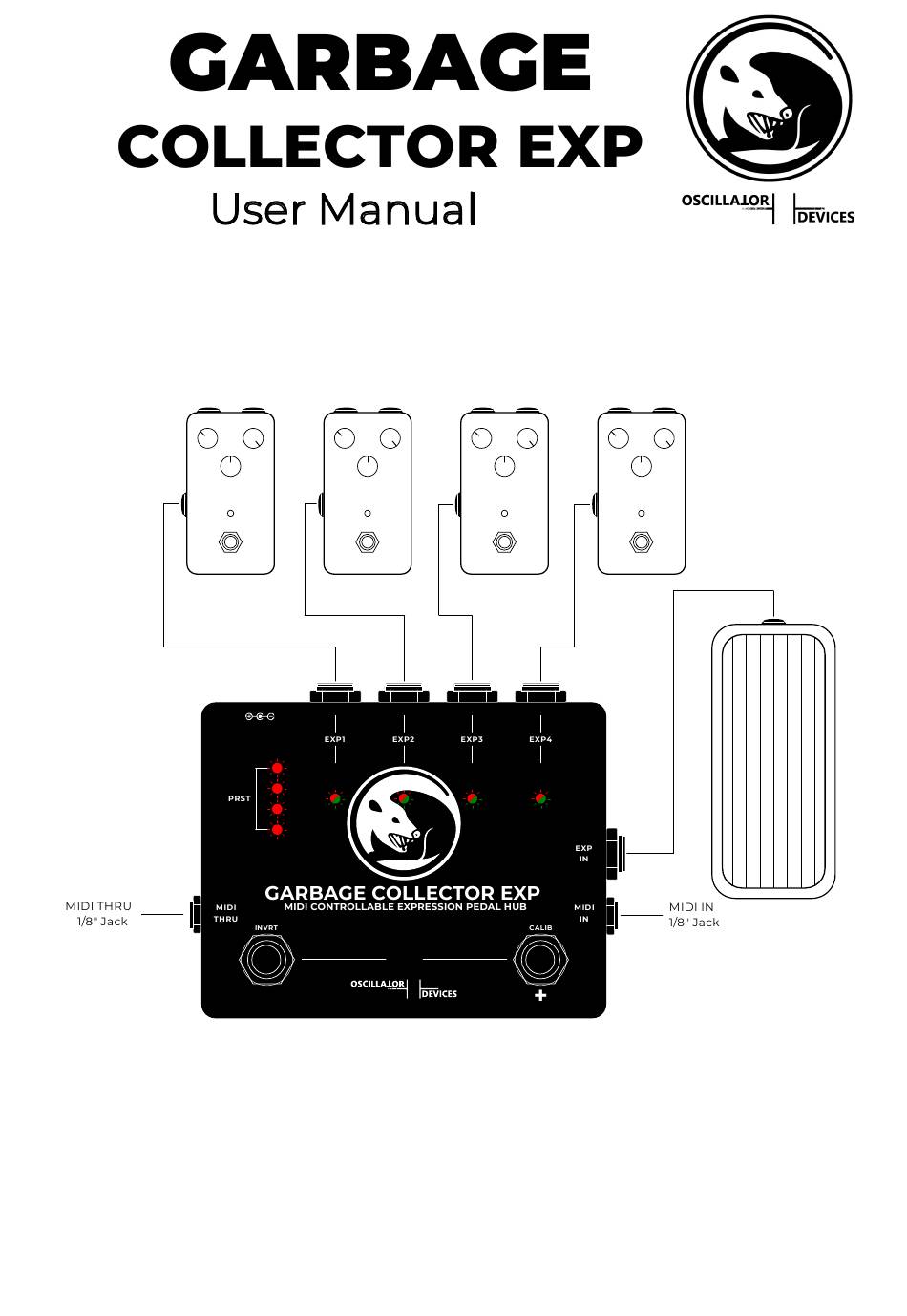

Oscillator Devices - Garbage Collector EXP – User Manual
1
22.09.2023
Advertisement
Related Manuals for OSCILLATOR DEVICES GARBAGE COLLECTOR EXP
Summary of Contents for OSCILLATOR DEVICES GARBAGE COLLECTOR EXP
- Page 1 The Oscillator Devices Garbage Collector EXP is a MIDI controllable expression pedal hub. Plug an expression pedal into the expression input and control up to four effects pedals with it. Either control one pedal at the time in manual mode, or control several pedals at a time in preset mode.
-
Page 2: Manual Mode
• MIDI In/Thru: 1/8“ stereo jack sockets according to MIDI standard for MIDI TRS (MIDI TRS-Type A). The Garbage Collector EXP has 3 main modes. By pressing and holding both footswitches, you can switch between Manual Mode and Preset Mode. By unplugging the expression pedal at the expression input, you automatically enter the MIDI Mode. - Page 3 When one or more of the preset LEDs light up, the Garbage Collector EXP is in Preset Mode. In Preset Mode one or more expression outputs can be active at the same time and the direction can be inverted individually. Like in Manual Mode, the corresponding LED of the outputs that are controlled by the expression pedal input will light up.
- Page 4 Sometimes you may notice that an particular expression pedal doesn’t reach full heel or full toe. The calibration procedure is a way to tell the Garbage Collector EXP where is full heel position and full toe position. To calibrate a new expression pedal, proceed like this.
- Page 5 Deactivated Activated Activated Deactivated Deactivated Activated Deactivated Activated Deactivated Activated Activated Activated Deactivated Activated Deactivated Deactivated Activated Activated Activated Deactivated Activated Activated Deactivated Activated Activated Activated Closed Closed Closed Closed Oscillator Devices - Garbage Collector EXP – User Manual 22.09.2023...
- Page 6 The Garbage Collector EXP has an internal, MIDI clock synchronous, LFO engine with 3 waveforms to drive the expression outputs. These are the basic commands for selecting the waveform and starting point. Refer to the following chapters how to alter these commands to change speed and range.
- Page 7 Expression LFO on TRS2 CC 30 11 + CC 31 61 Expression out of TRS2 controls the filter and sweeps in 1/2 notes sinus in sync with MIDI clock reduced range with half the full range. Oscillator Devices - Garbage Collector EXP – User Manual 22.09.2023...
