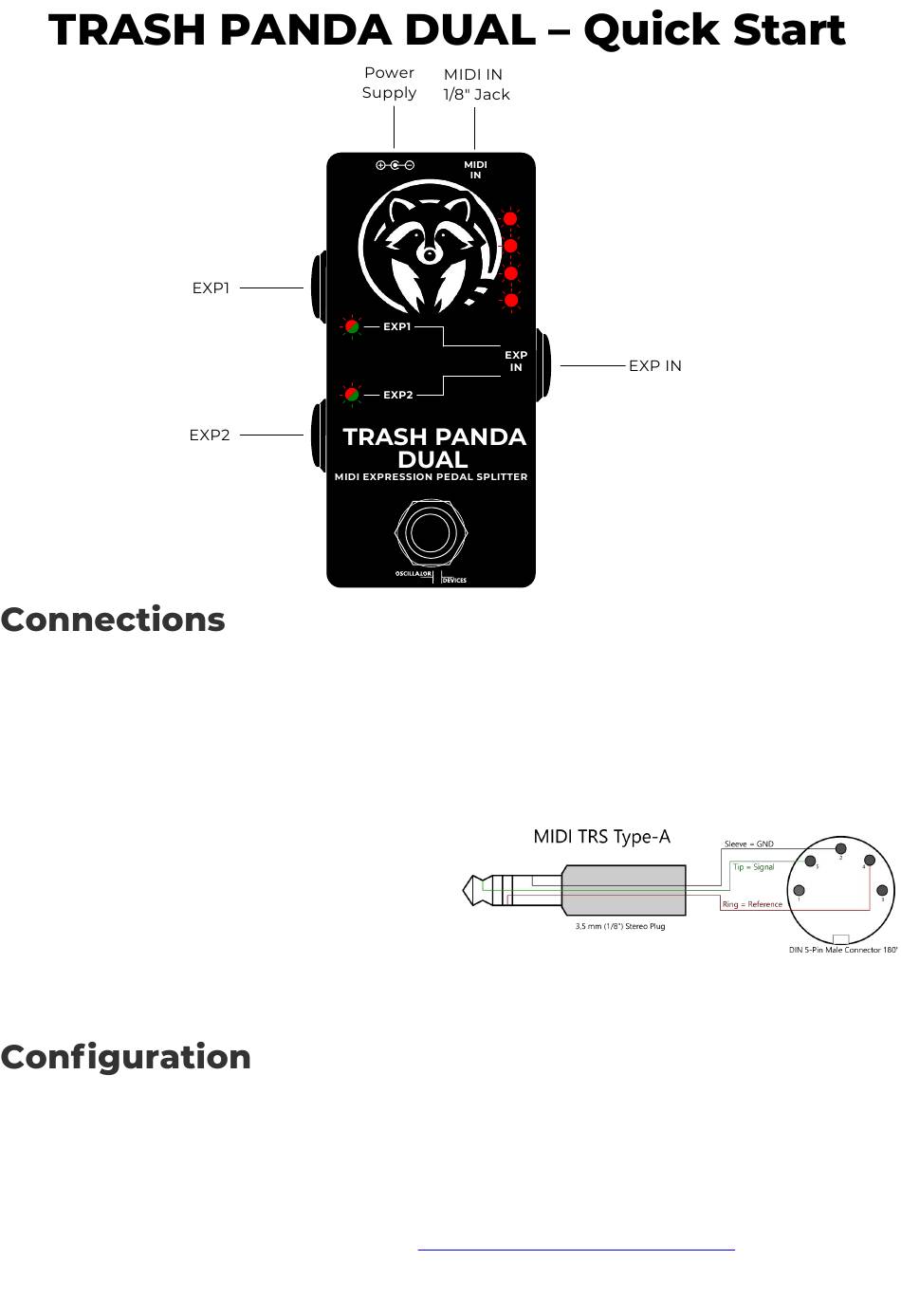

OSCILLATOR DEVICES TRASH PANDA DUAL Quick Start Manual

• EXP1/2: Expression outputs. 1/4'' stereo jack sockets wired like a standard expression pedal with a 50k
potentiometer and thus will fit most common pedals. Every EXP has a corresponding dual color LED to represent the
state of the expression output. It lights green in the heel position, shifts to orange in the middle position and
gradually fades to red towards the toe position.
• EXP IN: The expression pedal input. Connect a standard expression pedal (resistance does not matter) here to
directly control one or more of the expression outputs.
• Power Supply: 9-18V. 2.1mm barrel connector, center
negative. This corresponds to the standard "Boss-Style"
power supply. Current consumption maximum 100mA.
• MIDI In: 1/8" stereo jack sockets according to MIDI
standard for MIDI TRS (MIDI TRS-Type A).
Please disconnect all devices from the power supply, before making any connections.
Caution: Under no circumstances should there be more than +5V or negative voltages be applied to any socket.

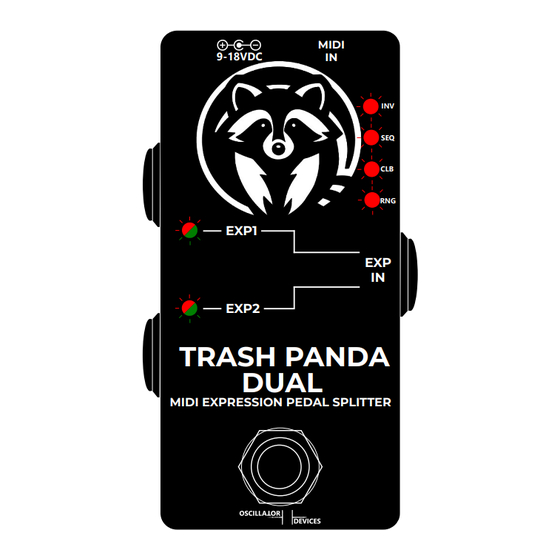

The Trash Panda Dual has a configuration mode, to set up various parameters. To get into configuration mode press
and hold the footswitch for longer than 3s. The EXP1/2 LEDs will start flashing rapidly and so will one of the red LEDs.
The red LED shows which configuration mode is selected. Press the footswitch until the LED next to the desired
configuration mode lights up. Press the footswitch four times to end the configuration mode.
Configuration Modes are: Inverting the Outputs, Setting the Sequence, Calibrating the Expression Pedal and Setting the
Range. For more details refer to the full user manual at
Oscillator Devices – Trash Panda Dual 1.0 – Quick Start
9-18VDC
INV
SEQ
CLB
RNG
https://oscillatordevices.com/trash-panda
October 11, 2024
