Dynabrade 50304 Quick Start Manual

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
50304 – 8,500 RPM
50307 – 11,000 RPM
KEY
O Oil: O = Air Lube
1
Adhesive:
A
A = Loctite #271
2
A = Loctite #380
6
A = Loctite #567
8
T Torque: N•m x 8.85 = In. - lbs.
Index Key
No. Part # Description
1 01790 Screw (4)
2 01791 Washer (6)
3 07123 Governor Cover
4 07129 Gasket
5 07126 Governor Bushing
6 50471 Spring Holder
7 95611 Spacer (6/pkg.)
8 07159 Governor Spring - 8,500
07169 Governor Spring - 11,000
9 50470 Pin
10 50463 Governor Valve
11 50938 Governor Pin (2)
12 50399 Governor Weight (2)
13 07124 Governor Cage
14 01007 Bearing
15 07114 Rear Bearing Plate
16 01775 Pin
17 07118 Cylinder
18 01673 Pin
19 07107 Blade (5/pkg)
20 07104 Rotor
21 07120 Front Bearing Plate
22 01277 Shim Pack (3/pkg.)
23 02552 Bearing
24 07158 Spacer
25 07135 Rotor Nut
26 07157 Handle Grip
27 52093 Rod
28 50511 Screw (2)
29 07149 Clamp
30 01797 Exhaust Cover
31 01798 Felt Silencer
32 96304 Gasket
33 07161 Housing
34 07136 Grip
35 02658 Packing
36 02631 Nut
37 02626 Adjustment Bushing
38 01746 O-Ring
39 01089 Safety Throttle Lever
40 07141 Valve Body
(Includes 07142 Bushing)
41 07142 Bushing
42 01697 Inlet Bushing
43 01017 Pin
44 07168 Valve Stem Assembly
45 07145 Spring
46 07146 Packing
47 07147 Plug
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
15
14
17
16
18
32
33
A
34
See reverse side for Accessories and Important Operating, Maintenance and Safety Instructions.
4-1/2"– 5" Vertical
6
11
T
9 N•m 7
13
8
12
9
10
23
24
T
23 N•m
25
30
31
38
T
50 N•m
8
A
2
37
40
36
35
T
17 N•m
47
Parts Page Reorder No. PD06•28
Effective August, 2006
Supersedes PD96•83
Disc Sander

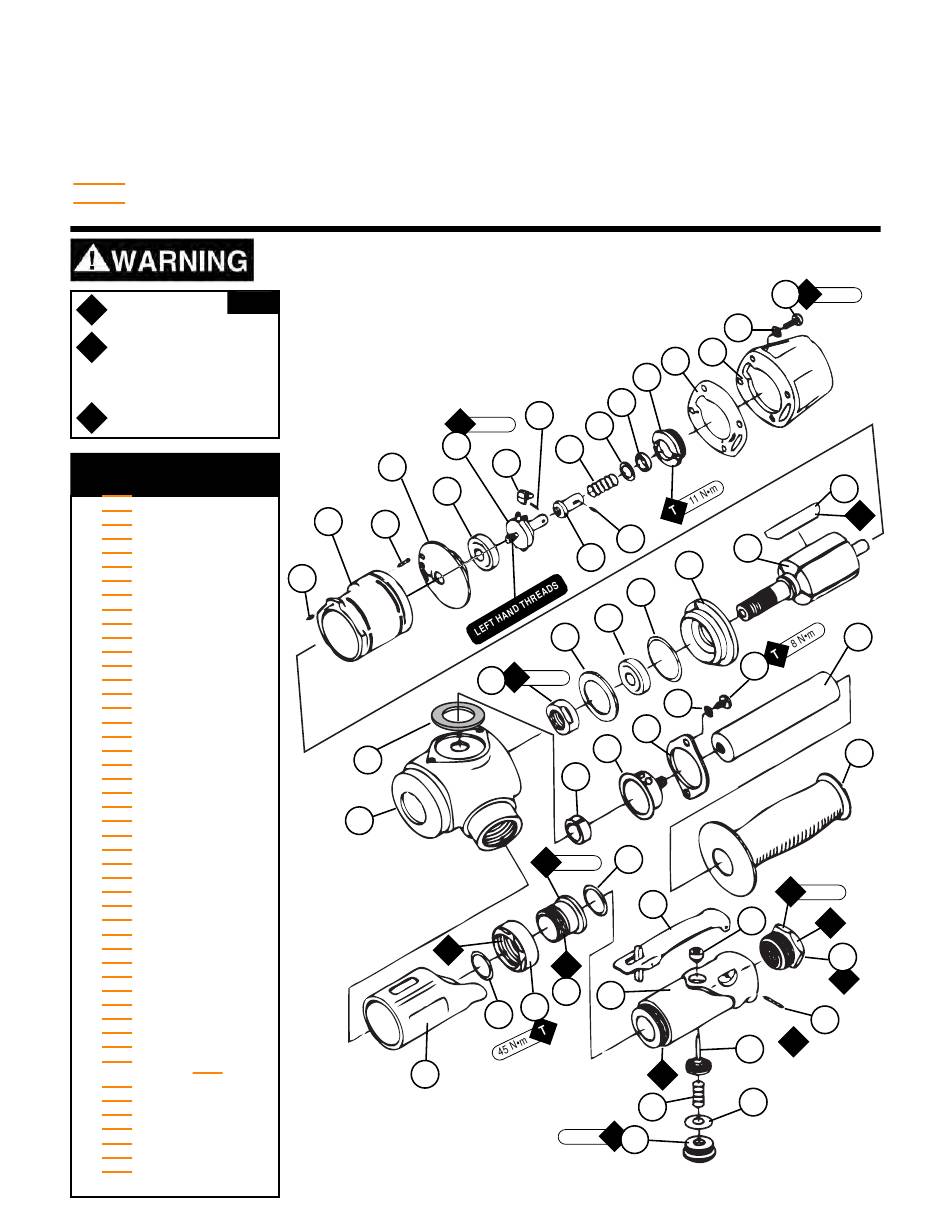

Air Motor and Machine Parts
1
T
2
3
4
5
20
21
22
28
2
29
T
45 N•m
39
41
A
6
44
A
8
46
45
8 N•m
19
O
1
27
26
O
1
42
A
2
43
