SECTION 034-368-701
TRANSFORMER
SHIELD
(Tl)
SUPPLY
REEL
TACHOMETER
READ/WRITE
HEAD CABLE
CONNECTOR
ASSEMBLY
CAPSTAN
DRIVE ASSEMBLY
ELAPSED
TIME METER
------~
Jl2
Jl3
INTERFACE
ASSY
RU.DY
Fl
.(,
SUPPLY
REEL
SERVO
MOTOR
REEL BRAKE
VACUUM
BLOWER
UNIT
MUFFLER
1
LATCH (2)
,
.
----MUFFLER
--VACUUM
UNIT
FILTER
(NOT
SHOWN)
VACUUM
UNIT
POWER
CONNECTOR
VACUUM
INTERLOCK
SWITCHES
REEL
BRAKE

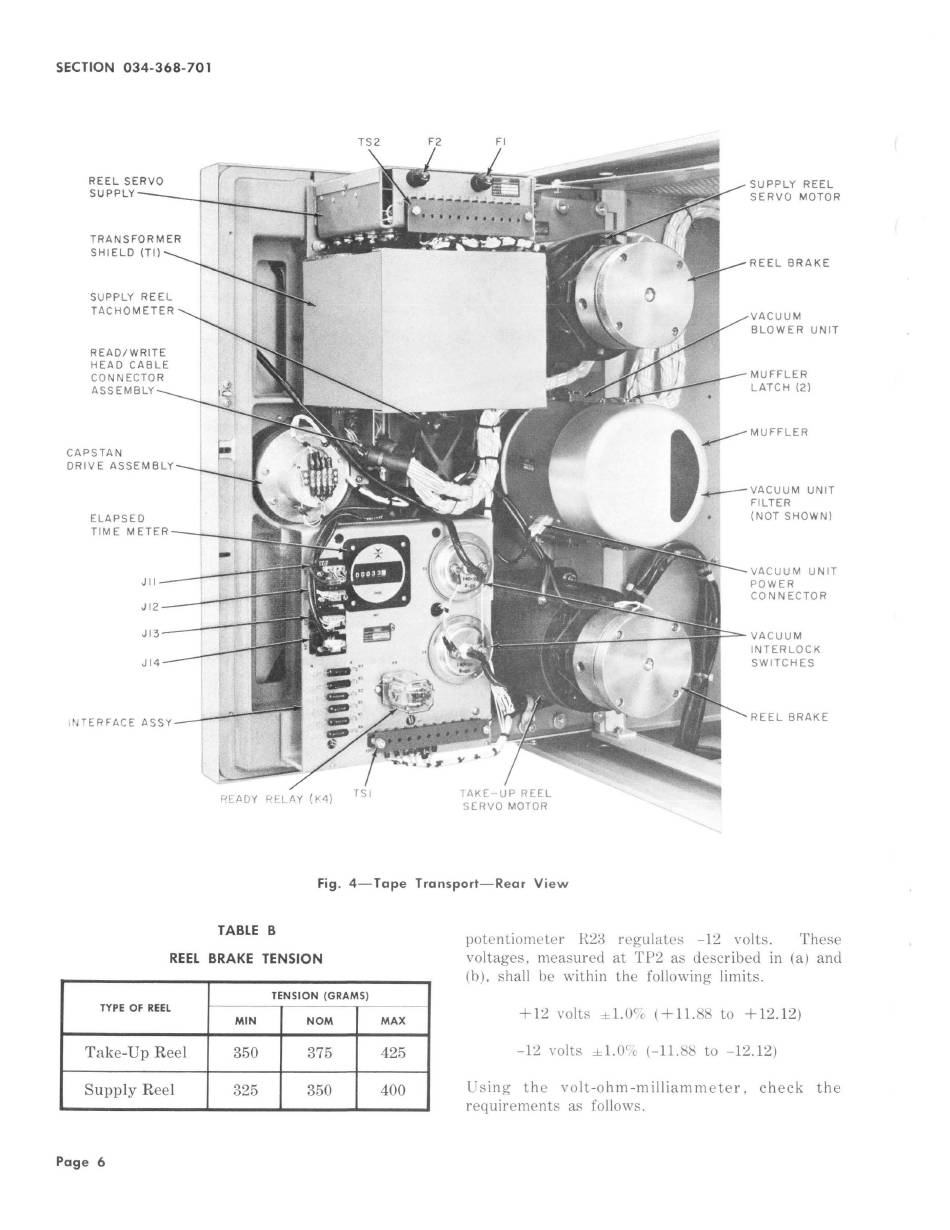

Fig. 4-Tape
Transport-Rear
View
TABLE B
REEL BRAKE TENSION
TENSION
(GRAMS)
TYPE OF REEL
MIN
NOM
Take-Up
Reel
350
375
Supply Reel
325
350
Page 6
MAX
425
400
potentiometer
R23 regulates
-12 volts.
These
voltages, measured at TP2 as described
in
(a) and
(b), shall be within the following
limits.
+12 volts
±1.0%
(+11.88 to +12.12)
-12 volts
±1.0~o
(-11.88
to
-12.12)
Using
the
volt-ohm-milliammeter,
check
the
requirements
as follows.
