Addictive Desert Designs AC18156501NA Installation Instructions

Addictive Desert Designs®
Preparation:
• Disconnect the negative battery terminal. Park the vehicle on level ground and set the emergency brake.
• We recommend reading through the installation instructions in whole before performing the work.
• Estimated Installation Time: 2 Hours
**This installation requires 2 people for best results**
You will need the following tools:
- Ratchet
- 3/16" Allen Wrench

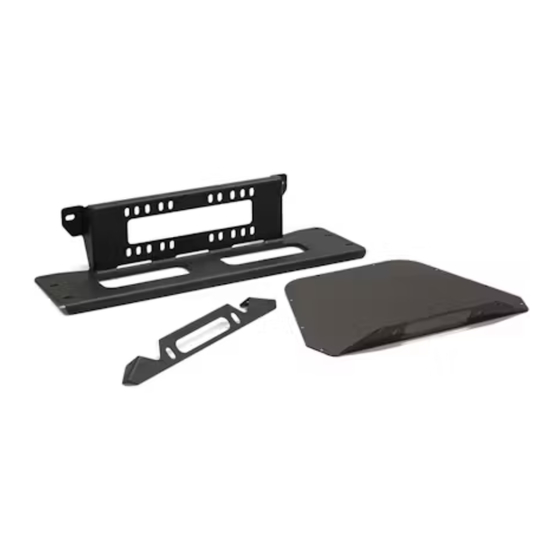

Included in Kit:
2 - Hex Head Bolts
4 - Flat Washers
2 - Nylon Lock Nuts
4 - Button Head Bolts
4 - Nylon Lock Nuts
1 - Fairlead Plate
**This installation guide is meant to be performed with the bumper off of the vehicle. If you are installing a
bumper at the same time as this winch kit, please refer to the bumper's guide for the installation procedure**
Installation:

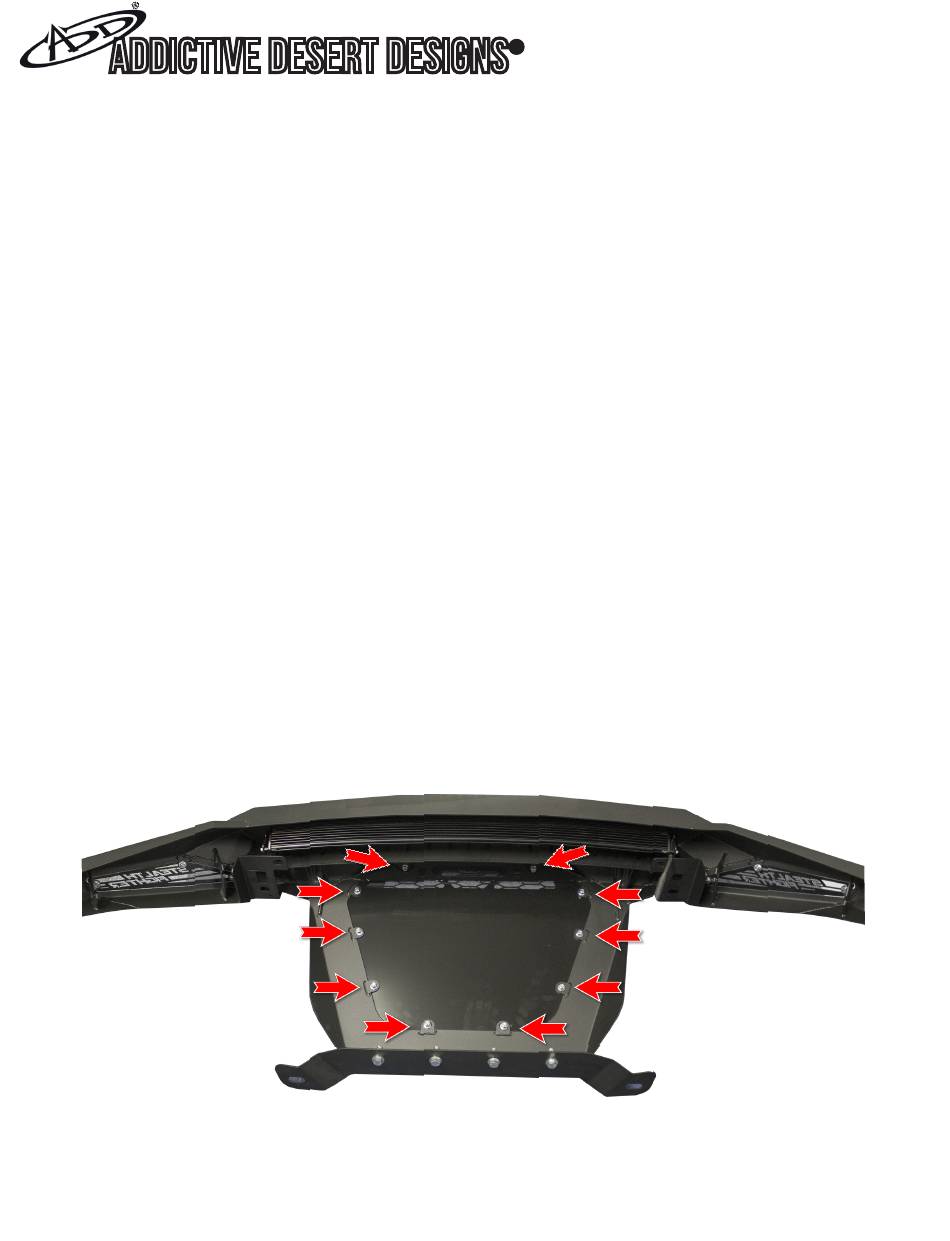

1. Using a 3/16" Allen Wrench and a 1/2" Wrench, remove the bumper's skid plate mounting bolts (x10). (Fig A)
Fig A
Addictive Desert Designs® | Page 1
- 9/16" Socket
- 1/2" Wrench
(1/2"-13 x 1 1/2")
(1/2")
(1/2"-13)
(5/16"-18 x 3/4")
(5/16"-18)
2018-Current Ford F150
Winch Kit Installation Instructions
- 3/4" Socket & Wrench
2 - Grade 8 Bolts
(3/8"-16 x 1 1/2")
2 - Flat Washers
(3/8")
2 - Extra Long U-Nuts
(3/8"-16)
4 - Flat Washers
(5/16")
1 - Winch Mount Skid Plate
1 - Winch Mounting Plate
