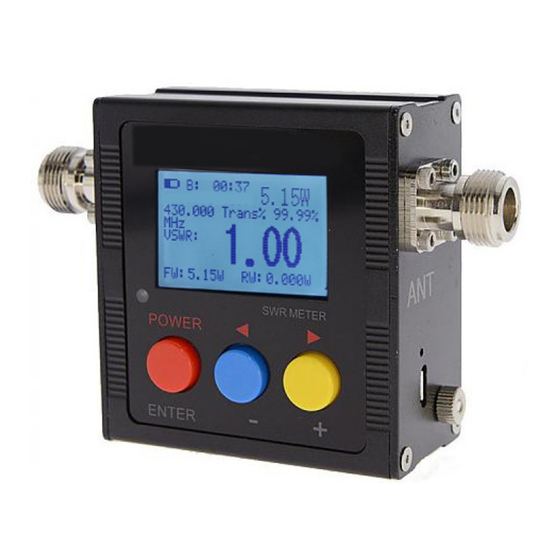

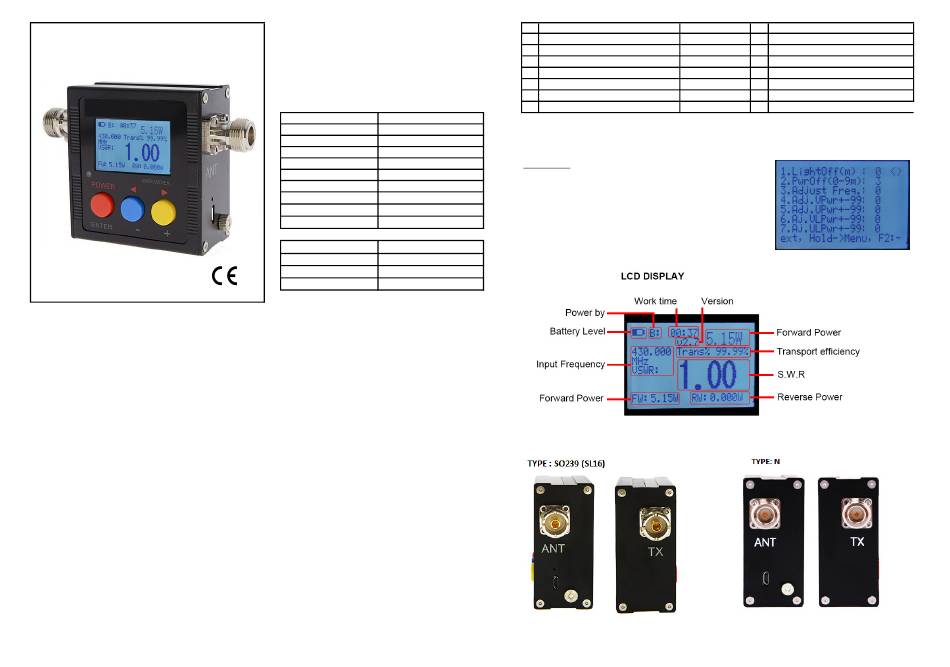

Surecom SW 102 UV User Manual

DIGITAL VHF/UHF 125-525MHz
POWER & S.W.R. METER
User Manuals
How to charge your meter :
Connect external USB DC+5V source (e.g. USB charger) to micro USB input
When display is showing 'E', it means the unit is powered by USB.
When display is showing 'B', it means the unit is powered by internal battery.
How touse meter connect your Radio :
TX : Connect to Radio antenna RF Output
ANT : Connect to ANTENNA or 50 OHM Dummy Load
( Proper adaptor/cable is required if .your device has different type of connectors.)
How to use a swr meter to test antenna (SWR) : (pic 1)
Measurement V.S.W.R. :
1)Radio antenna RF output connect to meter "TX" socket .
2)Antenna connect to meter "ANT" socket .
3)Push PTT from Radio, METER display is SWR measure data.
*TX Power must be 3 watt or more
How to use a meter to test the output Watt of your transceiver :
Measurement Power:
1)Radio antenna RF output connect to meter "TX" socket .
2)50 Ohm Dummy connect to meter "ANT" socket .
3)Push PTT from Radio, METER display is Power measure data .
( Check freq.standard VHF 145MHz UHF 430MHz) *(METER is not for DMR system)
How to rotate the display:
Press Yellow button and hold to rotate display in 180 degree
Key Specifications/Special Features:
Detect S.W.R.
Measurement RF Power (FF / REV)
Measurement Frequency counter
Specifications:
Max Power: 120W
VSWR: 1.00:1~19.99 :1
Frequency Range: Cover:125MHz-525MHz
Power in: 5V (micro usb)
Frequency counter: +/- 0.1KHz (+/-5%)
Li-ion Battery : 3.7V Li-ion Battery
In /Out Impedance : 50 Ω
Size without Socket : 70*75*35 mm
(in and out ) Interface: N / SO239 (SL16)
Net Weight : 220g
Package
1x S.W.R Meter
1x English Instructions
1x USB charger Cable
1x USB power Supply
Push [Blue button] for MENU
1 LCD DIM (Back Light Time)
2 Auto Power Off Time
3 Adjustment frequency counter -99 to +99
4 Adjust VHF power offset -99 to +99
5 Adjust UHF power offset -99 to +99
6 Adjust VHF low Power offset -99 to +99
7 Adjust UHF low Power offset -99 to +99
AutoZero (Second)
8 0 to 30
* Supplier, the product will add functionality without having to give notice
SET & SAVE:
1. Press MENU [Blue button]
2. Press F1 [Red button)(Select 1-8 Function)
3. Press [Blue button] ( - ), [Yellow button] (+)
4. Press the [Red button ]for 2 seconds
5. Press the [Red button ] 2 second and relest
,show the save and exit page
6. [Blue button] for save , [Yellow button] not save and exit
0-9 1 "0" is OFF, 1 min to 9 mins
0-9 3 "0" is ON , 1 min to 9 mins
0
1=0.1KHz ， - 1=-0.1KHz
0 "1" is up to 1%,"-1" is down to 1%
0 "1" is up to 1%,"-1" is down to 1%
0 "1" is up to 1%,"-1" is down to 1%
0 "1" is up to 1%,"-1" is down to 1%
5 0= Hold data, 1-30 Data auto reset
