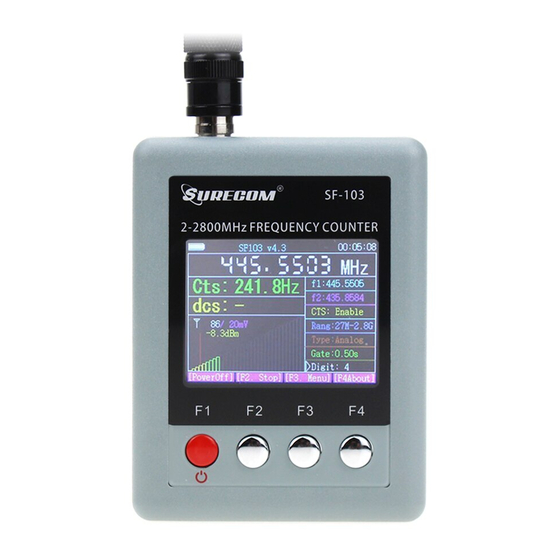

Surecom SF-103 User Manual

User manual:

1.1 Power On/Off:

Power on ,press and Hold down the [Red key] by 3 second
Power off ,press and Hold down the [Red key] by 3 second of number count down to 0

1.2 Charging the battery :

Plug the power cord into adaptor , micro usb connect SF103
The Led indicating:

1.3 Setup the frequency Range :

Press[ F2.stop ] button ,[F3 -->] select function to "Rang"
Press the [F4 Ent] Select 27M-2.8G(27MHz-2800MHz) /<=200MHz (below 200MHz) ,
and then press[F2] to Run

1.4 Setup the time Gate :

Press[ F2.stop ] button ,[F3 ---> ] select Function to "Gate"
Press the [F4 Ent] select : 0.1s / 0.25s / 0.5s / 1.0s ,and then press [F2] to Run

1.5 Setup the Frequency counter digi :

Press[ F2 ] botton ,[F3--->] select Function to "Gate"
Press[F4 Ent] Select : 3 / 4 / 5 / 6 , and then press [F2] to Run
! 27MHz-2.8GHz for 3 / 4 only , 2-200MHz for 3 / 4 / 5 / 6 , Detail Please see Table 1:

1.6 How to check Frequency of Digital DMR Radio

Press[ F2 ] botton ,[F3 --->] select Function to" type" :Press [F4] select Analog /
Digital(DMR) ,
and then Press [F2] to Run
!Note. Digital mode have 3 Decimal only.
1.7 How to ADJ. the Frequency mode of 27MHz -2.8GHz: ( See PIC.2)
Press, [F3 MENU ] , [F3 Down] / [ F4 Up] to select the Gate to (0.1s/0.25s/0.5s/1.0s)
Press, [F2 Edit] / [F3 - ] and [ F4 +] to select the +/- 99
Press, [F1. Main] exit , and then press [F4 save] for save the setting .([F1] not save for exit)
1.8 How to fine tune the Frequency mode of 2-200MHz: (See PIC.1 )
Tune the PCB VR1 (Variable resistance)
(The factory has been set accurate, such as non-technical staff do not tune)
1.9 How to use [F3 menu ] mode: (see PIC2)
Press, [F3 - ] / [ F4 +] select the function ,and then press [F2 edit] for edit mode ,
Press, [F3 - ] / [ F4 +] selecy for change the data .
Press, [F1. Main] exit , and then press [F4 save] for save the setting .([F1] not save for exit)
Caution:
1)Max. direct input signal 5Vp-p
2)Prohibit direct access to the radio antenna output, resulting in damage to the frequency
meter
*The RED light Charging * The Green light is Full
