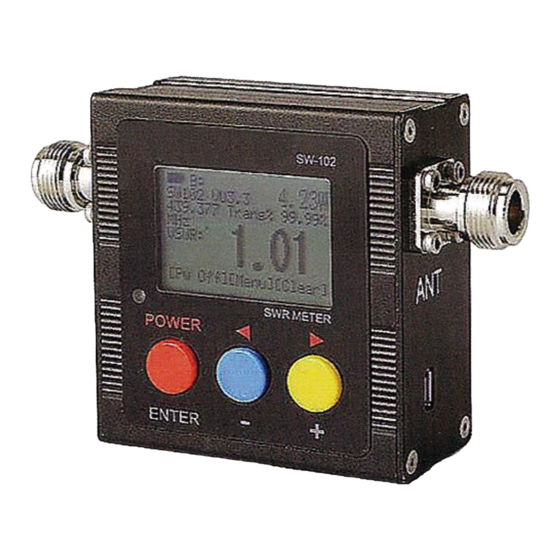

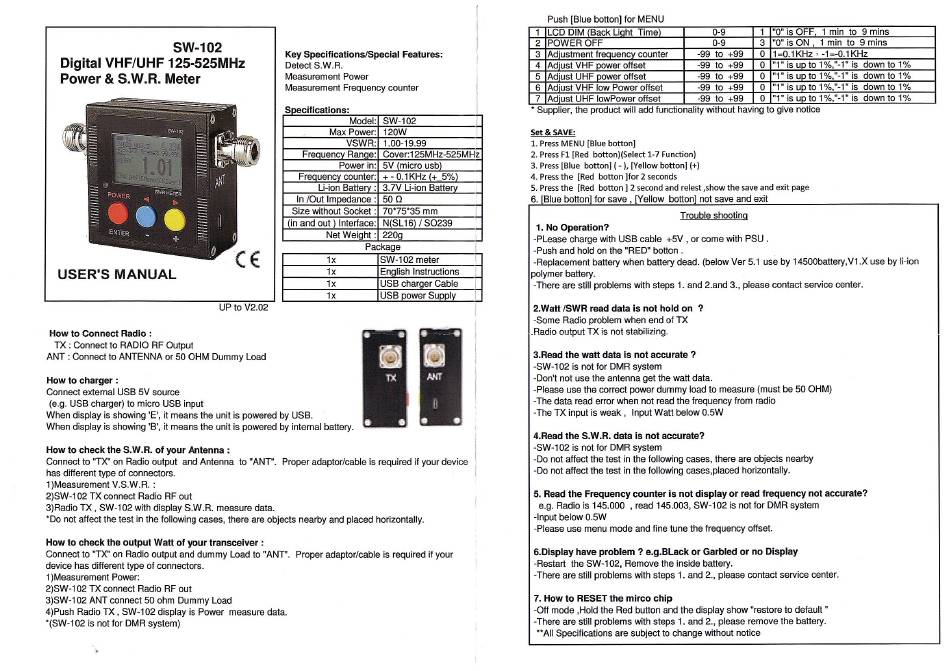

Surecom SW-102 User Manual

Push [Blue bottoni for MENU
sw-i 02
Digital VHF/UHF 125-525MHz
Power & S.W.R. Meter
Model: SW-102 $
Max
Power: 120W
VSWR: 1.00-19.99
Frequency Range: Cover:1 25MHz-525MHz
Power in: 5V (micro usb)
Frequency counter:
+
-
0.1KHz (+ 5%)
U-ion Battery:
3.7V
U ion
Battery
In
lout Impedance:
50 0
Size without
Socket:
70"7535 mm
(in
and
out) Interface: N(5L16) / S0239
Net Weight:
220g
Package
lx SW 102 meter
lx English Instructions
ix USB charger Cable
i
LCD DIM (Back Light Time) 0-9
1
*~n
is OFF. I mm to 9 mmns
2 POWER OFF
0-9
3 "0" is ON, 1 mm to 9 mins
3 Adjustment frequency counter -99 to +99 0 1=0.1KHz
•
-1 =-0.1 KHz
I
AdjustVHFpoweroffset -99 to ÷99 0 "1"isuptol%,"-l"is downtol%
5 AdjustUHFpoweroffset -99 to +99 0 "1"isuptoI%,"-l"is downtol%
I
AdjustVHFlowPoweroffset -99 to ÷99 0 "l"isuptol%,"-l"is downtol%
2,
AdiustUHFlowPoweroffset -99 to ÷99 0 "1"isuptol%,"-1"is downtol%
"
Supplier, the
product
will add functionality without having to give
notice
Sat & SAVE:
1.
Press
MENU [Blue
bottonj
2.
Press
Fl [Red bottonflselect 1-7 Function)
3. Press [Blue bottonj
(
-),
[Yellow botton] (+)
4. Press the [Red botton jfor 2 seconds
5. Press the [Red botton 1 2 second and
relest
,show the save and exit page
6. [Blue
bottonj
for save
,
[Yellow
botton]
not save
and
exit
Trouble shootino
1. No OperatIon?
-PLease
charge with USB cable i-5V
,
or come with PSU
-
-Push and hold on the "RED"
botton
-
-Replacement
battery
when battery
dead.
(below Ver 5.1
use
by l4500battery,V1 .X use by li-ion
polymer battery.
-There
are
still problems with steps 1.
and 2.and
a,
please contact
service center.
How to Connect Radio:
TX: Connect to RADIO RF
Output
ANT : Connect to ANTENNA or 50 OHM Dummy Load
How to charger:
Connect external USB 5V source
(e.g. USB charger) to micro USB input
When display is showing 'E', it means the unit is
powered
by USB.
When display is showing 'B', it means the unit is powered by internal
battery.
How to
check
the
SWR.
of your Antenna:
Connect
to "TX" on Radio output and Antenna to "ANT". Proper adaptor/cable is required if your device
has different type of connectors.
flMeasurement V.S.WR.:
2)SW 102 TX
connect
Radio RF out
3)Radio TX, SW-i 02 with display S.W.R. measure data.
*[k not affect
the
test In the following
cases,
there are objects nearby and placed horizontally.
How to
check the output Watt
of your transceiver:
Connect to "TX" on Radio output
and
dummy Load to "ANT". Proper adaptor/cable Is required if your
device has
different type of connectors.
I )Measurement Power:
2)SW-i 02 TX connect Radio RF out
3)SW 102 ANT connect 50 ohm Dummy Load
4)Push Radio TX, SW 102 display is Power measure data.
*(SW1 02 is not for DMR system)
2.Watt ISWR read data Is not hold on ?
-Some Radio problem when end of TX
.Radio output TX is not stabilizing.
3.Read the
watt data
Is
not accurate?
-SW-i 02 is not for DMR system
-Don't
not use
the
antenna get the watt data.
-Please use the correct
power
dummy load to measure (must be 50 OHM)
-The data read error when not read the frequency from radio
-The TX input is weak, Input Watt below 0.5W
4.Read the S.W.R. data Is not accurate?
-SW-i 02 is not
for
DMR system
-Do not affect the test in the following cases, there
are objects nearby
-Do not affect the
test
in the following cases,piaced horizontally.
5.
Read
the Frequency counter Is not display or
read frequency
not
accurate?
e.g. Radio is 145.000 ,read 145.003, SW-i 02 Is not for DMR system
-Input
below
0.5W
Please use menu mode and fine tune the frequency offset.
6.Display have problem ? eg.BLack or Garbled or no Display
Restart
the SW-i 02, Remove the inside
battery.
-There are still problems with steps 1. and 2., please contact service center.
7. How to RESET the mirco chip
-Off mode ,Hoid the
Red button
and the display show "restore to
default"
-There are stiii problems
with
steps 1. and 2., please remove the
battery.
"All Specifications are subject to change without notice
Key
SpecificatIons/SpecIal Features:
Detect S.W.R.
Measurement Power
Measurement Frequency counter
Soeciflcatlons:
USER'S MANUAL
CE
UP to V2.02
ix USB power Supply
