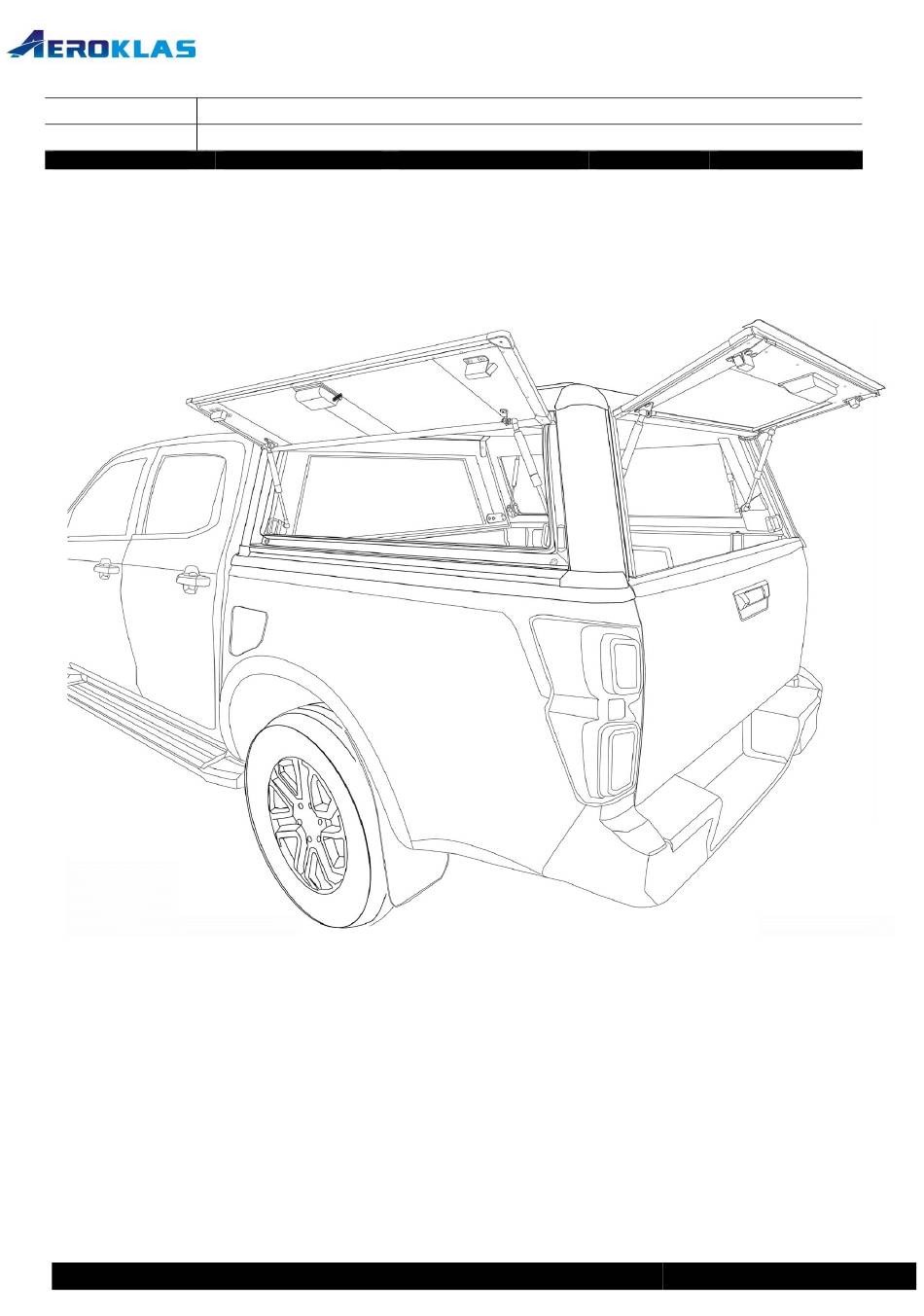

- Page 1 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 File: CANALUMODRPD22 Page 1 of 13 04/09/2024...
-
Page 2: Parts List

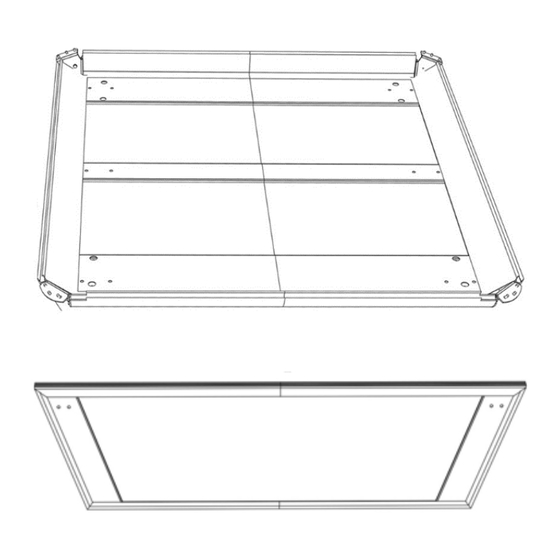

Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 Parts List Part Description Image Roof Panel Carton 1 Front Panel Left Side Panel Right Side Panel Carton 2 Rear Door File: CANALUMODRPD22 Page 2 of 13 04/09/2024... - Page 3 Nut Head Cover Left Water Channel Right Water Channel M8 x 20 Hex Bolt Kit 3 M8 Spring Washer M8 Flat Washer 6 x 3/8” Flat Head Self Taping Screw Front Rubber Plug and Play File: CANALUMODRPD22 Page 3 of 13 04/09/2024...
-
Page 4: Tools Required For Installation
• Check all parts are included per parts list Tools Required for Installation Box Cutter 5mm Allen Key Phillips Head 13mm 12mm 10mm Screwdriver Canopy Assembly 1. Assemble Rear Door to Roof Panel File: CANALUMODRPD22 Page 4 of 13 04/09/2024... - Page 5 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 Rear Door Brackets File: CANALUMODRPD22 Page 5 of 13 04/09/2024...
- Page 6 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 2. Assemble Side Panel Note: Lift up rear door before sliding the side panel into side roof frame File: CANALUMODRPD22 Page 6 of 13 04/09/2024...
- Page 7 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 3. Assemble Front Panel Front Panel Brackets Note: Pre-assemble fasteners by hand then tighten by tool 5mm Allen Key 10mm File: CANALUMODRPD22 Page 7 of 13 04/09/2024...
- Page 8 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 4. Securing Side Panel to Roof Note: Pre-assemble fasteners by hand then tighten by tool 13mm Rear Corner Cover LH-RH File: CANALUMODRPD22 Page 8 of 13 04/09/2024...
- Page 9 Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 5. Assemble Rear Water Channel Water Channel Note: Pre-assemble fasteners by hand then tighten by tool Note: Pre-assemble fasteners by hand then tighten by tool 12mm 10mm File: CANALUMODRPD22 Page 9 of 13 04/09/2024...
- Page 10 Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 6. Attach Front Corner Cover LH-RH Clean surface before applying tape glue 7. Attach Rear Corner Cover LH-RH Clean surface before applying tape glue File: CANALUMODRPD22 Page 10 of 13 04/09/2024...
- Page 11 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 8. Install Bracket to Truck Bed 9. Attach front rubber pad on the front panel bed File: CANALUMODRPD22 Page 11 of 13 04/09/2024...
- Page 12 To prevent damage to the D-rubber during installation, it is important that the canopy is lifted & lowered in place. Do not drag the canopy across the vehicles tub rail. • Once the canopy is centered, install clamps. 10.1 11. Install Gas Struts File: CANALUMODRPD22 Page 12 of 13 04/09/2024...
- Page 13 Assembly & Installation Guide Product: Aluminium Canopy Vehicle: Ford Ranger 2022+ (Next Gen) Part No. CANALUMODRPD22 12. Connecting Plug & Play Harness File: CANALUMODRPD22 Page 13 of 13 04/09/2024...
