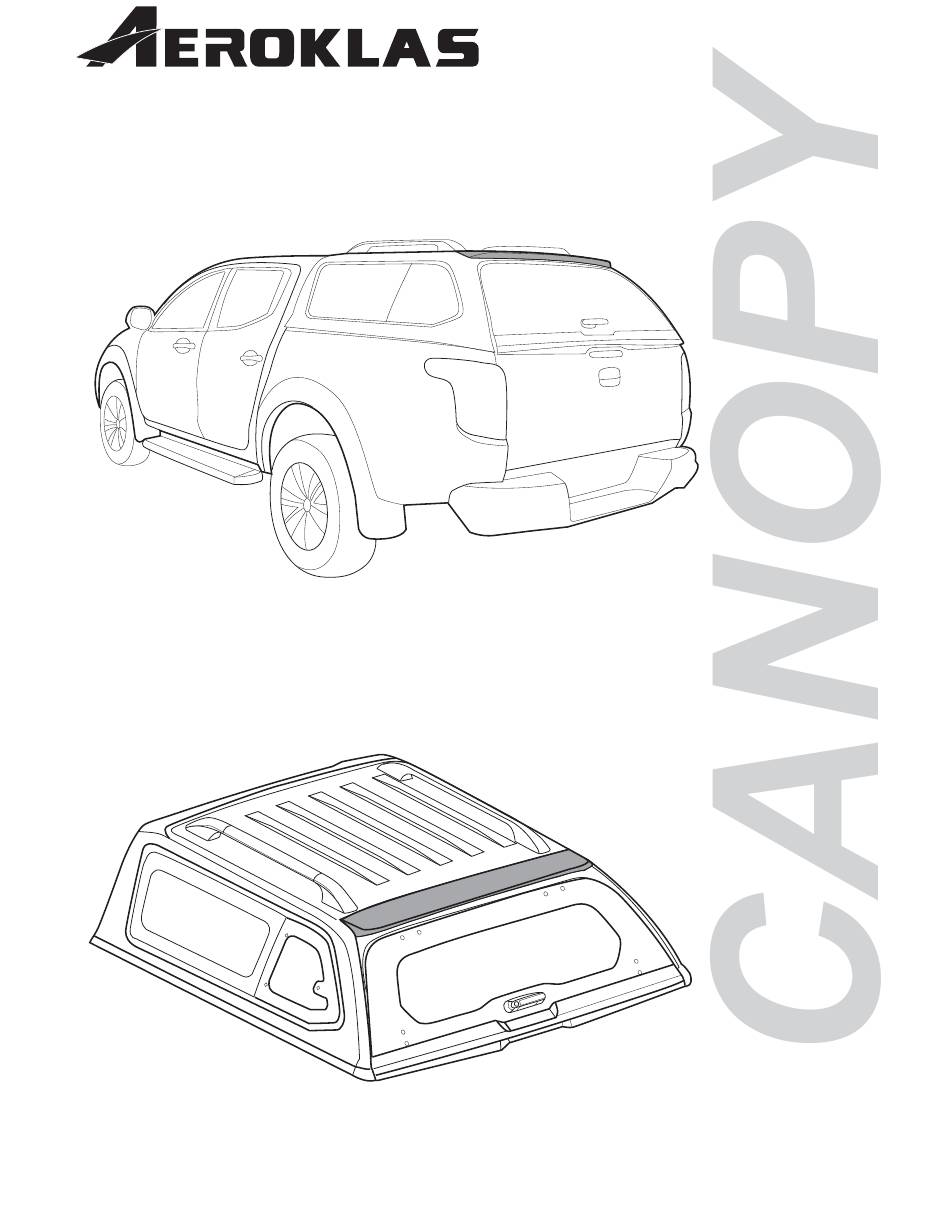

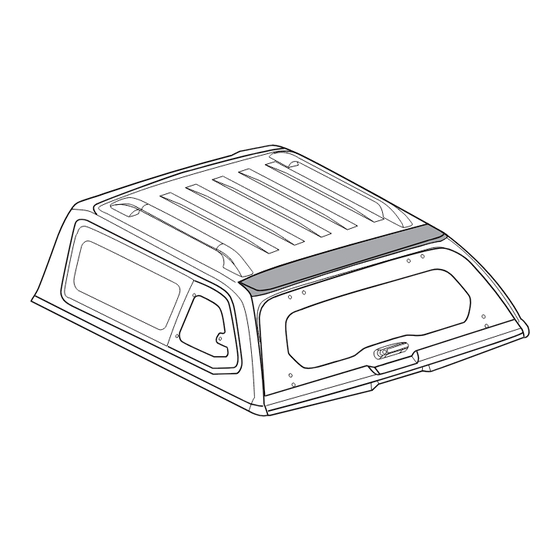

- Page 1 INSTALLATION MANUAL TRITON SU SPOILER Installation time : 20 mins. For Spoiler...
- Page 2 Drill jig = 3 Pcs. Manual = 1 Pcs. TOOLS No. mm. Drill 3, 8, mm. Cleaning cloth 2 Put the drill-jigs into the nut. Clean the install area with the cloth. Model Number Issue Date Page TRITON SU 10 05 /201...
- Page 3 8 mm.- diameter until through inner canopy. Take off spoiler. Adhesive tape Rubber seal Remove seal on all adhesive tape. Take off Rubber Plug 3 point . Model Number Issue Date Page TRITON SU 3 4 / 10 05 /201...
- Page 4 9 Inside canopy : Tighten screw set to the nut of spoiler, (3 position). 8 Put the spoiler into the nuts hole. 10 Put rubber-plug in the hole. 11 Install completely. Model Number Issue Date Page TRITON SU 4 4 / 10 05 /201...
