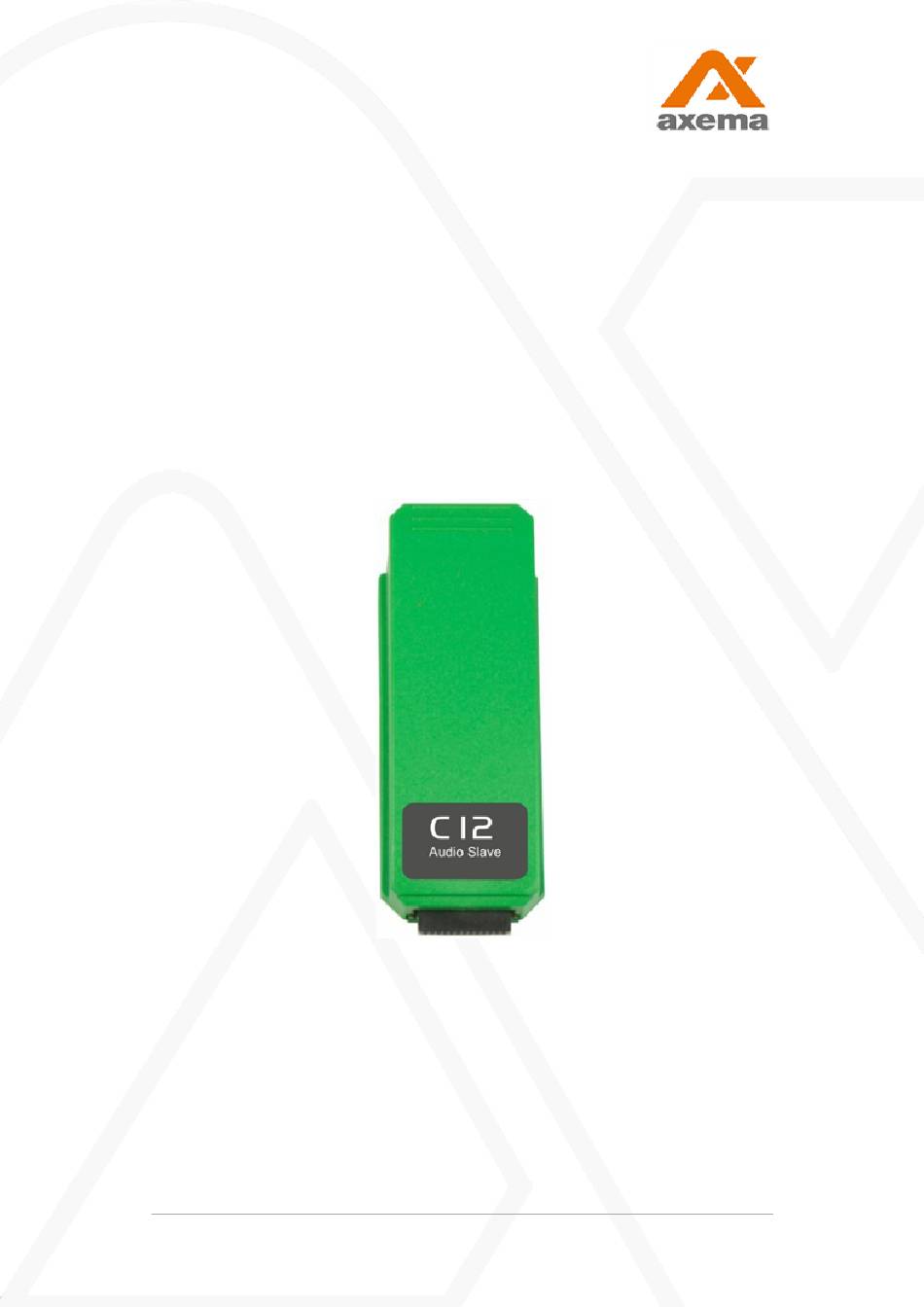

- Page 1 Connection instructions Updated 29/01/2024 Sound module C12, 2-3120 Module to connect external speakers for spoken messages in VAKA. Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
- Page 2 Rev. 1 and 2 are used with B26. Rev. 3 is used with B27. and B27-R Rev. 4* is used with B27, B27-R and B28. The revision (Rev.) is visible on the packaging and on the label on the back side of C12. Connection Connector Function Cable High level output for passive speakers.
- Page 3 * Only to be connected for C12 Rev. 4. The revision (Rev.) is visible on the packaging and on the label on the back side of C12. Installation examples High level with one speaker Please note: The connections 7-11 and 8-10 is only needed for C12 revision 4.
- Page 4 High level with two speakers Please note: The connections 7-11 and 8-10 is only needed for C12 revision 4. Commissioning 1. Power off the controller. 2. Mount the module at any module location in the door controller. 3. Install the supplied terminal below the module and power up the controller.
