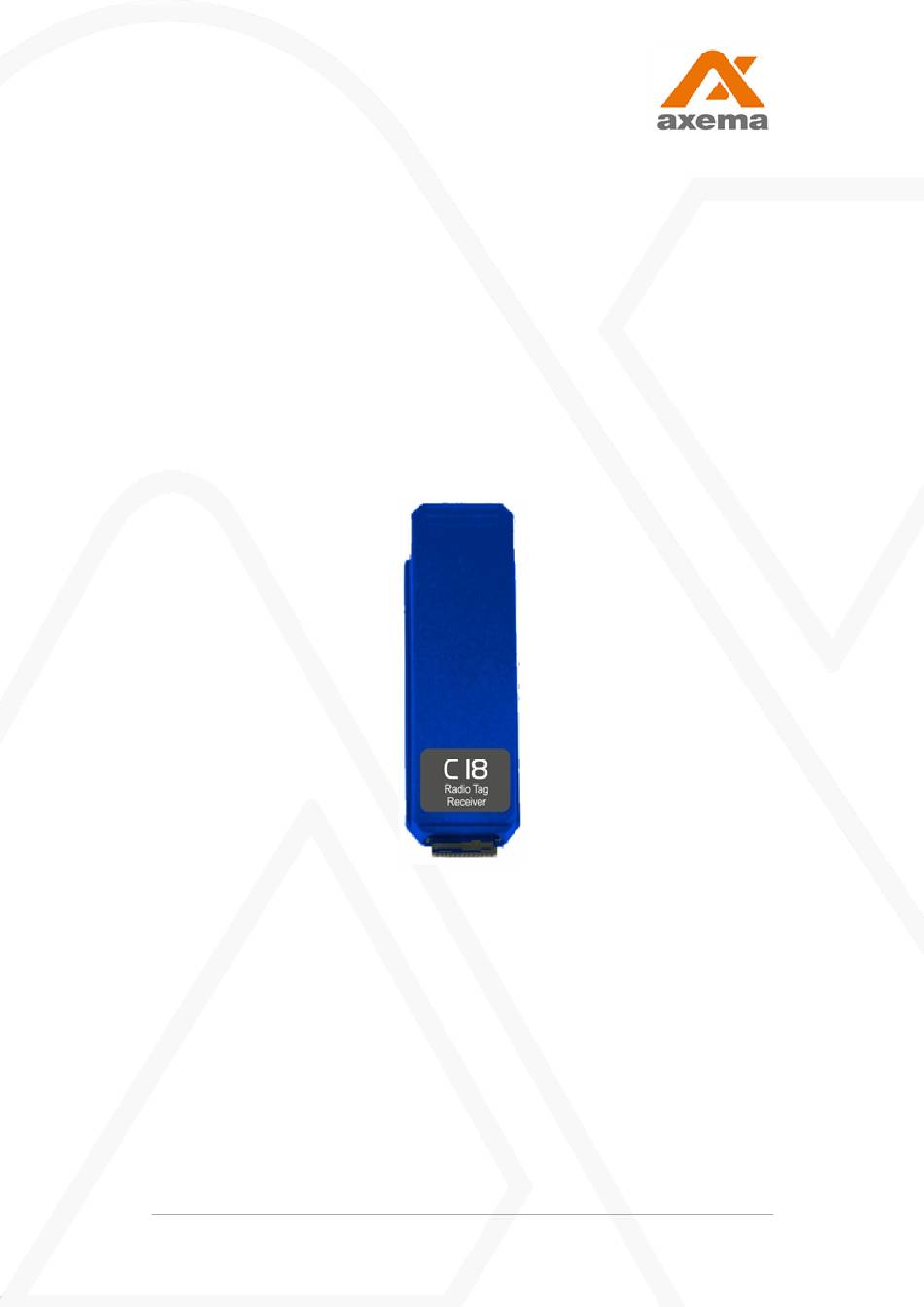

- Page 1 Connection instructions Updated11/26/2020 Radio module C18, 2-3180 C18 is used for remote opening of e.g. gates or doors. Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
- Page 2 C17 module. The radio key RN18-1 has one button that corresponds to the A button on RN18-4. It is possible to mount several C18 modules in the same system, but, then it is recom- mended that different buttons on the radio key are programmed for each C18 module.
- Page 3 External antenna The C18 is equipped with an MMCX connector for connecting an external antenna. The cable for Axema's antenna for extra range (2-5010) can be routed as shown. 1. Power off the controller.
- Page 4 For information of how to configure the unit, see the manual for VAKA commissioning (https://info.axema.se?commissioning). For configuration of motor lock settings, see section Access control -> Motor lock in the com- missioning manual. (https://info.axema.se?commissioning) For configuration of the C12, see section Volume settings in the commissioning manual. (https://info.axema.se?commissioning)
