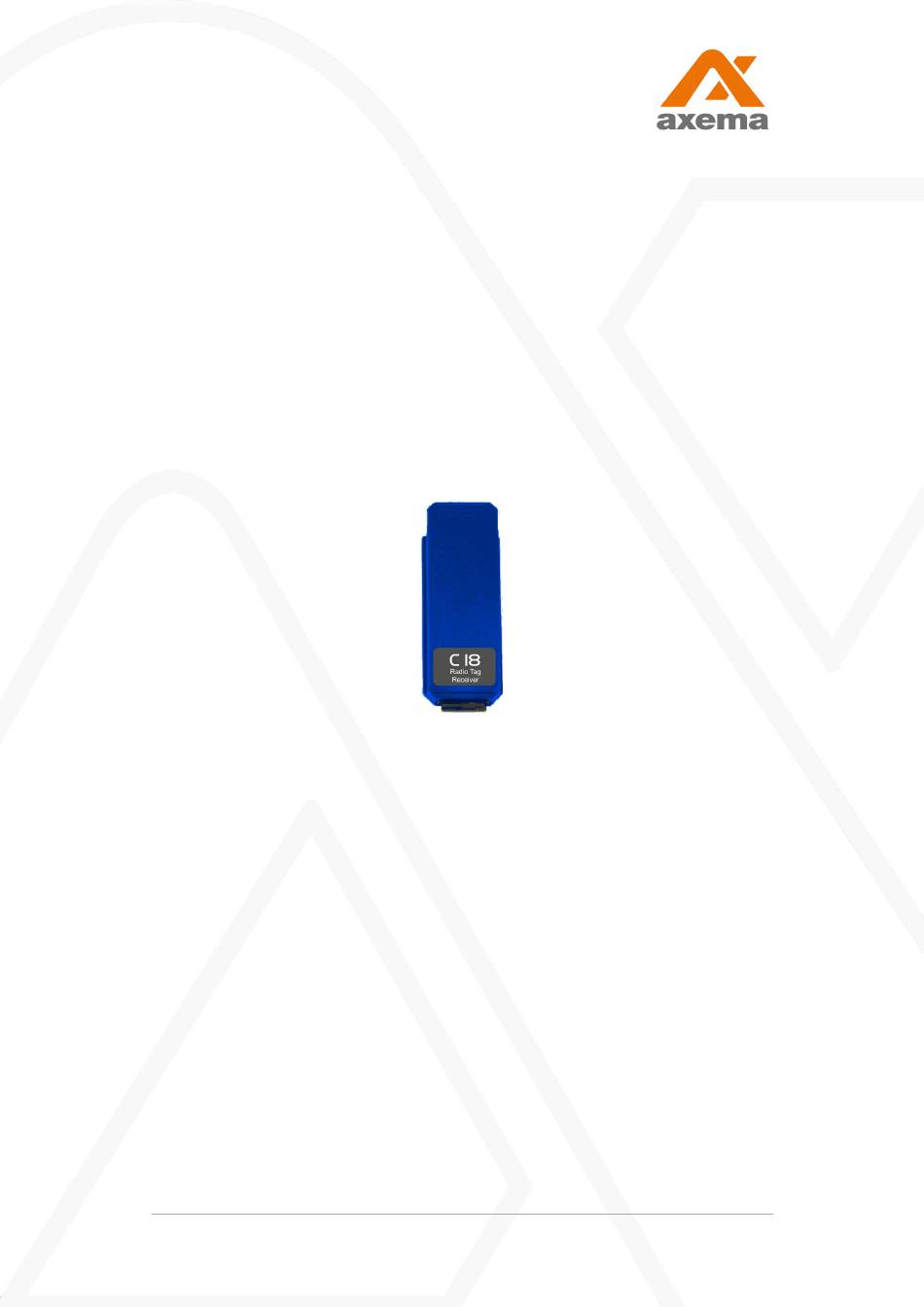

- Page 1 Manual Updated 2018-11-17 C18 Radio Module C18 is used for remote opening of gates, doors etc. Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | 08-722 34 40 | info@axema.se | www.axema.se...
- Page 2 C18 Radio Module Introduction Mounting and Installation If the quarter wave antenna is used inside If an external antenna is used Installation Programming Connecting user to a radio key 2 (6) Manual C18...
- Page 3 Introduction C18 radio module is a plug and play add on with integrated radio reader for VAKA systems. The communication between radio key and receiver is encrypted to avoid interception. The VAKA radio system communicates in the frequency 868 MHz and Axema's radio keys have unique IDs to allow tracing in the events log.
- Page 4 2. Cut a small hole in the right corner of the controller, see picture. 3. When the module is mounted it should be placed in the module position on the right side and the antenna should be fed through the hole and positioned vertically. 4 (6) Manual C18...
- Page 5 5. Click on the dialog and follow the instructions to install the module. Programming 1. Navigate to Doors - Radio Keys on the door where the module was installed. 2. Under General , the Time schedule during which radio key are active should be selected. 5 (6) Manual C18...
- Page 6 7. Paste the tag that was copied from Events in the ID field and name it, for example, "Richards radio key". 8. Click on OK and end with Save . 9. Add the person to an access group with access to the doors and relays that are to be controlled. 6 (6) Manual C18...
