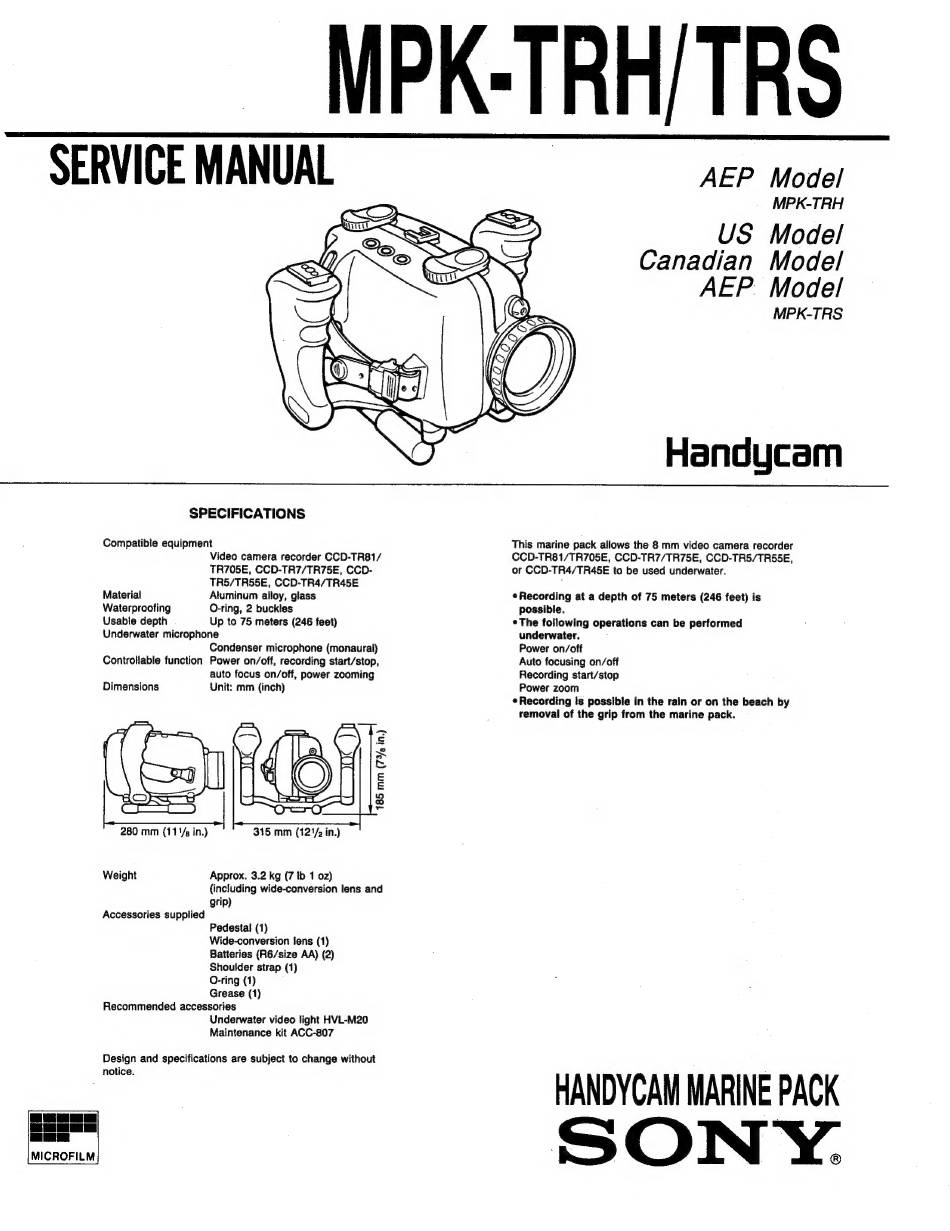

Sony Handycam MPK-TRH Service Manual

SERVICE MANUAL
SPECIFICATIONS
Compatible equipment
Video camera recorder CCD-TR81/
TR705E, CCD-TR7/TR75E, CCD-
TRS5/TRS5S5E, CCD-TR4/TR45E
Material Aluminum alloy, glass
Waterproofing O-ring, 2 buckles
Usable depth Up to 75 meters (246 feet)
Underwater microphone
Condenser microphone (monaural)
Controllable function Power on/off, recording start/stop,
auto focus on/off, power zooming
Dimensions Unit: mm (inch)
185 mm (7/s in.)
280 mm (111/s in.) 315 mm (121/2 in.)
Weight Approx. 3.2 kg (7 lb 1 oz)
{including wide-conversion lens and
grip)
Accessories supplied
Pedestal (1)
Wide-conversion Sens (1)
Batteries (R6/size AA) (2)
Shoulder strap (1)
O-ring (1)
Grease (1)
Recommended accessories
Underwater video light HVL-M20
Maintenance kit ACC-807
Design and specifications are subject to change without
notice.
MICROFILM
AEP Model
MPK-TRH
US Model
Canadian Model
AEP. Model
MPK-TRS
Handycam
This marine pack allows the 8 mm video camera recorder
CCD-TR81/TR705E, CCD-TR7/TR75E, CCD-TRS/TRS5E,
or CCD-TR4/TR45E to be used underwater.
*Recording at a depth of 75 meters (246 feet) is
possible.
* The following operations can be performed
underwater.
Power on/off
Auto focusing on/off
Recording start/stop
Power zoom
© Recording is possible in the rain or on the beach by
removal of the grip from the marine pack.
HANDYCAM MARINE PACK
SONY.
