Techly IDATA USBC-HUB5WL Manual

EN
TYPE-C™ HUB WIRELESS EXTENDER DISPLAY ADAPTER
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual
for future reference.
INTRODUCTION
• Mirror of you laptop or smarthone with USB-C™ port to a larger display wirelessly with a resolution
up to 1920x1080p@30Hz (tramission up to 30m Unobstructed)
• Wireless solution with hub for presentation in a meeting or classroom, for streaming video, for
watching sport events or gaming
• 3 USB-A ports 5Gbps with hub function and USB-C™ PD port 60W for charging device connected
• Plug and play: only connect the USB-C™ transmitter to laptop and receiver (HDMI+USB-A) to the
monitor
SYSTEM REQUIREMENTS
• The host laptop has an available USB-C™ port.
• Support Android 9.1/7.0/6.01, Windows 10/8/7/Vista/XP, MacOS Xl0.10.2 or higher, Linux 2.6.15 or
higher.
FEATURES
Types
Transmitter (TX)+ Receiver (RX)+ HUB
Network
WiFi 5GHz, 1T1R
1920*1080@30HZ,1080P/23.98/24/50/59.94/60HZ,
Resolution
1080i/50/59.94/60HZ, 720p/50/59.94/60HZ)
Transmitter Port USB-C™ DP-Alt
USB-A ports: 3 x USB-A 3.2 Gen 1, transmission up to 5 Gb/s,
Hub backward with USB2.0, 5V 0,9A
USB-C™ PD 60W
Receiver Port HDMI + USB-A (5V/1A power supply)
Transmitter Size 116*62*18mm
Receiver Size 60 cm
Weight 90g & 25g
OS supported MacOS/Windows/Linux/Android/ChromeOS
CSA
✖
OTA Online Update
✔
HDCP
✔
DRM streaming
✔

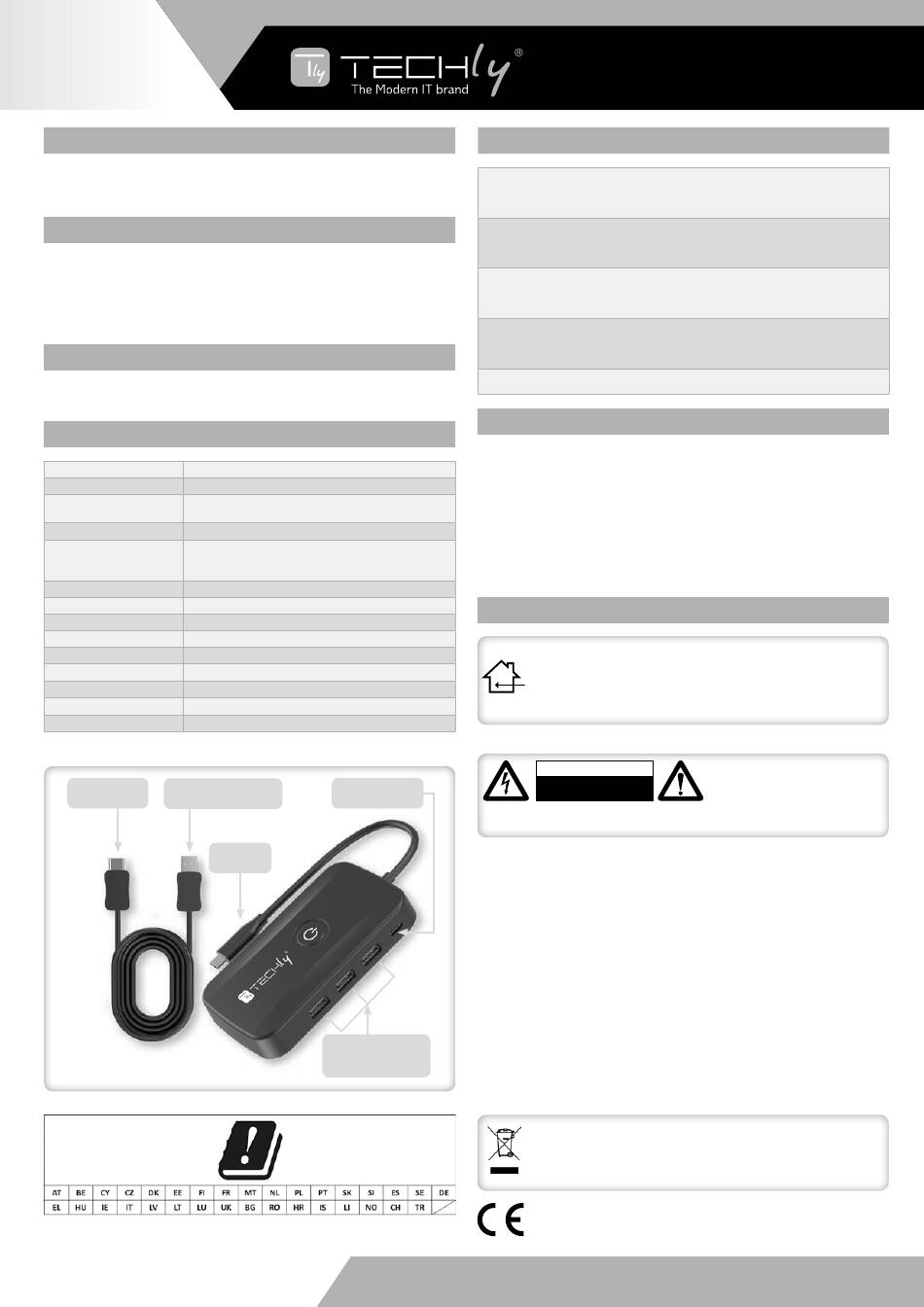

Connect to HDMI
Connect to the USB-A port
of the monitor
on the monitor
Connect
to the laptop
RESTRICTED TO INDOOR USE
WWW.TECHLY.COM
HOW TO USE
Plug the USB-C™ male end of the USB-C™ hub into the USB-C™ interface of the USB-C™
notebook (requires the computer to confirm whether the function of the interface has
PD+video+data transfer function).
USB 3.0/USB 2.0/USB3.1 Hub Function: Connect a smartphone, tablet, hard drive, mouse, keyboard
or other USB peripheral device to the USB A-type interface of the hub, when using an external
device with a large external power consumption,it is recommended to plug in the PD power supply.
USB-C™ Power Delivery function: Connect the hub to the original USB-C™ power adapter via the
USB-C™ cable. When the hub is in use, the USB-C™ laptop that supports USB Power Delivery (PD)
can be charged via the USB-C™ female port.
➀ Connect the receiver (HDMI+USB-A) to the monitor; ➁ Connect the Transmitter (HUB) to your
computer; ➂ Click Transmitter(HUB) Switch, wait 3~5s when computer synchronizes the screen
with the monitor, this means that connection successful.
Transmitter (TX)+ Receiver (RX): Wireless connection distance is 30m (Unobstructed).
NOTE
• Contains only one hub,not including power adapters, cards, or other accessories.
• The USB3.0 USB-A port on the hub supports a maximum 5V 900mAh total charge output. It is
backward compatible with USB2.0/1.1.
• To ensure a stable connection,do not use this hub with high power devices. It supports up to one hard
drive.
• The PD function can power and charge the connected USB-C™ laptop, the device's host USB-C™
port must support USB-C™ Power Delivery. The hub's USB-C™ charging port outputs up to 60W,
but no support data transfer.
• Need to support 2K HD display and 2K HD cable,can achieve 1920*1080P/30HZ resolution.
• Operating humidity: 10% to 85% RH (non-condensing).
• Storage temperature:-10~70° C.
• Storage humidity: 5% to 90% RH (non-condensing).
SAFETY PRECAUTIONS
INTENDED USE
with the intended use.
Connect to a power
supply
mains and other equipment if a problem should occur. Do not expose the product to water or
moisture.
• Your product is not a toy and is not meant for children, because it contains small parts which can be
swallowed and can injure when used inappropriately!
• Please install the system and devices attached to it in a way that persons cannot be injured, or
objects not be damaged for example by dropping or stumbling.
• Please remove the packing materials, because children may cut themselves on them while playing.
Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material.
• Avoid places with high temperatures, or humidity, or places which might come into contact with
water. Do not install the product close to openings of air conditioners, or at places with an excessive
amount of dust or smoke. Keeps distance from flammable and explosive devices.
• Do not install the product at places subject to vibration, or oscillation.
• Do not modify and alter the product and any accessories! Do not use any damaged parts.
• Keep enough space around all devices for a good ventilation and free motion and to avoid damages.
• Do not plug-in/out the cables when it is in using.
USB-A 5 Gbps
Note:
for connect flash drives,
• Transmission distances may vary depending on the environment.
mouse, keyboard
• Signals may be reduced or completely lost by solid structures such as walls, bricks, and glass.
TYPE-C™ HUB WIRELESS
EXTENDER DISPLAY ADAPTER
We do not permit using the device in other ways like described in this user's manual.
Use the product only in dry interior rooms. Not attending to these regulations and safety
instruction might cause fatal accidents, injuries, and damages to persons and property.
The manufacturer/supplier assumes no liability for damages caused by failure to comply
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
In compliance with EU Directive WEEE this product is marked with this symbol. It
means that used electrical and electronic products should not be mixed with general
household waste. There is a separate collections system for these products in
compliance with WEEE directive, otherwise contaminative and hazardous substances
can pollute the environment.
With the CE sign, Techly ensures that the product is conformed to the basic European
®
standards and directives.
To reduce risk of electric shock, this
product should ONLY be opened by an
authorized technician when service is
required. Disconnect the product from
