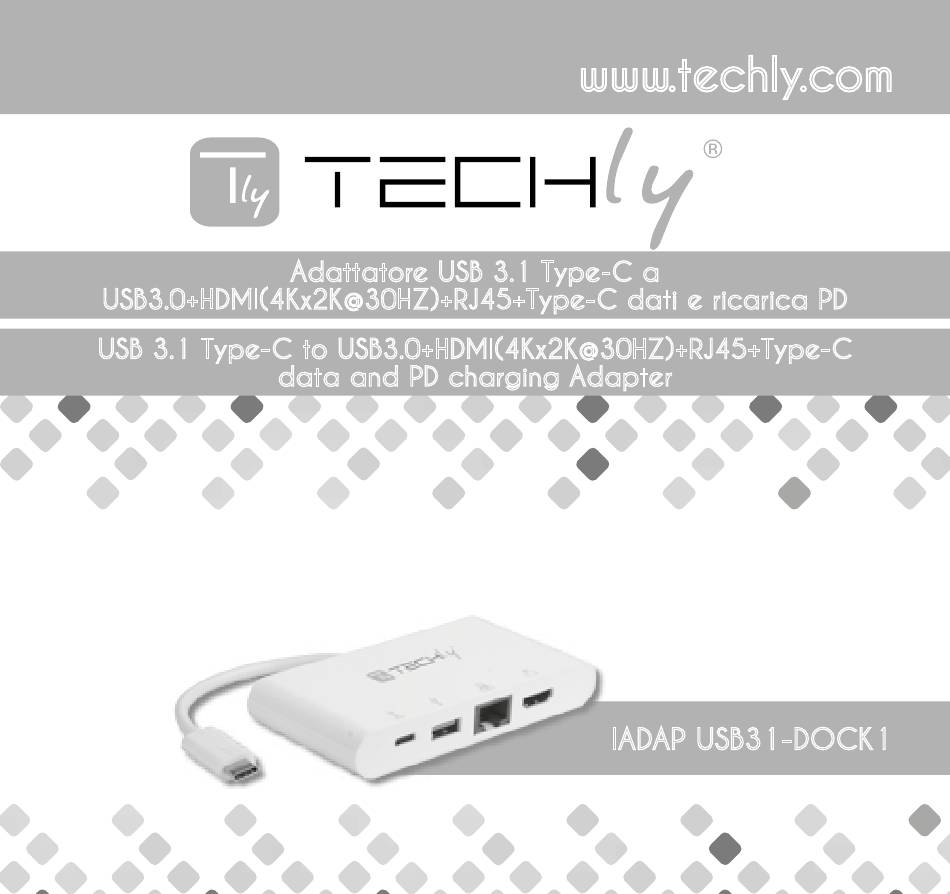

Page 1
Adattatore USB 3.1 Type-C a USB3.0+HDMI(4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD USB 3.1 Type-C to USB3.0+HDMI(4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter Manuale d’istruzione User’s manual IADAP USB31-DOCK1...
Page 2
Adattatore USB 3.1 Type-C a USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD AdAttAtore USB 3.1 type-C A USB3.0+HdMI (4Kx2K@30HZ)+rJ45+type-C dAtI e rICArICA pd Gentile Cliente Grazie per aver acquistato questo prodotto. Per ottenere il massimo delle prestazioni nella salvaguardia della vostra sicurezza, vi consigliamo di leggere con attenzione il presente manuale prima di collegare e mettere in funzione il prodotto.
Page 3
Adattatore USB 3.1 Type-C a USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD VANtAGGI Efficienza di conversione di potenza superiore Efficienza di conversione di potenza superiore significa minore consumo di corrente e minore riscaldamento 98.2%@Vin=5V; 92.5% @Vin=20V Gestione avanzata della corrente Garantisce il funzionamento interrotto dell’USB-A SSD e dell’U Disk quando il vin è...
Page 4
Adattatore USB 3.1 Type-C a USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD • Quando si collega ad un adattatore PD: supporta ricarica PD con potenza fino a 60W (20V/3A) • Quando si collega ad un alimentatore USB-C ordinario: la potenza massima di questa porta dipende dalla potenza fornita dall’alimentatore USB-C collegato • Come porta USB-C downstream (collegamento con periferica USB-C): Supporta trasferimento dati fino a 5Gbps e ricarica per i dispositivi USB–C...
Page 5
Adattatore USB 3.1 Type-C a USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD SpeCIFICHe Connessioni in ingresso e uscita Ingresso USB-C Maschio x1 Uscita HDMI Femmina x1 RJ45X1 USB-C Femmina x1 (per dati e ricarica) USB-A Femmina x1 Risoluzioni Risoluzioni Fino a 4KX2K@30HZ Informazioni ambientali Temperatura d’esercizio Da 0°C a +45°C Umidità...
Adattatore USB 3.1 Type-C a USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD CoNteNUto deLLA CoNFeZIoNe Prima di utilizzare il dispositivo, verificate cortesemente che le seguenti parti siano incluse nella confezione: • Unità principale x1 • Manuale d’istruzione x1 FUNZIoNAMeNto 1) Collegare la porta USB-C maschio di questa unità al Macbook o Chromebook 2) Collegare l’uscita HDMI di questo prodotto all’HDTV con un cavo HDMI 3) Collegare la porta RJ45 di questo prodotto al router Ethernet tramite un...
Adattatore USB 3.1 Type-C a USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C dati e ricarica PD preCAUZIoNI dI SICUreZZA USO PREVISTO Non è consentito l’uso dell’apparecchio in modi diversi da quello indicato nel presente manuale. Utilizzare il prodotto solo in luoghi interni asciutti. Non rispettare le istruzioni e le precauzioni di sicurezza riportate nel presente manuale potrebbe causare incidenti mortali, lesioni e danni a persone e cose.
Page 10
Contattate le autorità locali competenti per ottenere informazioni in merito allo smaltimento corretto della presente apparecchiatura. Con il marchio CE, Techly garantisce che il prodotto è conforme alle ® norme e direttive europee richieste.
Page 11
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter USB 3.1 type-C to USB3.0+HdMI (4Kx2K@30HZ) +rJ45+type-C dAtA ANd pd CHArGING AdApter Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product.
Page 12
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter AdVANtAGeS Higher Power Conversion Efficiency High Power Conversion Efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V More Advanced Power Management The power can guarantee uninterrupted working of USB-A SSD and U Disk when the vin is in 5~20V, so the connected USB device will not get disconnected while plugging in and out the PD Adapter from the Type-C charging port.
Page 13
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter • When connecting PD Adapter: it supports PD Charging with power up to 60W (20V/3A) • When connecting ordinary USB-C Power Adapter: the max power of this port depends on how much power the connected USB-C Power Adapter can supply • As USB-C downstream port (connecting USB-C device): It supports to transmit data up to 5Gbps and charge for the connected USB–C devices (the total output of the USB-C and USB-A port depends on the host PC, eg: USB-A and USB-C share max 1.5A on Macbook, max 900mA on Chromebook USB-A...
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter SpeCIFICAtIoNS Input/Output Connector Input USB-C Male x1 Output HDMI Female x1 RJ45X1 USB-C Female x1 (for data and Charging) USB-A Femalex1 Resolutions Resolutions Up to 4KX2K@30HZ Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature...
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter pACKAGe CoNteNtS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • Main unit x1 • User Manual x1 operAtIoN 1) Connect the USB-C male port of this product to Macbook or Chromebook 2) Connect HDMI output of this product to HDTV with one HDMI cable 3) Connect RJ45 port of this product to Ethernet router via an Ethernet Cable 3) Connect the USB 3.0 output of this product to a USB 3.0/2.0 device with...
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter SAFety preCAUtIoNS INTENDED USE We do not permit using the device in other ways like described in this user’s manual. Use the product only in dry interior rooms. Not attending to these regulations and safety instruction might cause fatal accidents, injuries, and damages to persons and property.
Page 19
This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products. With the CE sign, Techly ensures that the product is conformed to the ®...
Page 20
USB 3.1 Type-C to USB3.0+HDMI (4Kx2K@30HZ)+RJ45+Type-C data and PD charging Adapter www.techly.com...
