Techly IDATA HDMI2-4K2EARC Manual

EN
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.

IMPORTANT SAFETY INSTRUCTION

INTENDED USE

We do not permit using the device in other ways like described in this user's
manual. Use the product only in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal accidents, injuries, and
damages to persons and property. The manufacturer/supplier assumes no liability for
damages caused by failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
equipment if a problem should occur. Do not expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts
which can be swallowed and can injure when used inappropriately! • Please install the
system and devices attached to it in a way that persons cannot be injured, or objects not
be damaged for example by dropping or stumbling. • Please remove the packing materials,
because children may cut themselves on them while playing. Furthermore, there is a risk
of swallowing and inhalation of incidentals and insulating material. • Avoid places with
high temperatures, or humidity, or places which might come into contact with water. Do
not install the product close to openings of air conditioners, or at places with an excessive
amount of dust or smoke. Keeps distance from flammable and explosive devices. • Do not
install the product at places subject to vibration, or oscillation. • Do not modify and alter the
product and any accessories! Do not use any damaged parts. • Keep enough space around
all devices for a good ventilation and free motion and to avoid damages. • Do not plug-in/
out the cables when it is in using.

INTRODUCTION

• This HDMI Splitter allows you to connect a HDMI device and an eARC soundbar to two
outputs, one to eARC TV and one to an audio source.

FEATURES

• Works with SONOS ARC/BOSE 500/BOSE 700 and ANY eARC/ARC AVR and Soundbar
• HDMI 2.0b, HDCP 2.2 compliant, 18 Gbps
• Up to 4K@60Hz RGB/YCBCR 4:4:4 8 bit
• HDR, HDR10, HDR10+, Dolby Vision pass through
• eARC/ARC receiver and transmitter
• eARC/ARC/HDMI audio de-embedded and embedded
• Audio only output for legacy AVR without eARC/ARC feature
• Built-in TMDS equalizer, retiming and driver

PACKAGE CONTENTS

• Main unit *1 • Power supply adaptor *1

INSTALLATION GUIDE

1. Connect the signal source to the HDMI input port using an HDMI cable
2. Connect the eARC soundbar to the eARC input port using an HDMI cable
3. Use the HDMI cable to connect the eARC TV to the HDMI output 1 port
4. Use an HDMI cable to connect the TV to the HDMI output 2 port
5. Connect the power adapter
Insert / Extract cable gently.

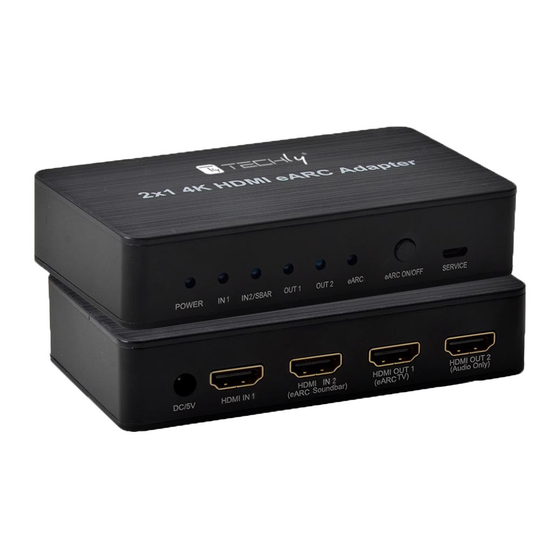

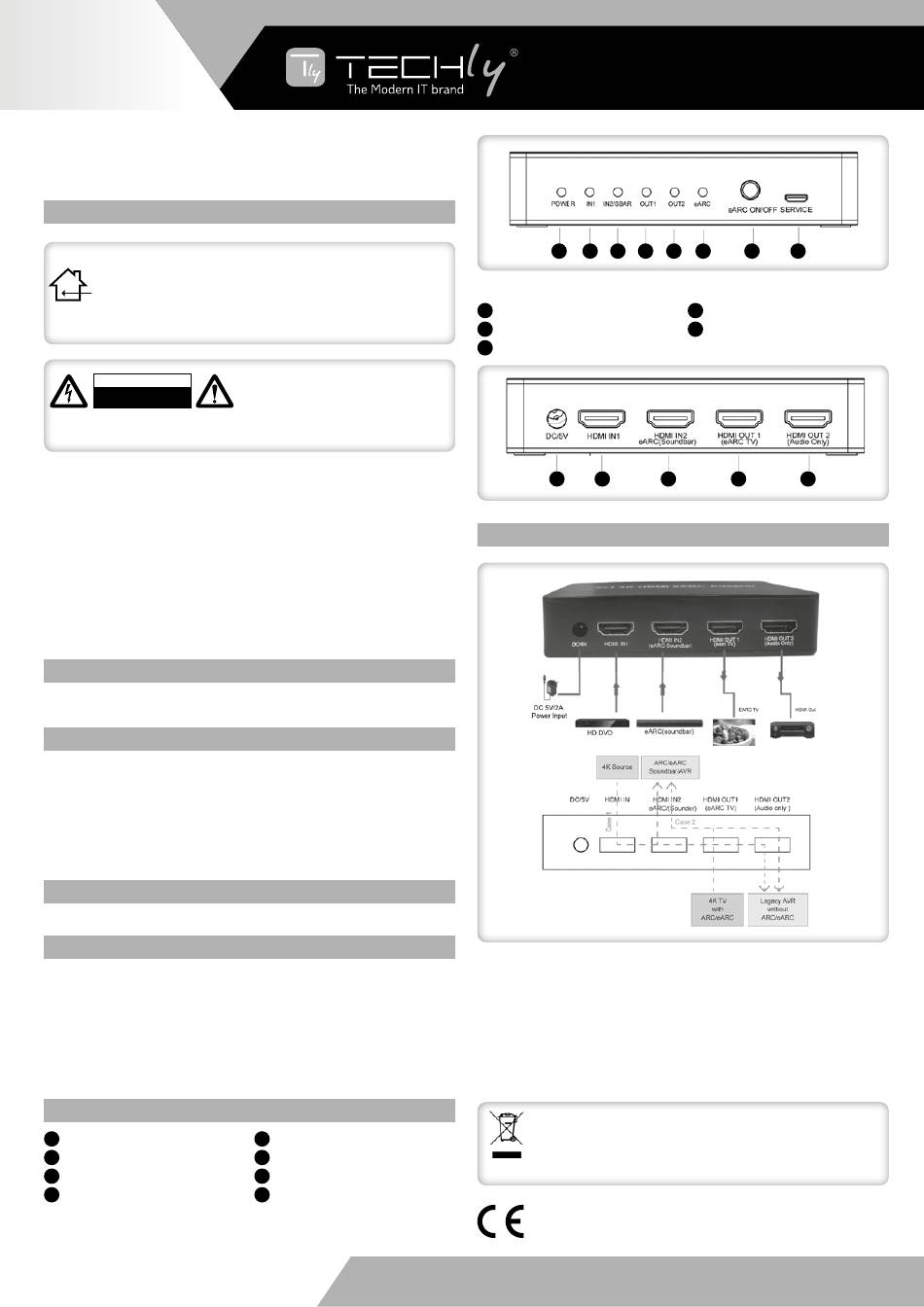

PANEL DESCRIPTION

1 Power LED
2
HDMI Input LED indicators
3 Soundbar LED
4 HDMI out1 LED indicators
WWW.TECHLY.COM
To reduce risk of electric shock, this product
should ONLY be opened by an authorized
technician when service is required.
Disconnect the product from mains and other
• User manual *1
5 HDMI out2 LED indicators
6
eARC/ARC LED indicators
7 eARC ON/OFF selection button
8 USB Upgrade port
2X1 HDMI ADATPER 4K60HZ
1 2 3 4
1
Power Input port
2 HDMI input ports
3 HDMI2/eARC (soundbar) input port
1 2

CONNECTION DIAGRAM

Case 1: 4K source video output to 4K TV, audio can out put to ARC/eARC Soundbar/AVR
and legacy AVR HDMI input
Case 2: TV plays streaming content like Netflix or Roku, TV ARC/eARC audio output ARC/
eARC Soundbar/AVR and legacy AVR HDMI input
Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes and modifications of
the product or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with this
symbol. It means that used electrical and electronic products should not
be mixed with general household waste. There is a separate collections
system for these products in compliance with WEEE directive, otherwise
contaminative and hazardous substances can pollute the environment.
With the CE sign, Techly
®
European standards and directives.
WITH EARC
5 6 7 8
4
HDMI OUT1 (eARC TV)
5 HDMI OUT2 (AUDIO only)
3 4 5
ensures that the product is conformed to the basic
