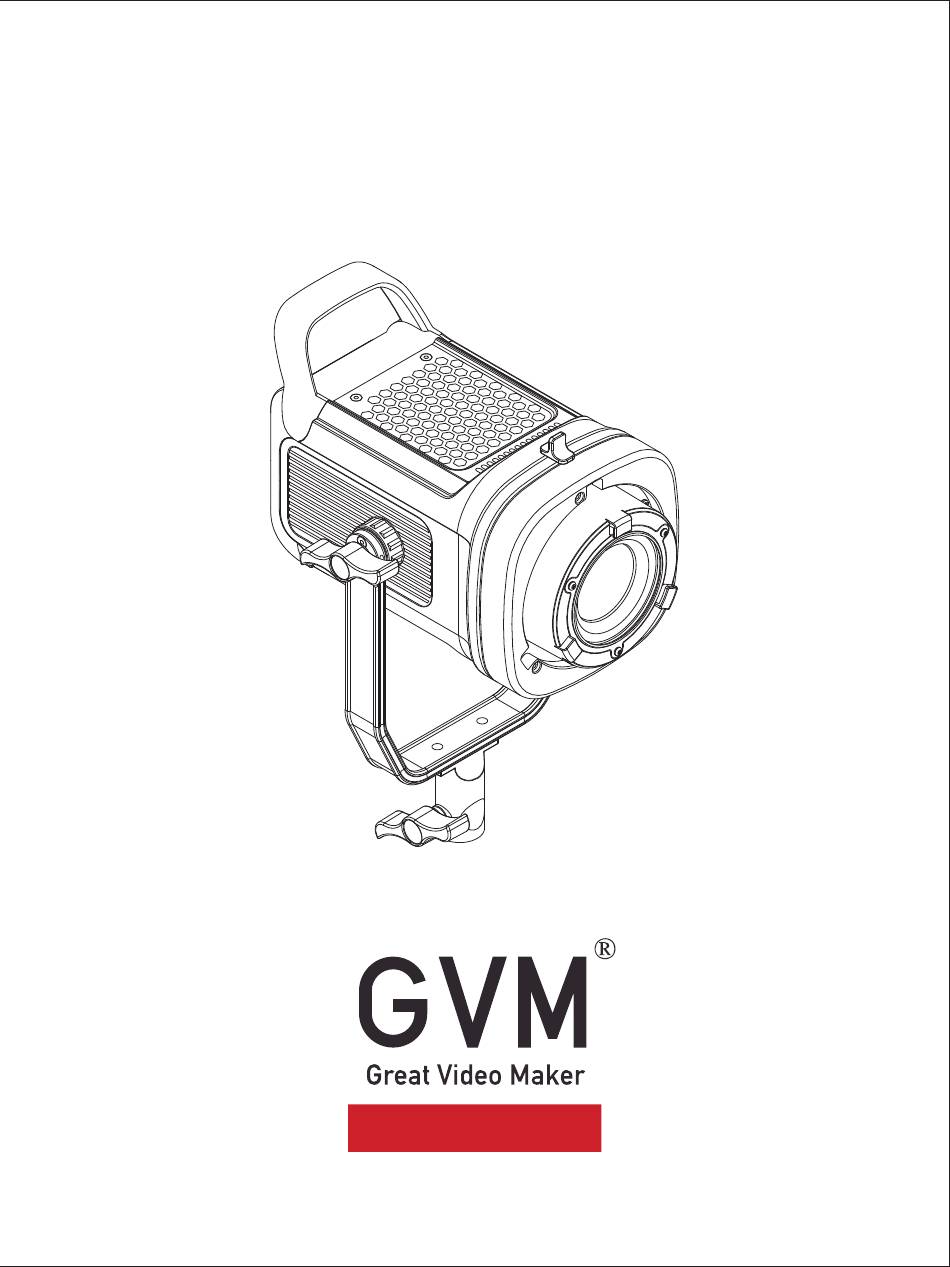

- Page 1 GVM-PR160D...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Diagram --------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~7 Description Of Product Control Keys ----------------------------------------- Page 8 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our "GVM-PR160D”. This product is specially designed for photographers and Videographers. The product usage scenarios are suitable for live broadcast / outdoor / studio photography, etc., and can also be used for YouTube video shooting. -
Page 6: Product Parameter
PRODUCT PARAMETER ◆ Brand : GVM ◆ Product Model : GVM-PR160D ◆ Product Name : Professional Video Light ◆ Product Type : LED COB Light ◆ Features : A Variety Of Light Effects, Modes, High Bright LED Light Beads ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Release Buckle Vents Bowens Mount Angle Fixing Handle COB LED Beads Diffuser Mount U-frame Junior Receiver Light Mount T-shaped Locking Knob Junior Receiver Light Mount LCD Display Compound Button Compound Knob Power Input Port Switch ON/OFF... -
Page 8: Installation Method
INSTALLATION METHOD The light can be attached and fixed on the bracket by rotating the knob clockwise, can be detached by rotating in the counterclockwise direction. Loosen the angle fixing handle, adjust the angle of the spotlight to your needs, and then tighten the angle fixing handle firmly. - Page 9 Insert the bayonet of the diffuser into the bowens mount of the light, and then turn it clockwise. Install and uninstall of standard bowens reflector. Install: Insert the standard Bowens Reflector into the corresponding Bowens mount socket of the light, then turn it clockwise gently. Uninstall: To remove the reflector from the light, pull back the retaining clip and rotate the reflector counterclockwise.
- Page 10 Connect the power cord to supply power.
-
Page 11: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Power input interface. ON/OFF Switch. Composite knob: 1. Short press the knob to switch to the parameter to be adjusted; 2. Press and hold the knob for 2 seconds to enter the wireless channel adjustment; 3. -
Page 12: Function Introduction & Instructions For Use
Prepare two or more camera lights, and set the channel value of all units to the same through the composite knob. Then you can use other GVM lights with "master mode" or the GVM-YK22 remote control, that are also adjusted to the same channel value, you can synchronously control all the lights with the same channel value. -
Page 13: App Control
APP CONTROL APP Download Method (Scan the QR code on the back of the manual to download the APP) Android Device：Official website QR code, Google Play, Huawei Store, etc. iOS Device：App Store Figure 1 Figure 2 Device-adding 1．Before adding a device, please make sure you have turned on your phone’s Bluetooth and network data, accessibility to Bluetooth and network data, then... - Page 14 Figure 5 Account Login ◆ Use e-mail to get the verification code to log in (the first login automatically registers the account). (Figure 5) ◆ There may be a delay in sending the verification code, and the speed of delivery depends on the e-mail server you are using.
-
Page 15: Quick Troubleshooting
QUICK TROUBLESHOOTING Troubleshooting Check List Issues The screen does not Whether the connection between the Make sure the adapter is well connected light up. light and the power supply is secure. with the power plug. Follow these steps: 1. Turn on phone’s Bluetooth and network U n i t c a n n o t b e data function, android devices need to Check if the device is turned on properly... -
Page 16: Use And Preservation
USE AND PRESERVATION Do not place the product in a high humidity, strong electromagnetic field, direct sunlight, or high-temperature environment. If the product will not be used for a long time, please disconnect power . Clean Before cleaning, disconnect the power plug. And use a damp cloth instead of any detergent or soluble liquids to avoid damaging the surface layer. -
Page 17: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... - Page 18 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty.
- Page 19 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
