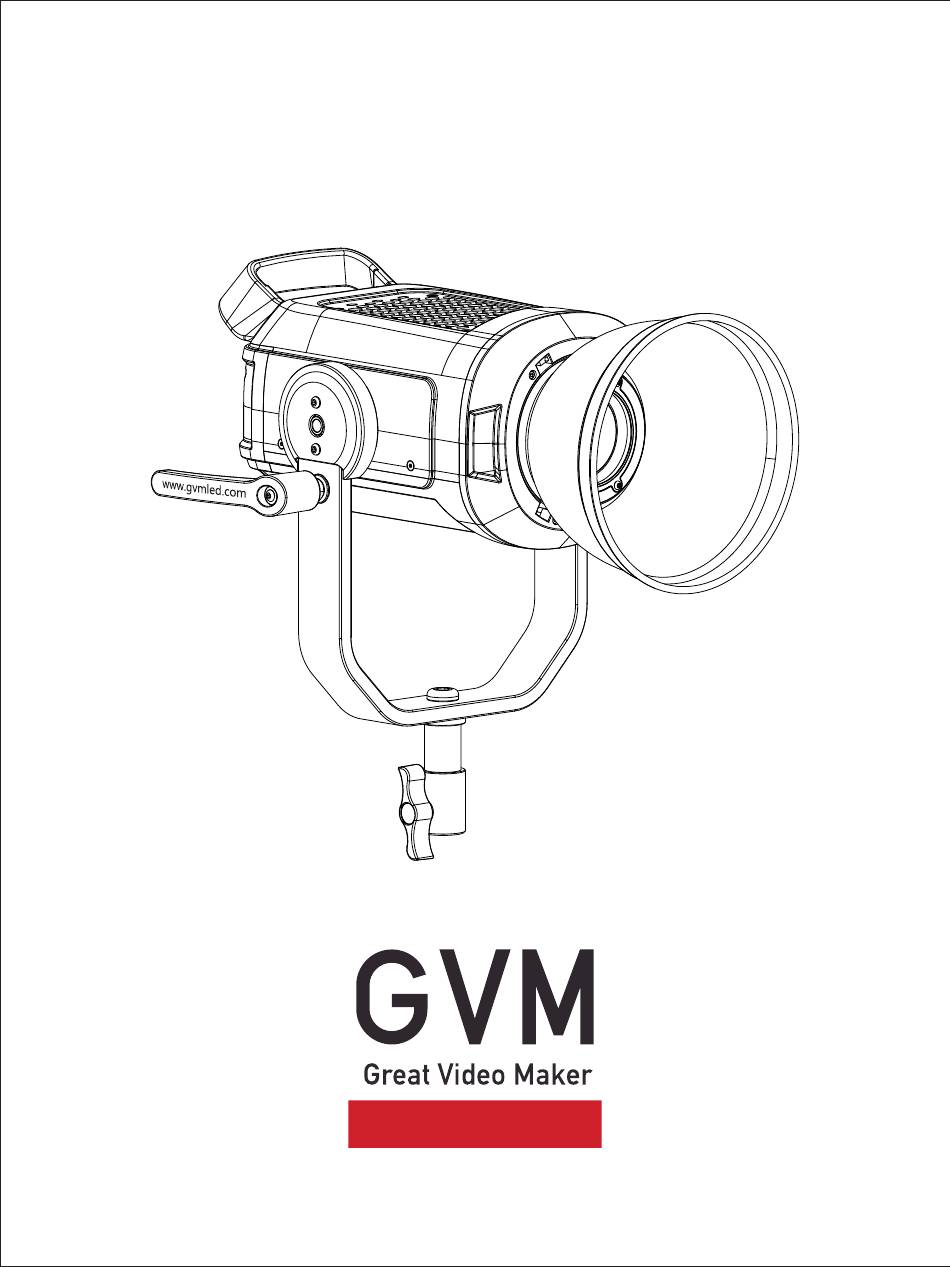

- Page 1 GVM-SD600S-II...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Diagram --------------------------------------------------- Page 5 Installation Method ------------------------------------------------------- Page 6~10 Description Of Product Control Keys --------------------------------------- Page 11 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
2．APP control: This light can be controlled by your IOS and Android smart mobile devices; as well as be group controlled along with other GVM brand devices that support Bluetooth mesh networking. 3．With standard DMX input, a low precision 8bit and a high precision 16bit DMX control can be achieved. -
Page 6: Product Parameter
Product Type : LED COB light ◆ Features : Step-less adjustment, high display index lamp beads ◆ Control Methods : DMX, Wireless remote control, On board control, GVM Mesh Bluetooth APP control. ◆ Light Adjustment Method : Step-less adjustment ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Bowens mount Vents COB light chip Power input connector U-frame Angle locking handle T-Handle / Baby pin Baby pin receiver / mounting screw Mounting column Light Head Cooldown key Return key Display screen Mode key V-mount Battery Menu key plate Knob:... -
Page 8: Installation Method
INSTALLATION METHOD Loosen the light stand fixing knob, attach the light to the light stand as shown below, then tighten the light stand fixing knob. Loosen the angle locking handle, adjust the angle of the spotlight, then tighten the angle locking handle. - Page 9 Insert the standard reflector into the corresponding Bowens mount socket of the light, then turn it clockwise gently. To remove the standard reflector on the light, push the Bowens mount release clip and rotate the reflector counterclockwise to disassemble the standard cover. Attach the quick release control ballast mount onto the light stand as shown in the figure below.
- Page 10 Follow the steps shown in the figure below to install the controller onto the quick release clamp.
- Page 11 As shown in the figure below, connect the head cable from the light to the controller.
- Page 12 There are two power supply method: 1．Use the AC power cord for power supply. 2．Use two V button batteries for power supply. (Batteries must be inserted into both battery slots to provide power, and the power is halved when using batteries.)
-
Page 13: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Display: Display current settings, modes and parameters. Mode key: Press this button to switch into lighting mode. Menu key: press this key to enter the settings menu. Return key: press this key to return to the previous menu. Cooling key: start an instant large volume air cooling until the temperature decreased to a... -
Page 14: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① MENU ： Figure 1 MENU DMX SETTINGS DMX SETTINGS (Figure 1): PROFILES ADDRESS Set the DMX parameters, [ ADDRESS(001-512) ] and configure the mode [ (8bit/16bit) ]. DMX SETTINGS Figure 2 MENU DIM CURVE DIM CURVE (Figure 2): Linear Set the dimming curve, [ Linear / Logarithmic /... - Page 15 ② Lighting ： Lighting Adjusts intensity of the white light. Press the [Mode] button to enter the lighting mode selection → Rotate the [knob] to adjust the brightness level of the white light. ③ External device control in progress ： While using APP/DMX/RF remote control, you can not only adjust External device the brightness level of the light;...
-
Page 16: App Control
APP CONTROL APP Download Method (Scan the QR code on the back of the manual to download the APP) Android Device：Official website QR code, Google Play, Huawei Store, etc. iOS Device：App Store Figure 1 Figure 2 Device-adding 1．Before adding a device, please make sure you have turned on your phone’s Bluetooth and network data, accessibility to Bluetooth and network data, then... -
Page 17: Use And Preservation
Account Login Figure 5 Use e-mail to get the verification code to log in (the first login ◆ automatically registers the account). (Figure 5) There may be a delay in sending the verification code, and ◆ the speed of delivery depends on the e-mail server you are using. -
Page 18: Quick Troubleshooting
QUICK TROUBLESHOOTING Check the product Troubleshooting Issue Whether the connection Make sure the adapter is well between the light and the connected with the power plug. power supply is normal. The indicator does not light up. When using a lithium battery to supply power, make sure Use the product after recharging that the battery does not have... -
Page 19: Packing List
PACKING LIST Name Quantity Notes LED COB Light AC Power Cable Controller head Cable Control Ballast Quick Release Mounting Clap Standard Reflector Spotlight Protective Cover Magic Cable Tie Carrying Case Manual... -
Page 20: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 21: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 22 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
