Summary of Contents for GVM GVM-PL60C

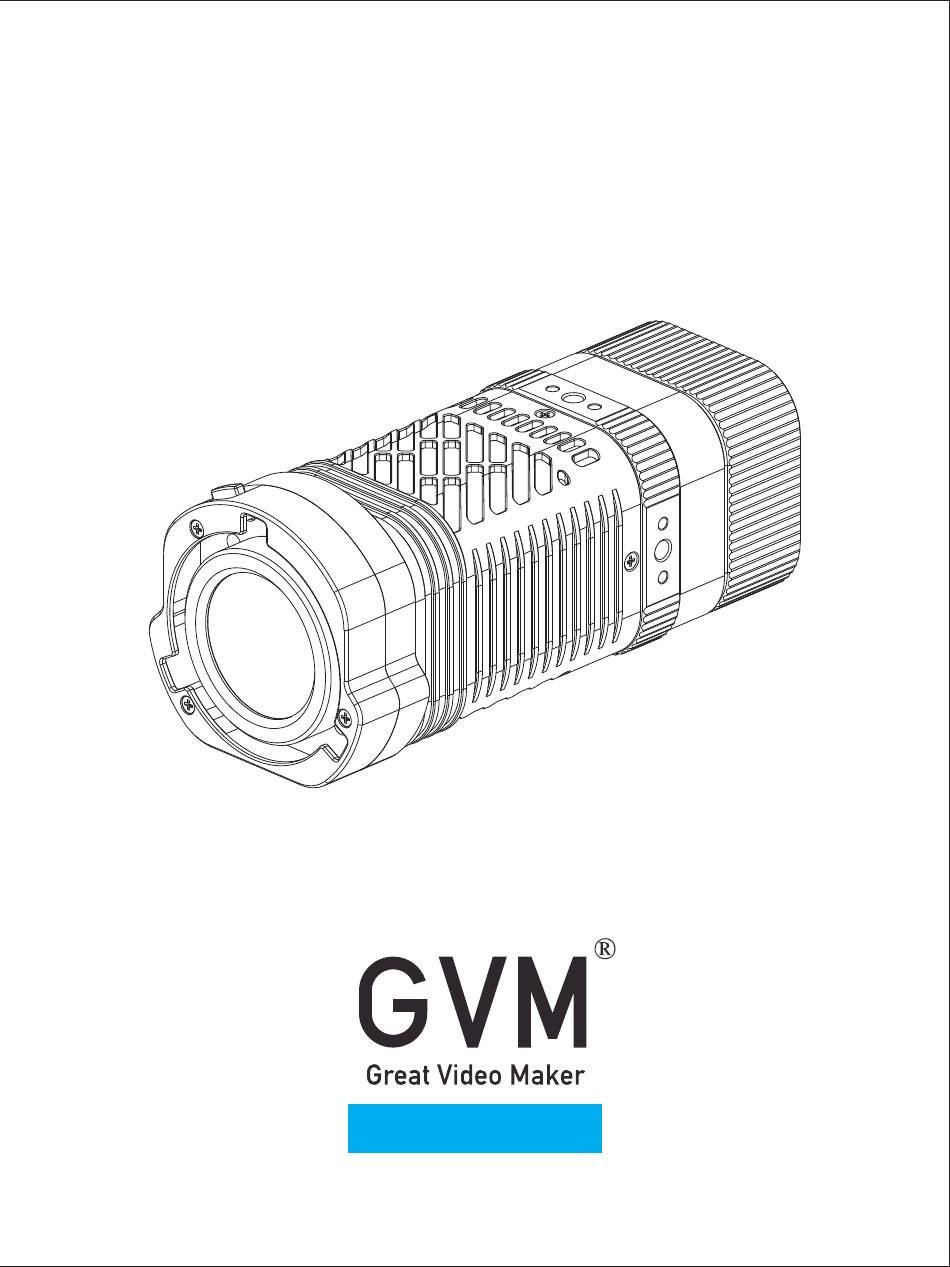

- Page 1 GVM-PL60C...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Precautions -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Product Structure Analysis ---------------------------------------------------- Page 5 Installation Method ----------------------------------------------------------- Page 6 Description Of Product Control Keys ----------------------------------------- Page 7 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our "GVM-PL60C”. This product is specifically designed for photography and videography enthusiast. This product is suitable for use in live stream / outdoor / studio and YouTube shoots. The main features of the product are: 1．It has 6 lighting modes: CCT mode, HSI mode, RGB mode, GEL mode, source mode,... -
Page 6: Product Parameter
PRODUCT PARAMETER ◆ Brand: GVM ◆ Product Model: GVM-PL60C ◆ Product Name: Video Light ◆ Product Type: LED Video Fill Light ◆ Functional Features: Multiple Light Effect Modes, High CRI LED Chips, Waterproof Light Body, Rechargeable battery. ◆ Control Method: On Board Control, APP Control, Bluetooth Mesh Networking ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Display Knob Power Switch DC Input Heat Dissipation And Cooling Vents Bowen's Mount Release Slider 1/4 Thred LED Light Chip INSTALLATION METHOD Product Parts Introduction. Light Bowen's Reflector F750 Battery Battery Power Box Handle... - Page 8 Attach the Bowen's reflector onto the socket of the light accordingly, and then turn it slightly clockwise to lock it in place. Push the release switch back and rotate the Bowen's reflector counterclockwise to remove it from the light. Turn the knob clockwise to fix the lamp on the handle, turn it counterclockwise to remove it.
- Page 9 Two power supply modes are available: 1．Power supply: Connect the DC connector of the power cord to the DC input port of the light for continuous power supply. (Only unplug the DC plug when the light is turned off.) 2．Battery power supply: Attach the battery power supply box onto the handle → Connect the cable on the battery power supply box to the DC input port of the light →...
-
Page 10: Description Of Product Control Keys
Slide the angle adjustment button downward to adjust the angle of the light. Angle adjustment button DESCRIPTION OF PRODUCT CONTROL KEYS ON/OFF key: Press and hold for 2 seconds to turn ON/OFF the light. Display: Shows current settings, modes and parameters. -
Page 11: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① LIGHT: There are 6 lighting modes: CCT, HSI, RGB, GEL, Source, and FX. CCT: Allow you to adjust color temperature and brightness of the light. INT: Short press and rotate the knob to adjust the brightness of the light. - Page 12 Source: Has 12 types of light sources: Tungsten, HMI5600, HMI6000, Studio Lamps, Sodium Lamp, Halogen, Arc Lamp, Candle, Sunset/Sunrise, Daylight, Overcast Sky, CFL Cool White. Source: Short press and turn the knob to select the light source. INT: After selecting the light source, rotate the knob to adjust its brightness.
- Page 13 ④ SETTINGS: The menu setting page includes: system language, product information, temperature detection, and system reset. Language: Supports switching between Chinese and English. Products: Displays the product's firmware version and hardware version information. TEMP: You can check the current operating temperature of the light body.
-
Page 14: App Control
APP CONTROL APP Download Method (Scan the QR code on the back of the manual to download the APP) Android Device：Official website QR code, Google Play, Huawei Store, etc. iOS Device：App Store Figure 1 Figure 2 Device-adding 1．Before adding a device, please make sure you have turned on your phone’s Bluetooth and network data, accessibility to Bluetooth and network data, then... -
Page 15: Account Login
Figure 5 Account Login Use e-mail to get the verification code to log in (the first login ◆ automatically registers the account). (Figure 5) There may be a delay in sending the verification code, and ◆ the speed of delivery depends on the e-mail server you are using. -
Page 16: Quick Troubleshooting
QUICK TROUBLESHOOTING Issue Check the product Troubleshooting When using a lithium battery to The indicator does supply power, make sure that the Use the product after recharging the not light up. battery does not have "low batteries. battery"protection. Follow these steps: 1. -
Page 17: Packing List
PACKING LIST Name Quantity Notes LED Video Light Bowen's Reflector Handle Battery Powered Box NPF F750 Battery Adapter Power Cable Type-c Charging Cable Carring Bag User Manual... -
Page 18: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 19: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 20 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
