THIS APPLIANCE IS MANUFACTURED BY:
AH68-01450K
DIGITAL HOME
THEATER SYSTEM
HT-DB760T
Instruction Manual
COMPACT
COMPACT
DIGITAL AUDIO
DIGITAL VIDEO
V I D E O
TV DVD RECEIVER
OPEN/CLOSE
TV/VIDEO
MODE
DIMMER
DVD
TUNER
AUX
BAND
PL II MODE
SLOW
PL II EFFECT
MO/ST
LSM –
LSM +
RRSS
TUNING/CH
VOLUME
SURR.
PLUS
SUPER 5.1
V-H/P
ENTER
RDS DISPLAY
TA
TEST TONE
PTY–
PTY SEARCH
PTY+
SOUND EDIT
MEMORY
TUNER
SLEEP
CANCEL
ZOOM
LOGO
EZ VIEW
REPEAT
REMAIN
NTSC/PAL

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-DB760T

Summary of Contents for Samsung HT-DB760T

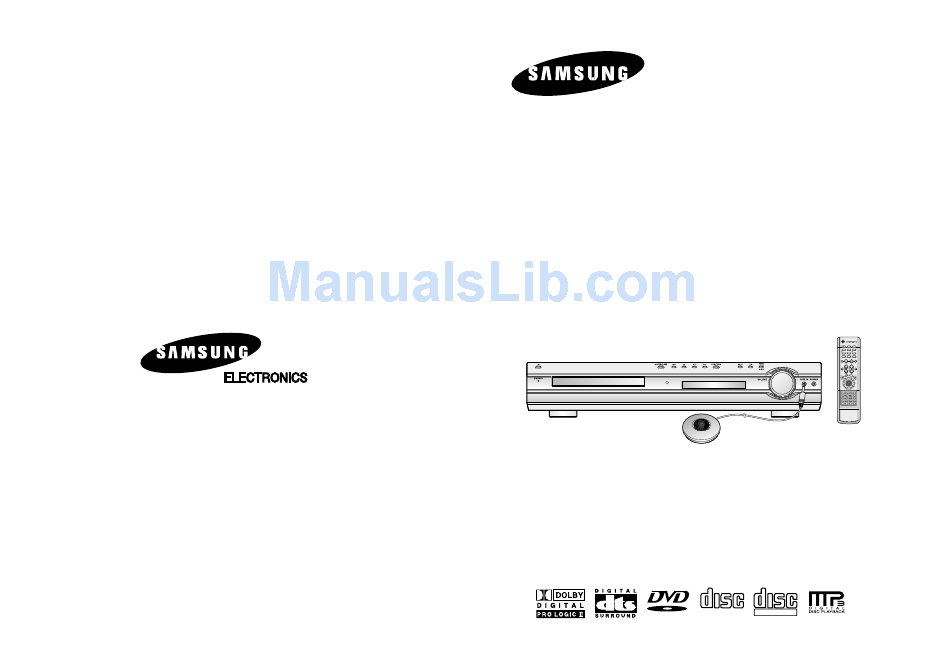

  • Page 1 DIGITAL HOME THEATER SYSTEM HT-DB760T THIS APPLIANCE IS MANUFACTURED BY: Instruction Manual TV DVD RECEIVER OPEN/CLOSE TV/VIDEO MODE DIMMER TUNER BAND PL II MODE SLOW PL II EFFECT MO/ST LSM – LSM + RRSS TUNING/CH VOLUME SURR. PLUS SUPER 5.1...

  • Page 2: Safety Warnings

    Safety Warnings Precautions Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUKT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

  • Page 3: Table Of Contents

    Customized TV Screen Display Convenient Functions .................................59 Operating the TV with the Remote Control .........................61 The HT-DB760T allows you to select your favorite image during JPEG, DVD, or VCD playback and Before Calling for Service ..............................63 Cautions on Handling and Storing Discs ..........................65 set it as your background wallpaper.

  • Page 4: Notes On Discs

    Notes on Discs Disc Recording Format CD-R Discs • Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discs may not be playable. • Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable. DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital •...

  • Page 5: Description

    Description —Front Panel— —Rear Panel— S-Video Output Connector Function button If the TV is equipped with an S-Video input Rear Reflecting Surround System button Play/Pause ( ) button Video Output Connector connector (S-VIDEO IN), connect it to the Power ( ) button Live Surround Mode button Stop ( ) button...

  • Page 6: Remote Control

    Description —Remote Control— Insert Remote Batteries TV indicator Remove the battery Insert two 1.5V AAA Replace the battery TV DVD RECEIVER DVD POWER button DVD RECEIVER indicator cover on the back of batteries, paying cover. MODE button TV/VIDEO, DIMMER button OPEN/CLOSE TV/VIDEO MODE...

  • Page 7: Connecting To The Speakers

    Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. • Connect the front/rear, center, and subwoofer speakers to the speaker terminals on the back of the main unit. Front/Rear Speaker (L) Front/Rear Speaker (R) Green...

  • Page 8: Connecting The Video To Tv

    Connecting the Video to TV Connecting the Antennas If AM reception is poor, connect an outdoor AM antenna(not supplied). AM Loop Antenna (supplied) VOLTAGE SELECTOR Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

  • Page 9: Connecting To External Components

    Connecting to External Components Connecting to an External Digital Component Connecting to an External Analog Component Example: Digital signal components such as a DVD or CD Recorder. Example: Analog signal components such as a VCR, Camcorder, and TV. VOLTAGE SELECTOR Audio Cable If the external VOLTAGE...

  • Page 10: Before Using Your Dvd Player

    To resume playback, press PLAY/PAUSE • If pressed twice, “STOP” is displayed, and if • By default, the remote control is set to work with Samsung button again. PLAY/PAUSE ( ) button is pressed, playback starts TVs. See page 61 for more information on the operation of from the beginning.

  • Page 11: Displaying Disc Information

    Displaying Disc Information Checking the Remaining Time You can view playback information on the disc on the TV screen. Press INFO button. Press the REMAIN button. • Each time the button is pressed, the display changes as follows: • For checking the total and remaining time of a title or chapter being played.

  • Page 12: Fast/Slow Playback

    Fast/Slow Playback Skipping Scenes/Songs Fast Playback Briefly press Press and hold • Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will • Each time the button is held down during playback, be played.

  • Page 13: Repeat Playback

    Repeat Playback A-B Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press Cursor button Press REPEAT button. Press INFO button to move to REPEAT twice. • Each time the button is pressed during playback, the repeat playback mode changes as follows: PLAYBACK display.

  • Page 14: Angle Function

    Angle Function Zoom Function This function allows you to view the same scene in different angles. This function allows you to enlarge a particular area of the displayed image. Zoom (Screen Enlarge) Function Press Cursor , , Press Cursor Press ENTER Press ZOOM , buttons to Press INFO button.

  • Page 15: Selecting Audio/Subtitle Language

    Moving Directly to a Scene/Song Selecting Audio/Subtitle Language Audio Language Selection Function Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor Press Cursor , Press INFO button or numeric buttons to select buttons or numeric Press INFO button.

  • Page 16: Using Disc Menu

    Using Disc Menu Using the Title Menu You can use the menus for the audio language, subtitle language, profile, etc. For DVDs containing multiple titles, you can view the title of each movie. DVD menu contents differ from disc to disc. Depending on the disc, this function may either not work at all or may work differently.

  • Page 17: Setting The Language

    Setting the Language OSD language is set to English by default. Press Cursor Press Cursor Press Cursor Press ENTER Press MENU button to select the button to select the button to move to button. button. desired item and then ‘Setup’ and then desired language and then press ENTER button.

  • Page 18: Setting Tv Screen Type

    Setting TV Screen type Depending on your TV type (Wide Screen TV or conventional 4:3 TV), you can select the TV's aspect ratio. Adjusting the TV Aspect Ratio (Screen Size) Press Cursor button to move to Press MENU button. The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high ‘Setup’...

  • Page 19: Setting Parental Controls (Rating Level)

    Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. Press Cursor Press Cursor , button Press Cursor Enter the password button to move to to select the desired rating button to move to Press MENU button.

  • Page 20: Setting The Password

    Setting the Password You can set the password for the Parental (rating level) setting. Press Cursor button to Press Cursor Press ENTER Enter the password move to ‘PASSWORD’ button to move to Press MENU button. and then press button. and then press ENTER ‘Setup’...

  • Page 21: Setting The Wallpaper

    TV screen followed by you see an image you like. • "LOGO COPIED". The wallpaper is changed. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. LOGO COPYING your wallpaper. PAUSE PAUSE...

  • Page 22: Setting The Speaker Mode

    Setting the Speaker Mode Setting the Test Tone Signal outputs and frequency responses from the speakers will automatically be adjusted Press the Test Tone to check the speaker connections and to adjust the speaker levels. according to your speaker configuration and whether certain speakers are used or not. Press Cursor Press Cursor Press Cursor...

  • Page 23: Setting The Delay Time

    Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. Press Cursor Press Cursor button Press Cursor button , buttons to move Press Cursor...

  • Page 24: Setting The Audio Quality

    Setting the Audio Quality You can adjust the balance and level for each speaker. When manually adjusting with the SOUND EDIT button When adjusting the audio quality using the setup screen Method 2 Method 1 Adjusting Front Speaker Balance Adjusting Rear Speaker Balance Adjusting Center Speaker Level Press Cursor button to move to...

  • Page 25: Setting The Drc (Dynamic Range Compression)

    Setting the DRC (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. Press Cursor Press Cursor Press Cursor button to move to button to move to Press MENU to adjust ‘DRC’...

  • Page 26: Dolby Pro Logic Ii Mode

    Dolby Pro Logic II Mode Dolby Pro Logic II Effect You can select the desired Dolby Pro Logic II audio mode. This function works only in Dolby Pro Logic MUSIC mode. Press PL II EFFECT button Press PL II MODE Press PL II MODE button.

  • Page 27: Setting The Rrss(Rear Reflecting Surround System)

    Setting the RRSS (Rear Reflecting Surround System) • By setting up the RRSS function just once, the speaker distance, channel level, and rear sound This drawing is provided for illustration reflection effect are automatically set and create an optimal listening environment. purposes only and the actual appearance •...

  • Page 28: Rear Reflecting Surround System

    Rear Reflecting Surround System Live Surround Mode You can use the magic sound field to listen to 2-channel stereo sources in realistic You can enjoy realistic sound reproduction that approximates 5.1-channel surround 5.1-channel surround sound. sound using the front speakers. Each time you press the LSM + To cancel the rear Press the RRSS button...

  • Page 29: Surround Plus / Virtual Headphone

    SURROUND PLUS / Virtual Headphone SUPER 5.1 The Surround Plus function works when the headphone is not connected, and the You can reproduce 2-channel sources, such as VCDs, CDs, and radio broadcasts, Magic Headphone function works when the headphone is connected. in realistic 5.1-channel surround sound.

  • Page 30: Listening To Radio

    Listening to Radio Presetting Stations You can store up to: You can listen to the chosen band (FM, AM broadcast stations) by using either • FM Frequency Modulation 15 FM stations the automatic or manual tuning operation. 15 MW stations •...

  • Page 31: Convenient Functions

    Convenient Functions Sleep Timer Function Adjusting Display Brightness You can set the time that the DVD player will shut itself off. You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing. Press SLEEP button.

  • Page 32: Operating The Tv With The Remote Control

    The remote control may not work on some brands of TVs. Also some operations may not be possible depending on your brand of TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.

  • Page 33: Before Calling For Service

    Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom...

  • Page 34: Cautions On Handling And Storing Discs

    Cautions on Handling and Storing Discs Specifications Small scratches on the disc may reduce sound and picture quality or cause breaks in playback. Be especially careful not to scratch discs when handling them. Power Consumption 160W 9.0kg Weight Handling discs Dimensions (W x H x D) 438 x 75 x 368 mm Do not touch the playback side of the disc.

  • Page 35: Notes On Terminology

    Notes on Terminology Memo Recorded onto some DVD discs are scenes which have been simultaneously shot from a number ANGLE of different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes.
