Samsung HT-DB1750 Instruction Manual
Digital home cinema system
Hide thumbs
Also See for HT-DB1750:
- Manual del instrucción (34 pages) ,
- Service manual (95 pages) ,
- Instruction manual (72 pages)
Table of Contents
Advertisement
Quick Links
THIS APPLIANCE IS MANUFACTURED BY:
REV:01
AH68-01286K

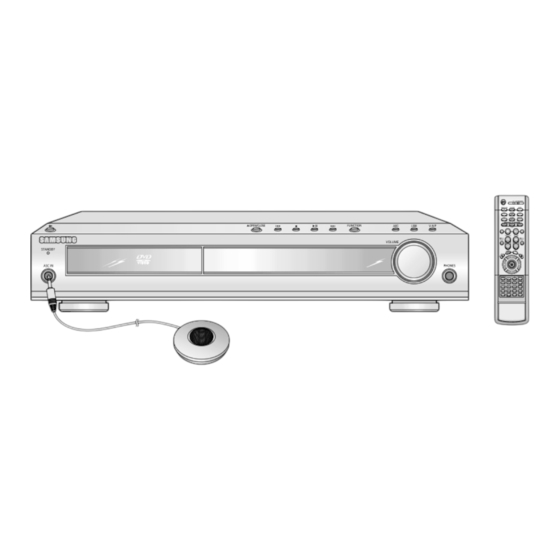

DIGITAL HOME
CINEMA SYSTEM
HT-DB750
HT-DB1750
HT-DB1850
Instruction Manual
ASC
COMPACT
COMPACT
DIGITAL AUDIO
DIGITAL VIDEO
V I D E O
TV DVD RECEIVER
OPEN/CLOSE
TV/VIDEO
MODE
DIMMER
DVD
TUNER
AUX
BAND
ASC
SLOW
SUB TITLE
MO/ST
LSM
MUSIC
MOVIE
LSM
V-H/P
SUPER5.1
V-H/P
TUNING/CH
VOLUME
PL II
PL II
MODE
EFFECT
ENTER
RDS DISPLAY
TA
TEST TONE
PTY–
PTY SEARCH
PTY+
SOUND EDIT
TUNER
MEMORY
SLEEP
CANCEL
ZOOM
LOGO
EZ VIEW
REPEAT
REMAIN
NTSC/PAL
Advertisement
Table of Contents
Related Manuals for Samsung HT-DB1750
Summary of Contents for Samsung HT-DB1750
- Page 1 THIS APPLIANCE IS MANUFACTURED BY: REV:01 Instruction Manual AH68-01286K DIGITAL HOME CINEMA SYSTEM HT-DB750 HT-DB1750 HT-DB1850 TV DVD RECEIVER OPEN/CLOSE TV/VIDEO MODE DIMMER TUNER BAND SLOW SUB TITLE MO/ST MUSIC MOVIE V-H/P SUPER5.1 V-H/P TUNING/CH VOLUME PL II PL II MODE EFFECT ENTER...
-
Page 2: Safety Warnings
Safety Warnings Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUKT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. -
Page 3: Table Of Contents
Features Multi-Disc Playback & AM/FM Tuner The HT-DB750/HT-DB1750/HT-DB1850 combines the convenience of multi-disc playback capability, including DVD, VCD, CD, MP3-CD, CD-R, CD-RW, and DVD-RW, with a sophisticated AM/FM tuner, all in a single player. Built-in 5.1-Channel Amplifier The HT-DB750/HT-DB1750/HT-DB1850 comes with a built-in 5.1-channel amplifier, allowing you to enjoy dynamic sound. -
Page 4: Notes On Discs
Notes on Discs DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these V I D E O realistic effects in the home, as if you were in a movie theater or concert hall. DVD players and the discs are coded by region. -
Page 5: Description
Description —Front Panel— Play/Pause ( Standby indicator Stop ( ) button Power ( ) button Open/Close button Auto Sound Calibration Input Jack Disc Tray DOLBY DIGITAL indicator CHAPTER indicator PRGM indicator LINEAR PCM indicator DSP indicator TITLE indicator PBC indicator DTS Disc indicator System Status Display PRO LOGIC II indicator... -
Page 6: Remote Control
Description —Remote Control— TV DVD RECEIVER DVD POWER button TV/VIDEO, DIMMER button OPEN/CLOSE TV/VIDEO MODE OPEN/CLOSE button DIMMER TUNER BAND SLOW SUB TITLE Auto Sound Calibration button MO/ST SUPER 5.1 button SUPER5.1 MUSIC MOVIE V-H/P Music Sound Field button/ Magic Headphone button TUNING/CH VOLUME PL II... -
Page 7: Connecting The Speakers
Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Position of the DVD Player Selecting the Listening Position • Place it on a stand or cabinet shelf, or under The listening position should be located about 2.5 to 3 the TV stand. -
Page 8: Connecting The Fm And Am(Mw) Antennas
Connecting the FM and AM If AM reception is poor, connect an outdoor AM antenna(not supplied). If FM reception is poor, connect an outdoor FM antenna (not supplied). ANTENNA FM Antenna (supplied) FM antenna connection 1. Connect the FM antenna supplied to the FM 75 1. -
Page 9: Connecting External Components
Connecting External Components Connecting an External Digital Component Example: Digital signal components such as a DVD or CD Recorder. Optical Cable (not included) The AC Cord must be plugged into an appropriate socket. Before plugging your system into an AC outlet, you must check the voltage. -
Page 10: Before Using Your Dvd Player
VOLUME, TV/VIDEO, and Numeric (0-9) buttons. be the same as the video format of your TV. • By default, the remote control is set to work with Samsung TVs. See page 61 for more information on the operation of the remote control. -
Page 11: Displaying Disc Information
Displaying Disc Information You can view playback information on the disc on the TV screen. Press INFO button. • Each time the button is pressed, the display changes as follows: Display disappears Display disappears • What is a Title? A movie contained in a DVD disc. •... -
Page 12: Fast/Slow Playback
Fast/Slow Playback Fast Playback Press and hold • Each time the button is held down during playback, Slow Playback Press SLOW button. • Each time the button is pressed during playback, the playback speed changes as follows: • Note Reverse slow playback does not work with VCDs. Briefly press •... -
Page 13: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: JPEG To Select a Repeat Playback Mode in the Disc Information Screen Press INFO button twice. -
Page 14: Angle Function
Angle Function This function allows you to view the same scene in different angles. Press Cursor Press INFO button. button to move to ANGLE display. Press Cursor buttons or numeric buttons to select the desired angle. • Each time the button is pressed, the angle changes as follows: •... -
Page 15: Selecting Audio/Subtitle Language
Selecting Audio/Subtitle Language Audio Language Selection Function Press Cursor Press INFO button buttons or numeric twice. buttons to select the desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (KOREAN, ENGLISH, JAPANESE, etc.) is selected each time the button is pressed. -
Page 16: Using Disc Menu
Using Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. Press Cursor Press MENU buttons to move to button. ‘DISC MENU’ and then press ENTER button. •... -
Page 17: Setting The Language
Setting the Language OSD language is set to English by default. Press MENU button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press Cursor Press ENTER button to move to button. ‘Setup’... -
Page 18: Setting Tv Screen Type
Setting TV Screen type Press MENU button. Press Cursor button to move to ‘TV DISPLAY’ and then Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Adjusting the TV Aspect Ratio (Screen Size) Press Cursor button to move to The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high... -
Page 19: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. Press MENU button. Press Cursor Press Cursor button to move to button to move to ‘PARENTAL’ and then ‘Setup’... -
Page 20: Setting The Password
Setting the Password You can set the password for the Parental (rating level) setting. Press MENU button. Press Cursor Press Cursor move to ‘PASSWORD’ button to move to and then press ENTER ‘Setup’ and then button. press ENTER button. button to Press ENTER Enter the password and then press... -
Page 21: Setting The Wallpaper
PAUSE Press Cursor button to move to ‘USER’ and then press ENTER button. Select this to set the Samsung Logo image as your wallpaper. JPEG Press LOGO Press MENU button. button. • "LOGO COPYING" will be displayed on the TV screen followed by "LOGO COPIED". -
Page 22: Setting The Speaker Mode
Setting the Speaker Mode Press Cursor button to move to Press MENU button. ‘Audio’ and then press ENTER button. Press Cursor In the Speaker , buttons to move to the desired Setup, press the speaker and then ENTER button again. press ENTER button. -
Page 23: Setting The Delay Time
Setting the Delay Time Press MENU button. Setting up the Speaker Delay Time When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center Speaker and Surround Speakers. -
Page 24: Setting The Audio Quality
Setting the Audio Quality You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen Method 1 Press MENU button. Press Cursor button to move to ‘SOUND EDIT’ and then press ENTER button. Press RETURN button to return to the previous level. -
Page 25: Setting The Drc (Dynamic Range Compression)
Setting the DRC (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. Press MENU button. Press Cursor Press Cursor button to move to button to move to ‘DRC’ and then ‘Audio’... -
Page 26: Auto Sound Calibration Setup
Auto Sound Calibration Setup * This function is available only for DVD/CD playback. Auto Sound Calibration By setting the auto sound calibration function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create 5.1-channel sound field optimized for the listener's environment. -
Page 27: Magic Sound Field Mode
• To purchase headphones, please • Each time the button is pressed, the contact the nearest Samsung selection alternates between Electronics Customer Center. VIRTUAL ON and VIRTUAL OFF. V-H/P • Do not listen at extremely high volume levels when using headphones. -
Page 28: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode. Press PL II MODE button. • Each time the button is pressed, the mode changes as follows. LINEAR PCM TITLE PBC CHAP PRGM RDS RT TUNED MPEG-2 AAC MPEG LINEAR PCM... -
Page 29: Listening To Radio
Listening to Radio You can listen to the chosen band (FM, MW, LW broadcast stations) by using either the automatic or manual tuning operation. Remote Control Unit Tune in to the Press TUNER/ BAND button. desired station. • Automatic Tuning 1 When is pressed, a The selection toggles back... -
Page 30: Convenient Functions
Convenient Functions Sleep Timer Function You can set the time that the DVD player will shut itself off. Press SLEEP button. • "SLEEP" will be displayed. Each time the button is pressed the preset time changes as follows: 10 OFF. TITLE CHAP PRGM RDS RT To confirm the sleep timer setting, press SLEEP button. -
Page 31: Operating The Tv With The Remote Control
TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. TV Brand Code List Brand... -
Page 32: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy Disc tray does not open. -
Page 33: Cautions On Handling And Storing Discs
Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause breaks in playback. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. -
Page 34: Notes On Terminology
HT-DB1750 5.1ch speaker system Speaker system Front/Center/Rear speaker Impedance 6 x 5 Frequency range 150Hz~20KHz Output sound pressure level 85dB/W/M Rated input Maximum input 172W Front 115 x 1307 x 110 mm Dimensions (W x H x D) Rear 115 x 1252 x 110 mm Center 370 x 144 x 110 mm Weights...
