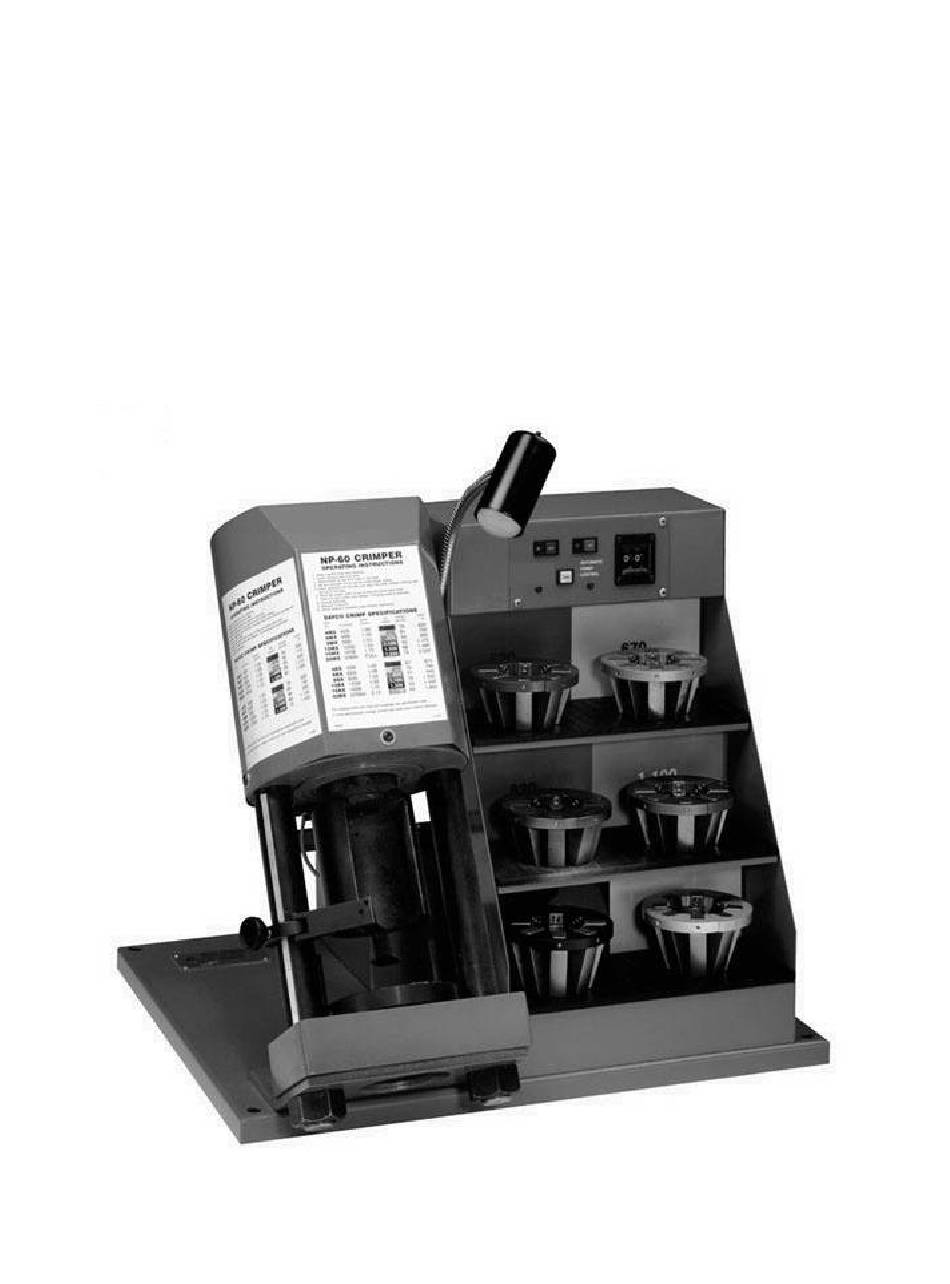

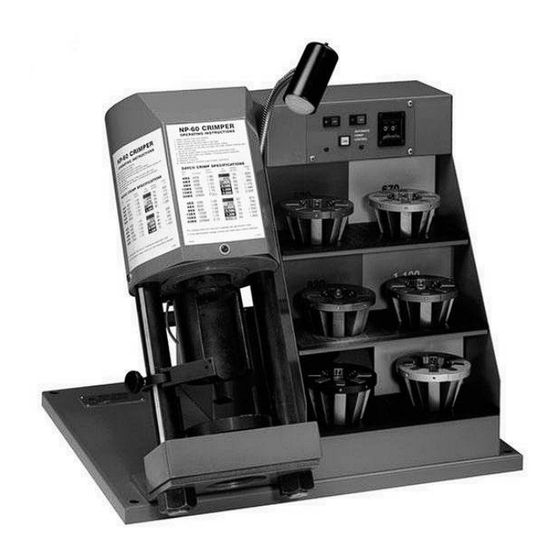

- Page 1 NP60 OPERATORS MANUAL...
-
Page 2: Installation
10 feet in length and be made of 12 gauge wire and be properly grounded. Set-up The NP60 Crimper is fully assembled, calibrated and ready to use. By following these few steps you will be ready to crimp. Check the oil in the pump reservoir to insure it is full of oil. - Page 3 HOSE PREPARATION specifications and enter this number on the Select hose and coupling to be assembled. thumb wheel of the Automatic Crimp Control. Cut hose to proper length. The hose cut length is Be aware that the settings are approximate determined by subtracting the cut-off factor for due to manufacturing tolerances.
- Page 4 One-Piece Coupling with Crimp Location Check for correct alignment of die set. Improper Markings seating or overlapping of dies will result in Many couplings are provided with a knurl around the damaged dies. circumference of the ferrule. This knurl can be used for setting the length of the crimp on the coupling.
- Page 5 The higher the thumb wheel number, the tighter specifications. Compare readings with NP60 the crimp. Crimp Specification Guide allowing a crimp length The lower the thumb wheel number, the looser the tolerance of +/- .010"...
- Page 6 Consider this as notice to the change in calibration methods for the above three machines. The EC30, NP60, and WB60 are obsolete and no longer in production, therefore the literature in the field will not be updated to reflect this change. Please retain this letter for your records and attach it to the instruction manual and any other place where the calibration method for the machine is posted.
- Page 7 CALIBRATION...
- Page 9 DIE SETS FOR NP60 CRIMPER...
- Page 10 LIMITED WARRANTY NP60 is warranted to be free from defects in material and workmanship under normal operating conditions and recommended usage for a period of ninety (90) days from date of delivery. Any product which is shown to be defective shall be replaced or repaired free of charge or extended a credited refund of the original acquisition cost to purchaser.
