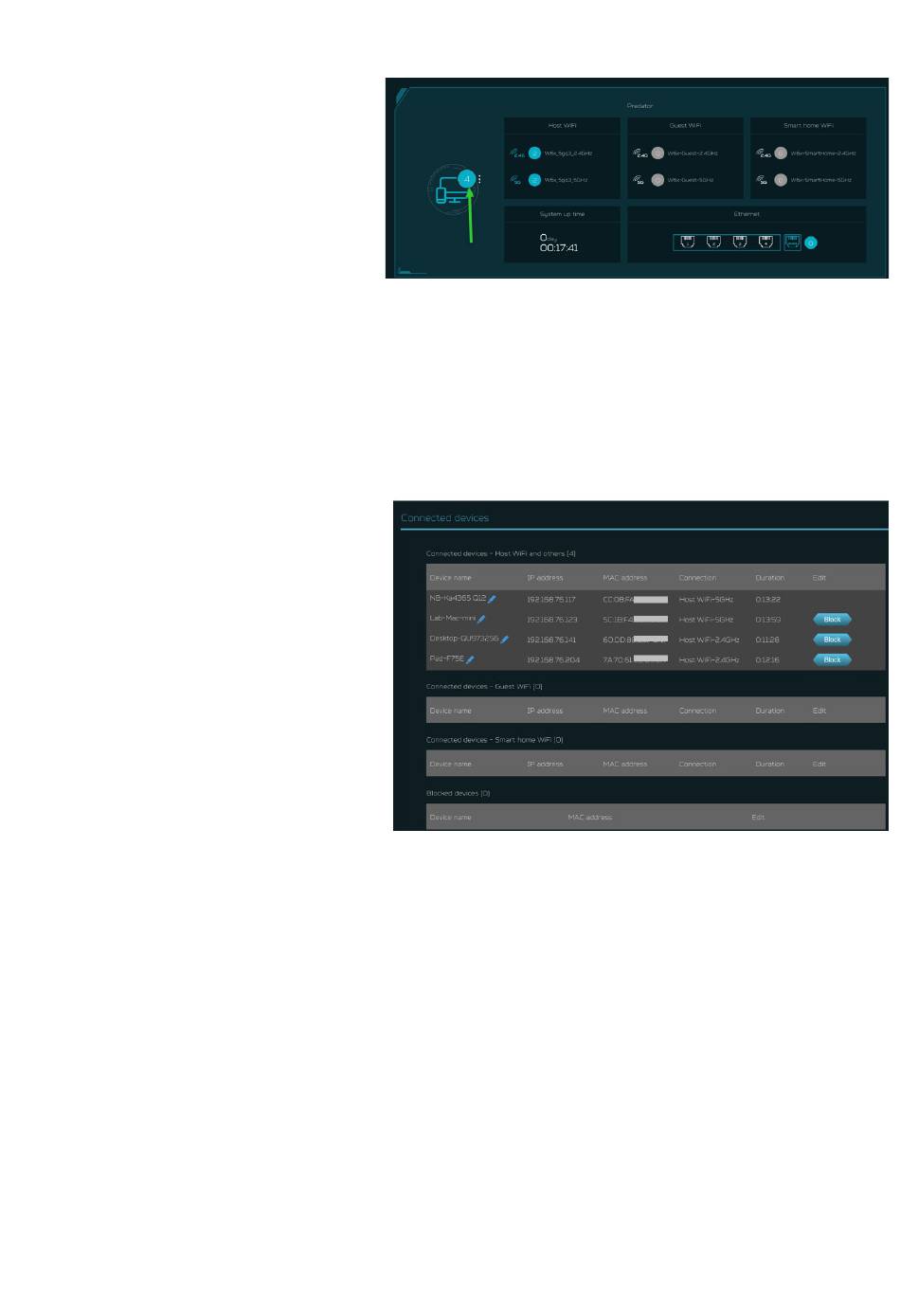

WiFi Status: shows number of
wireless client devices connected
with 2.4GHz and 5GHz bands.
LAN Status: quickly indicates the
status of LAN ports. Predator
Connect W6x has one WAN port,
one Game port and three LAN ports
i.e. LAN 1, LAN 2, LAN 3.
The "icon" (at the left) represents
the number of devices connected
to the W6x router. Clicking on this
icon will display the table shown below.
System Up time: shows system
up time since last reboot.
Connected Devices: shows
how many client devices are
connected with your Predator
Connect W6x through WiFi or LAN.
You can also modify the device
name by clicking on the pencil icon.
This tab displays client device name,
IP address allocated by the router,
MAC address of the device, mode of
connection (whether the device is
connected with router through
Ethernet or WiFi), and duration of
device connectivity with the router.
You can even block the device from
accessing the Internet by clicking
on "block" button.
