Lan - Acer Predator Connect W6x User Manual

6

. LAN

LAN status

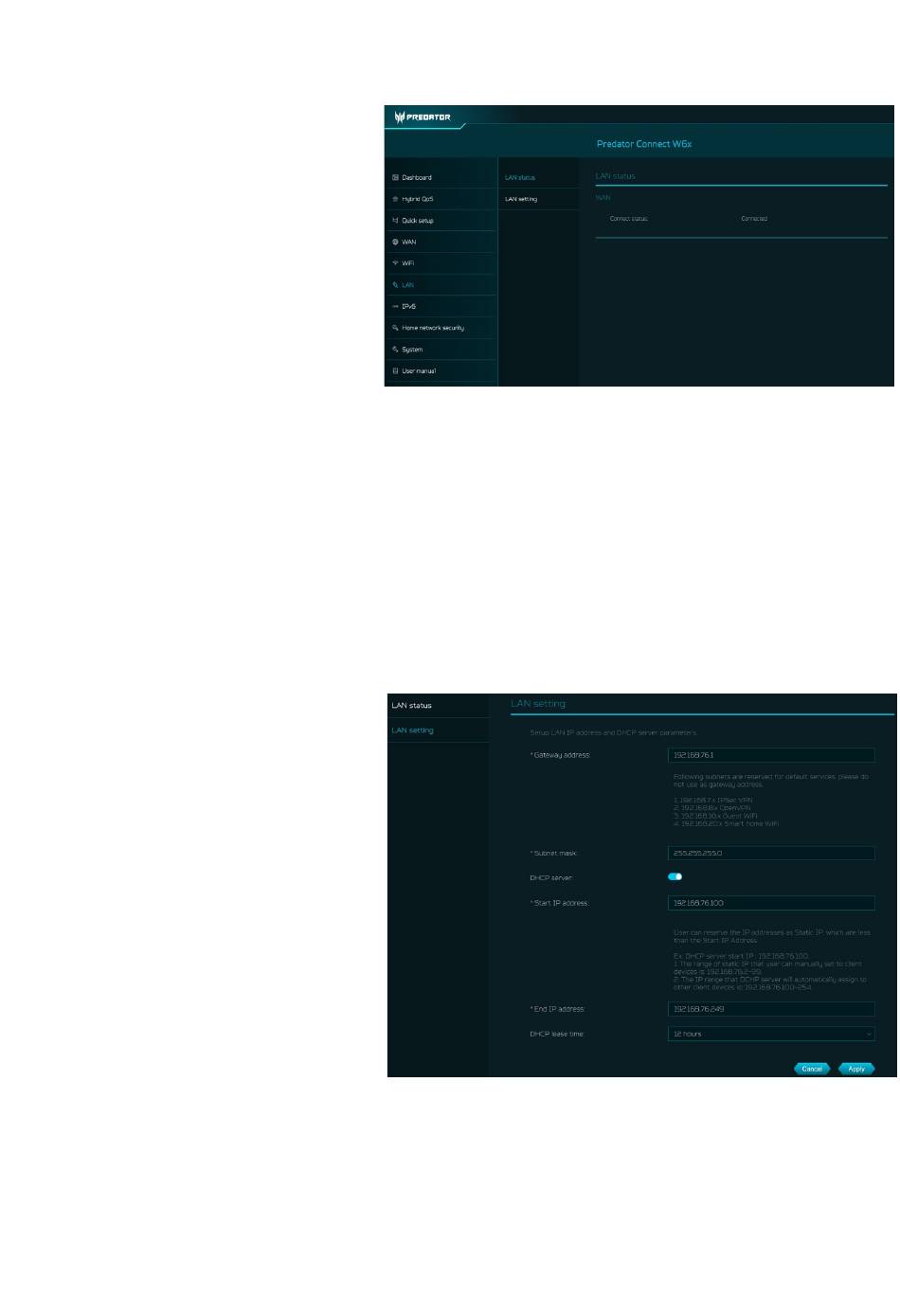

In this page, the LAN Status
section provides a comprehensive
overview of both WAN and LAN
connections. This section displays key
information about the status
and connectivity of your network.
WAN Status: Shows the status
of the Wide Area Network (WAN)
connection. It includes details such as
the IP address and MAC address
assigned to the WAN interface.
If the WAN is connected, you will see
the current IP address.
LAN Status: Provides information about
the Local Area Network (LAN)
connections. It displays the IP address
and MAC address for each device
connected to the LAN ports.
.
LAN Setting
This tab allows you to setup LAN
IP gateway address with an option
to enable or disable DHCP server
feature.
You can enter/edit gateway
address and subnet mask.
DHCP server provides and assigns
IP addresses,
default gateways and other
network parameters to client
devices. DHCP server can be
enabled or disabled as per the
network requirement.
Following subnets are reserved for
default services. Please do not use
as gateway address.
1. 192.168.7.x (IPsec VPN)
2. 192.168.8.x
3. 192.168.10.x
4. 192.168.20.x
(Open VPN)
(Guest WiFi)
(Smart Home WiFi)
