Stihl FSE 52 Manual

Symbols used with warnings in the text

This symbol indicates dangers that can cause serious injuries or death.

• The measures indicated can avoid serious injuries or death.

NOTICE
This symbol indicates dangers that can cause damage to property.

• The measures indicated can avoid damage to property.

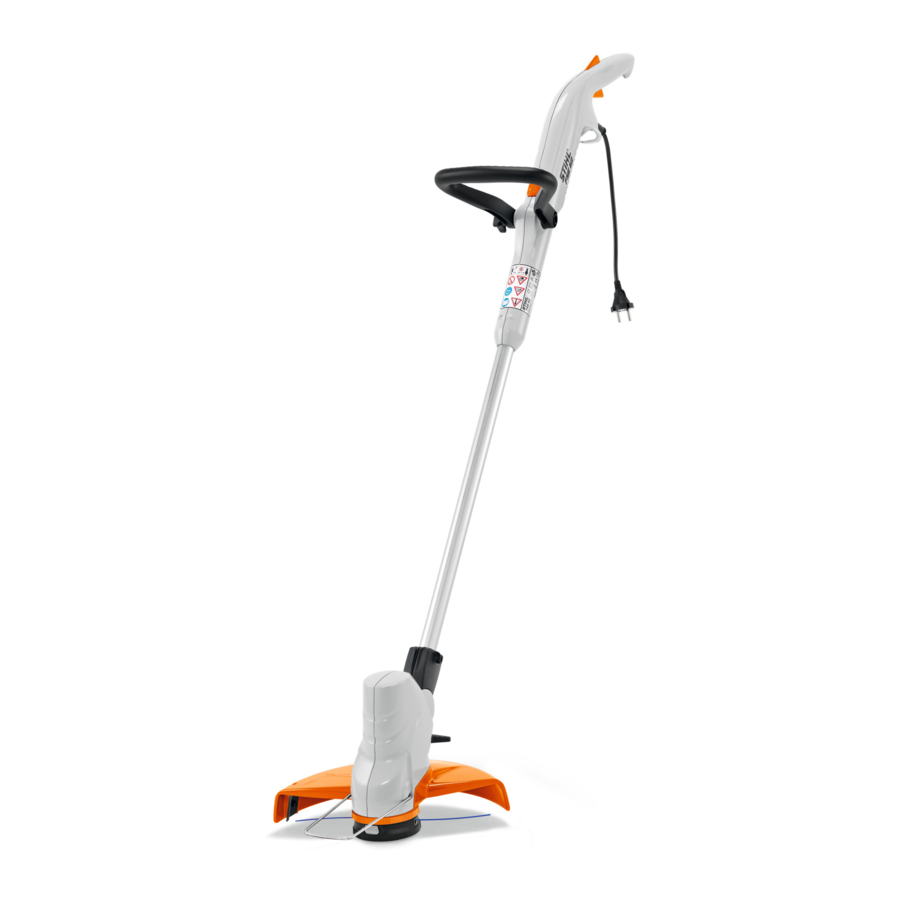

Overview

Main Unit

1. Trigger
   The trigger switches the motor on and off.
2. Appliance Plug
   Connects connecting cable to extension cable.
3. Control Handle
   For operating, holding and controlling the trimmer.
4. Connecting Cable
   Connects trimmer to appliance plug.
5. Trigger Lockout
   Unlocks the trigger.
6. Star Knob Nut
   Secures loop handle to shaft.
7. Lock Button
   Locks the shaft at the required length.
8. Loop Handle
   For holding and controlling the trimmer.
9. Shaft
   Connects all components.
10. Bump Guard
    Helps protect objects from contact with the cutting attachment.

# Rating Label with Serial Number

Deflector and Cutting Attachments

Trimmer with fanwheel

1. Line Limiting Blade
   Trims nylon lines to correct length.
2. Mowing Head
   Holds the nylon lines.
3. Fanwheel
   Cools the electric motor.
4. Deflector
   Protects user from flying debris and contact with the cutting attachment.

Trimmer without fanwheel

1. Deflector
   Protects user from flying debris and contact with the cutting attachment.
2. Line Limiting Blade
   Trims nylon lines to correct length.
3. Mowing Head
   Accommodates the nylon lines.
4. Mowing Line
   The mowing lines cut grass.

Symbols

Meanings of symbols that may be on the trimmer:

	This symbols indicates that the length of the shaft is adjustable.
	This symbols indicates that the control handle can be rotated 90°.
	Guaranteed sound power level according to directive 2000/14/EC in dB(A) in order to make sound emissions of products comparable.

Safety Precautions

Warning Symbols

Meanings of warning signs on the trimmer:

	Observe safety notices and take the necessary precautions.
	Wear safety glasses.
	If the connecting cable or extension cable is damaged: Disconnect the plug from the wall outlet.
	Wait until the cutting attachment comes to a complete stop.
	Protect the trimmer from rain and dampness.
	Maintain safe distance.

Intended Use

The STIHL FSE 52 trimmer is designed for mowing grass.
The trimmer must not be used in the rain.

• Using the trimmer for purposes for which it is not designed may result in serious or fatal injuries and damage to property.
  • Use the trimmer with an extension cable.
  • Use the trimmer as described in this instruction manual.

The Operator

• Users who have had no instruction cannot recognize or assess the risks involved in using the trimmer. The user or other persons may sustain serious or fatal injuries.
  • Read, understand and save the instruction manual.
• If the trimmer is passed on to another user: Always give them the instruction manual.
• Make sure the user meets the following requirements:
  • The user must be rested.
  • The user must be in good physical condition and mental health to operate and work with the trimmer. If the user's physical, sensory or mental ability is restricted, he or she may work only under the supervision of or as instructed by a responsible person.
  • The user is able to recognize and assess the risks involved in using the trimmer.
  • The user must be of legal age or is being trained in a trade under supervision in accordance with national rules and regulations.
  • The user has received instruction from a STIHL servicing dealer or other experienced user before working with the trimmer for the first time.
  • The user must not be under the influence of alcohol, medication or drugs.
• If you have any queries: Contact a STIHL servicing dealer for assistance.

Clothing and Equipment

• Objects can be thrown through the air at high speed during operation. This can result in personal injury.
  • Wear close-fitting safety glasses. Suitable safety glasses that have been tested and labeled in accordance with EN 166 or national standards are available from retailers.

  • Wear a face shield.
  • Wear long trousers made of durable material.
• Dust can be whipped up during operation: Whipped up dust can damage the respiratory passages and cause allergic reactions.
  • Wear a respirator.
• Inappropriate clothing can snag on wood, brush or the trimmer. Not wearing personal protective equipment may result in serious injury.
  • Wear snug-fitting clothing.
  • Do not wear a scarf or jewelry.
• The user can come into contact with the rotating cutting attachment during operation. This can result in serious injuries.
  • Wear footwear made of durable material.
  • Wear long trousers made of durable material.
• The user can come into contact with the cutting attachment or line limiting blade during cleaning and maintenance work. This can result in personal injury.
  • Wear work gloves made of durable material.
• Wearing unsuitable footwear may cause you to slip or stumble. This can result in personal injury.
  • Wear sturdy enclosed footwear with non-slip soles.

Product

• Bystanders, children and animals are not aware of the dangers of the trimmer or flying debris. Bystanders, children and animals may be seriously injured and damage to property may occur.
  • Do not allow bystanders, children or animals within 15 meters of the work area.

  • Maintain a clearance of 15 meters from objects.
  • Do not leave the trimmer unattended.
  • Make sure that children cannot play with the trimmer.
• The trimmer is not waterproof. Working in the rain or a damp location may result in an electric shock. This can result in injuries to the user and may damage the trimmer.
• Do not work in the rain or a damp location.
• Electrical components of the trimmer can produce sparks. Sparks may cause a fire or an explosion in an easily combustible or explosive environment. This can result in serious or fatal injuries and damage to property.
• Do not work in an easily combustible or explosive environment.
• Persons may trip over the extension cable. This can result in injuries and may damage the trimmer.
  • Lay the extension cable flat on the ground and make sure it is easily visible.

Safe Condition

Device

The trimmer is in a safe condition if the following points are observed:

• The trimmer is not damaged.
• The extension cable and its plug are not damaged.
• The trimmer is clean and dry.
• The controls function properly and have not been modified.
• A combination of cutting attachment and deflector recommended in this instruction manual is mounted.
• Cutting attachment and deflector are properly mounted.
• Only original STIHL accessories designed for this trimmer are fitted.
• Accessories are properly mounted.

• If components do not comply with safety requirements, they will no longer function properly and safety devices may be rendered inoperative. This can result in serious or fatal injuries.
  • Work only with an undamaged trimmer.
  • Work only with an undamaged extension cable and an undamaged plug.
  • If the trimmer is dirty or wet: Clean the trimmer and allow it to dry.
  • Never attempt to modify your trimmer. Exception: Mounting one of the combinations of cutting attachment and deflector recommended in this instruction manual.
  • If the controls do not function properly: Do not use your trimmer.
  • Never mount metal cutting attachments.
  • Only fit original STIHL accessories designed for this trimmer.
  • Mount the cutting attachment and deflector as described in this instruction manual.
  • Mount accessories as described in this instruction manual or the instructions supplied with the accessory.
  • Never insert objects in the trimmer's openings.
  • Replace worn or damaged labels.
  • If you have any queries: Contact a STIHL servicing dealer for assistance.

Deflector

The deflector is in a safe condition if the following points are observed:

• The deflector is not damaged.
• The line limiter blade is correctly installed.

• If the product does not comply with safety requirements, components will no longer function properly or safety devices may be rendered inoperative. This can result in serious injuries.
  • Work only with an undamaged deflector.
  • Work with a correctly installed line limiter blade.
  • If you have any queries: Contact your STIHL servicing dealer.

Mowing Head

The mowing head is in a safe condition if the following points are observed:

• The mowing head is not damaged.
• The mowing head is not jammed.
• The mowing lines are properly installed.

• If they are in an unsafe condition, parts of the mowing head or mowing lines may come off and be thrown at high speed. This can result in serious injuries.
  • Work only with an undamaged mowing head.
  • Never use metal elements in place of the nylon mowing lines.
  • If you have any queries: Contact your STIHL servicing dealer for assistance.

Operation

• The user cannot concentrate on the work in certain situations. The user may stumble, fall and be seriously injured.
  • Work calmly and carefully.
  • If light and visibility are poor: Do not use your trimmer.
  • Operate the trimmer alone.
  • Keep the cutting attachment close to the ground.
  • Watch out for obstacles.
  • Stand on the ground while working and keep a good balance.
  • If you begin to feel tired: Take a break.
• The rotating cutting attachment can cut the user. This can result in serious injuries.
  • Do not touch the rotating cutting attachment.
  • If the cutting attachment is blocked by an object: Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug. Then remove the object causing the blockage.
• If the behavior of the trimmer changes during operation or feels unusual, it may no longer be in a safe condition. This can result in serious injuries and damage to property.
  • Stop work, disconnect extension cable's coupling from trimmer's plug and contact your STIHL servicing dealer for assistance.
• Trimmer vibrations may occur during operation.
  • Wear gloves.
  • Take regular breaks.
  • If signs of circulation problems occur: Seek medical advice.
• If the cutting attachment makes contact with a foreign object during operation, the object or parts of it may be thrown at high speed. This may result in personal injuries and damage to property.
  • Clear away all foreign objects from the work area.

Note that the cutting attachment continues to rotate for a short period after you release the trigger. This can result in serious injuries.

• Wait until the cutting attachment comes to a complete stop.

Connecting to Power Supply

Contact with live components may occur for the following reasons:

• The connecting cable or extension cable is damaged.
• Connecting cable plug or extension cable is damaged.
• Wall outlet is not properly installed.

• Contact with live components can result in an electric shock. This can result in serious or fatal injuries.
  • Check that the connecting cable, extension cable and their plugs are not damaged.

If the connecting cable or extension cable is damaged:

• Do not touch damaged areas.
• Disconnect the plug from the wall outlet.
• Never touch the connecting cable, extension cable or their plugs with wet hands.
• Insert the plug of the connecting cable or extension cable in a properly installed fused wall outlet with ground contact.
• Connect the trimmer via a ground fault circuit interrupter (30 mA, 30 ms).

• A damaged or unsuitable extension cable can cause an electric shock. This can result in serious or fatal injuries.
  • Use an extension cable with the correct wire gauge, see "Specifications"
  • Use a splash-proof extension cable approved for outdoor use.
  • Use an extension cable with the same specifications as the trimmer's connecting cable, see "Specifications"

• Overvoltage can occur in the trimmer if the line voltage and/or frequency are incorrect during operation. This can damage the trimmer.
  • Make sure the line voltage and frequency agree with the data on the trimmer's rating label.
• If several electric power tools are connected to a multiple socket, electrical components may be overloaded during operation. The components may overheat and cause a fire. This can result in serious or fatal injuries and damage to property.
  • Connect the trimmer to a separate wall outlet.
  • Do not connect the trimmer to a multiple socket.
• A carelessly laid connecting or extension cable can be damaged and cause others to trip or fall. This can result in injuries and may damage the connecting cable or extension cable.
  • Position the connecting and extension cables so that there is no risk of contact with the cutting attachment.
  • Position and mark connecting cable and extension cable so they do not represent a trip hazard.
  • Position the connecting and extension cables so that they are not under tension or entangled.
  • Position the connecting and extension cables so that they cannot be damaged, kinked, pinched or chafed.
  • Protect the connecting cable and extension cable from heat, oil and chemicals.
  • Lay the connecting and extension cables on a dry surface.
• The extension cable becomes hot during operation. If the heat cannot dissipate, it may cause a fire.
  • If you use a cable drum: Unwind the extension cable to its full length.

Transporting

• The trimmer may turn over or shift during transport. This may result in personal injuries and damage to property.
  • Disconnect extension cable's coupling from trimmer's plug.
  • Secure the trimmer with lashing straps, belts or a net to prevent it turning over and moving.

Storing

• Children are not aware of and cannot assess the dangers of a trimmer and can be seriously injured.
  • Disconnect extension cable's coupling from trimmer's plug.
  • Store the trimmer out of the reach of children.
• Dampness can corrode the electrical contacts on the trimmer and metal components. This can damage the trimmer.
  • Disconnect extension cable's coupling from trimmer's plug.
  • Store the trimmer in a clean and dry condition.

Cleaning/Maintenance and Repairs

• The trimmer may be switched on unintentionally if the trimmer remains connected to the power supply during cleaning, maintenance or repair operations. This can result in serious injuries and damage to property.
  • Disconnect extension cable's coupling from trimmer's plug.
• Aggressive cleaning agents, a water jet or pointed objects can damage the trimmer, deflector, cutting attachment and the cutting attachment. If the trimmer, deflector and cutting attachment are not cleaned correctly, components may no longer function properly or safety devices may be rendered inoperative. This can result in serious injuries.
  • Clean the trimmer, deflector and cutting attachment as described in this instruction manual.
• If the trimmer, deflector and cutting attachment are not serviced or repaired correctly, components may no longer function properly or safety devices may be rendered inoperative. This can result in serious or fatal injuries.
  • Do not attempt to service or repair the trimmer, deflector, cutting attachment or battery.
  • If the trimmer, deflector or cutting attachment require servicing or repairs: Contact a STIHL servicing dealer for assistance.

Preparing the Unit for Operation

Perform the following steps before starting work:

• Make sure the following components are in a safe condition:
  • Trimmer and connecting cable, see "Safe Condition"
  • Deflector, see "Safe Condition"
  • Mowing head, see "Safe Condition"
• Clean the trimmer, see "Cleaning the Product".
  • Mount the deflector, see "Mounting the Deflector".
  • Fit spool when using trimmer without fanwheel, see "Mounting and Removing the Mowing Head".
  • Fit spool when using trimmer with fanwheel, see "Mounting and Removing the Mowing Head".
  • Mount the loop handle, see "Mounting the Loop Handle".
  • Adjust length of shaft, see "Adjusting Length of Shaft".
  • Adjust the loop handle, see "Adjustng the Loop Handle".
  • Connect trimmer's plug to an extension cable and the extension cable's plug to a convenient wall outlet.
  • Check the controls, see "Checking the Controls".
  • If you cannot carry out the above steps: Do not use your trimmer and contact a STIHL dealer for assistance.

Assembling the Product

Mounting the Deflector

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.

The line limiting blade (1) is already installed in the deflector (2) and must not be removed.

• Push the deflector (2) into the guides on the housing as far as stop.
  The deflector (2) is tight against the housing.
• Insert and tighten down the screws (3) firmly.

The deflector (2) must not be removed again.

Mounting and Removing the Mowing Head

Mounting the Mowing Head

Trimmer with fanwheel

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Fit the fanwheel (2) on the shaft (3) with fan blades facing down.
  If the fanwheel is not fitted, the motor will not be cooled properly and it will not be possible to remove the mowing head.
• Hold fanwheel (2) steady with one hand.
• Fit the mowing head (1) on the shaft (3) and screw it on counterclockwise.

Trimmer without fanwheel
The trimmer comes with the AutoCut 2-2 mowing head already mounted. The spool can be fitted by the user.

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Place spool in a container filled with water for 12 to 24 hours before installing.
  This makes the nylon mowing lines supple.
• Thread the ends of the nylon lines (4) from the spool (2) through the openings (1) in the mowing head (5).
• Insert the spool (2) in the mowing head (5).
• Fit the cover (7) on the mowing head (5) so that its tabs (3) line up with the openings (6) in the mowing head (4).
• Push the cover (7) onto the mowing head (5) as far as stop.
  The tabs (3) engage audibly.

Removing the Mowing Head

Trimmer with fanwheel

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Hold fanwheel (2) steady with one hand.
• Unscrew the mowing head (1) counterclockwise.
• Remove the fanwheel.

Trimmer without fanwheel
The trimmer comes with the AutoCut 2-2 mowing head already mounted and cannot be removed by the user. The spool can be removed by the user.

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Press in the tabs (1) and remove the cover (3).
• Remove the spool (2).

Mounting the Loop Handle

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Line up the loop handle (2) so that the recess for the star knob nut (1) is on the right of the control handle and the openings in the loop handle (2) are facing the operator.
• Ease the ends of the loop handle (2) apart and push it onto the control handle until it engages in position.
• Insert the screw (3) through the hole.
• Fit the star knob nut (1) and tighten it down.

The loop handle (2) must not be removed again.

Adjusting the Unit for User

Adjusting Length of Shaft

The length of the shaft can be adjusted to suit the height and reach of the user.

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Hold the shaft firmly.
• Depress lock button (1) and hold it in that position.
• Pull or push the control handle (2) to the required position.
• Release the lock button (1).
• Move the control handle (2) back and forth until it engages.

Adjusting Angle of Control Handle

The control handle can be set to two positions (0° and 90°).

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Hold the shaft firmly.
• Depress lock button (1) and hold it in that position.
• Turn the control handle (2) 90° on the shaft.
• Release the lock button (1).
• Move the control handle (2) back and forth until it engages.

Adjusting the Loop Handle

The loop handle can be set in different positions to suit the height and reach of the user.

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Loosen the star knob nut (1).
• Swing the loop handle (2) to the required position.
• Tighten down the star knob nut (1) firmly.

Connecting to Power Supply

• Insert the plug (1) into the extension cable coupling (2).


The strain relief (cable retainer) protects the connecting cable from damage.

• Make a loop in the extension cable.
• Pass the loop (3) through the opening (4).
• Slip the loop (3) over the hook (5) and pull it tight.
• Insert the extension cable's plug in a properly installed wall outlet.

Switching the Unit On/Off

Switching On

• Hold the trimmer firmly with one hand on the control handle – wrap your thumb around the handle.
• Hold the trimmer firmly with the other hand on the loop handle – wrap your thumb around the handle.
• Depress the trigger lockout (1) with your hand and hold it there.
• Pull the trigger (2) with your index finger and hold it there. The motor accelerates and the cutting attachment rotates.

Switching Off

• Release the trigger and trigger lockout lever.
• Wait for the cutting attachment to come to a standstill.
• If the cutting attachment continues to rotate: Stop work, disconnect extension cable's coupling from trimmer's plug and contact your STIHL servicing dealer for assistance. The trimmer has a malfunction.

Checking the Controls

Trigger lockout lever and trigger

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Attempt to pull the trigger without depressing the lockout lever.
• If the trigger can be pulled: Contact a STIHL servicing dealer for assistance.
  The trigger lockout is faulty.
• Depress the trigger lockout lever and hold it in that position.
• Pull the trigger and then let it go.
• If the trigger or trigger lockout is stiff or does not spring back to the idle position: Do not use your trimmer and contact a STIHL servicing dealer for assistance. Trigger or trigger lockout is faulty.

Switching on

• Connect the trimmer to a separate wall outlet.
• Depress the trigger lockout lever and hold it in that position.
• Pull the trigger and hold it there.
  The cutting attachment rotates.
• Release the trigger.
  The cutting attachment stops rotating after a brief delay.
• If the cutting attachment continues to rotate: Stop work, disconnect extension cable's coupling from trimmer's plug and contact your STIHL servicing dealer for assistance. The trimmer has a malfunction.

Operating the Product

Holding and Controlling the Unit

• Hold the trimmer with one hand on the control handle - wrap your thumb around the control handle.
• Hold the trimmer with the other hand on the loop handle - wrap your thumb around the loop handle.

Mowing

The cutting height is determined by the distance of the cutting attachment from the ground.

• Swing the trimmer back and forth in an arc.
• Walk slowly and steadily forwards.
• If you work with a bump guard: Extend the bump guard (1) fully.

Adjusting Nylon Line

• Tap the rotating mowing head on the ground.
  About 30 mm of fresh nylon line is advanced.
  The line limiting blade in the deflector trims the mowing lines to the correct length.

Automatic feed will not take place if the mowing lines are shorter than 25 mm.

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Press the button on the mowing head and hold it depressed.
• Pull out the mowing lines.
• If the mowing lines cannot be pulled out to required length: Install a new spool with mowing line.
  The spool is empty.

After Finishing Work

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• If the trimmer is wet: Allow the trimmer to dry.
• Clean the trimmer.
• Clean the deflector.
• Clean the cutting attachment.

Transporting

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Adjust shaft to its shortest length.
• Carry the trimmer properly balanced by the shaft with the cutting attachment behind you.
• Transporting the trimmer in a vehicle: Secure the trimmer to prevent turnover and movement.

Storing

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Remove the mowing head.
• Observe the following points when storing the trimmer:
  • The trimmer is out of the reach of children.
  • The trimmer is clean and dry.

Cleaning

Cleaning the Product

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Clean the trimmer with a damp cloth.
• Clean the area underneath the fanwheel with a soft brush.

Cleaning the Deflector and Cutting Attachment

• Switch off the trimmer and disconnect extension cable's coupling from trimmer's plug.
• Clean the deflector and cutting attachment with a damp cloth or a soft brush.

Maintenance

Maintenance Intervals
The maintenance intervals are dependent on the environmental and operating conditions. STIHL recommends the following maintenance intervals:

Every 12 months

• Have the trimmer checked by a STIHL servicing dealer.

Repairing

Repairing the Trimmer and Cutting Attachment
The trimmer and cutting attachment cannot be repaired by the user.

• If the trimmer or cutting attachment is damaged: Do not use your trimmer or cutting attachment and contact your STIHL servicing dealer for assistance.

Troubleshooting

Condition	Cause	Remedy
The unit does not start when switched on The unit cuts out during operation	Connecting cable plug or extension cable plug not connected.	Reconnect connecting cable plug or extension cable plug.
	Miniature circuit breaker (fuse) or ground fault circuit interrupter has tripped. Circuit is overloaded or faulty.	Determine reason for circuit breaker tripping and rectify the problem. Switch on miniature circuit breaker (fuse) or ground fault circuit interrupter. Switch off other consumers in the same circuit.
	Wall outlet's fuse rating is too low.	Insert the connecting cable plug in a wall outlet with the correct fuse rating, see "Specifications"
	Wire gauge of extension cable is wrong.	Use an extension cable of the right wire gauge. see "Specifications"
	The extension cable is too long.	Use an extension cable of the correct length, see "Specifications"
	Connecting cable plug or extension cable plug has been pulled out of wall outlet.	Reconnect connecting cable plug or extension cable plug.
	Miniature circuit breaker (fuse) or ground fault circuit interrupter has tripped. Circuit is overloaded or faulty.	Determine reason for circuit breaker tripping and rectify the problem. Switch on miniature circuit breaker (fuse) or ground fault circuit interrupter. Switch off other consumers in the same circuit.
	Wall outlet's fuse rating is too low.	Insert the connecting cable plug in a wall outlet with the correct fuse rating, see "Specifications"
Mowing head cannot be unscrewed by hand	Mowing head overtightened.	Block the fanwheel with the stop pin. Unscrew mowing head by hand. Remove stop pin.

Specifications

STIHL FSE 52 Trimmer

• Supply voltage: 220-240 V
• Frequency: 50/60 Hz
• Rated current: 2.3 A
• Fuse: 10 A
• Power consumption: 500 W
• Rated speed under load: 6000 rpm
• Weight with deflector ad cutting attachment
  • Version with 0.3 m cable: 2.2 kg
  • Version with 9.9 m cable: 2.8 kg
• Electrical protection class: II

Extension Cords
If an extension cord is used, the cross sectional area of its conductors must meet the following minimum requirements – depending on the line voltage and length of the extension cord:

220 V to 240 V

• Cord length up to 20 m: AWG 15 / 1.5 mm²
• Cord length 20 m up to 50 m: AWG 13 / 2.5 mm²

100 V to 127 V

• Cord length up to 10 m: AWG 14 / 2.0 mm²
• Cord length 10 m up to 30 m: AWG 12 / 3.5 mm²

Noise and Vibration Data
K-value (uncertainty) for sound pressure levels is 2 dB(A).
K-value (uncertainty) for sound power levels is 2 dB(A). Kvalue (uncertainty) for vibration levels is 2 m/s².

STIHL recommends that you wear hearing protection.

• Sound pressure level L_pA measured according to EN 50636-2-91: 83 dB(A)
• Sound power level L_wA measured according to EN 506362-91: 94 dB(A)
• Vibration level a_hv measured according to EN 50636291
  • Control handle: < 4.5 m/s²
  • Loop handle: 3.0 m/s²

The vibration values quoted above have been measured according to a standardized test procedure and may be used to compare electric power tools. Depending on the type of usage, the vibrations that actually occur may differ from the values quoted. The vibration values quoted may be used for an initial assessment of the user's exposure to vibrations. The actual exposure to vibrations has to be estimated. This process may also take into account times during which the electric power tool is switched off and times during which it is switched on but running off load.

Combinations of Cutting Attachments and Deflectors

STIHL FSE 52 Trimmer

Trimmer with fanwheel
The following mowing heads may be mounted with the deflector:

• STIHL AutoCut C 3-2 mowing head:
  • with round, low-noise trimmer line with a diameter of 1.6 mm or 2.0 mm

Trimmer without fanwheel
AutoCut 2-2 mowing head cannot be installed by the user.

• Have the required mowing head installed by a STIHL servicing dealer.

Spare Parts and Accessories

These symbols identify original STIHL replacement parts and original STIHL accessories.

STIHL recommends the use of original STIHL replacement parts and accessories.
Original STIHL replacement parts and original STIHL accessories are available from STIHL servicing dealers.

www.stihl.com

Documents / Resources

References

• STIHL International Website - Your manufacturer for power garden tools | STIHL

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Stihl FSE 52 Manual
