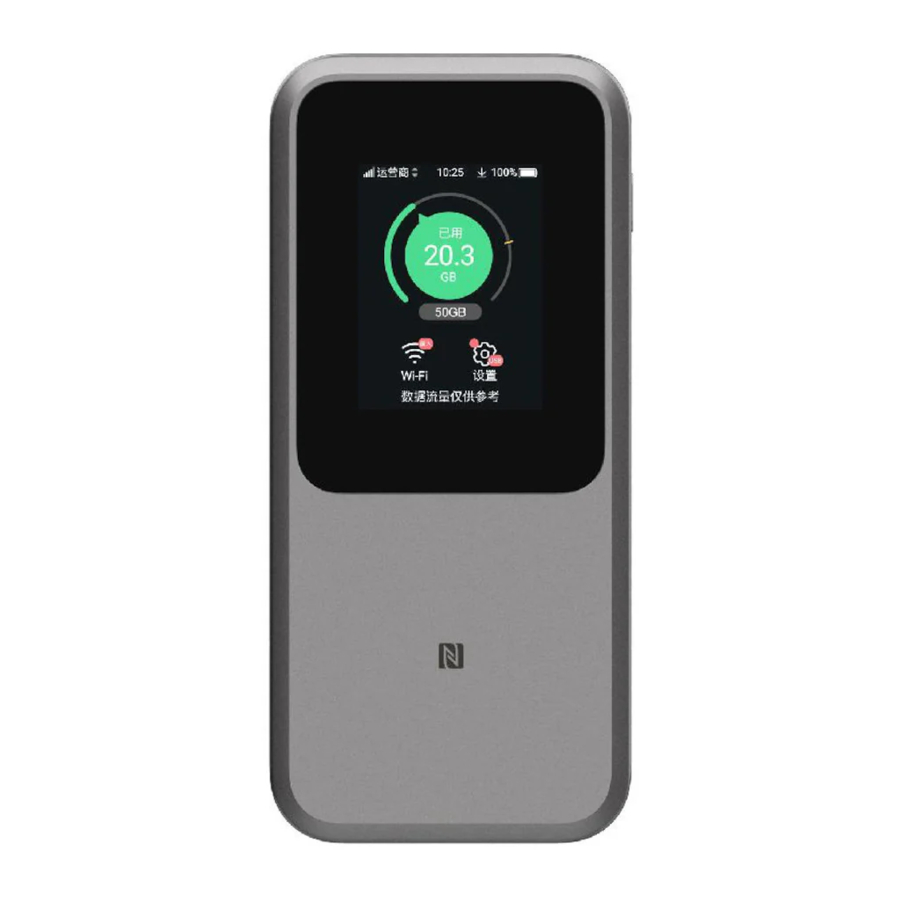

ZTE MU5120 Manual

Prepare

• A valid nano-SIM card.

• View the label to get the default information. The following figure is for reference only.


Insert the nano-SIM Card

1. Open the nano-SIM card slot cover.

2. Insert the nano-SIM card into the slot.

3. Close the cover.

Start Your Device

Press and hold the power button until the screen lights up and then the device will connect to the Internet automatically.

NOTE:
If the battery is extremely low, you may be unable to power on the device. Please charge your device first.

Access the Internet

• Wi-Fi: The default Wi-Fi SSID and password can be found on the device label. Connect to the Wi-Fi network with your mobile device and then access the Internet.

  NOTE:
  You can touch the screen to view the default Wi-Fi SSID and password.
• USB Type-C cable: Connect with the computer via USB port and then access the Internet.


Change Your Device Settings

You can change the device settings by logging in to the 5G Mobile Hotspot configuration web page.

1. View the label on your device to get the default Device Manager Website IP address and Password.
2. Launch the Internet browser. Enter the Device Manager Website IP address in the Address bar.
3. Input the Password and then click Login.
4. After the 5G Mobile Hotspot configuration web page is opened, you can change the default settings.

NOTE:
You can also change some settings by touching the screen.

Power Bank Function

Your device supports the power bank function. You can use it to provide backup power to other mobile devices. When the battery level is lower than 10%, the power bank function will be disabled.

NOTE:
The low-current mode of this device supports charging earphones, watches and other devices. Turn on this mode before use and then turn it off when charging is complete.

Touch Screen Icons and Interfaces

1	Power button	Press and hold for about 2 seconds to power on/off your device.
2	Touch screen icons	Description
		Network signal strength
	5G/4G/3G	Network type
		New SMS
		Battery power level
		Settings: Touch to configure the device settings.
		Wi-Fi: Touch to configure the Wi-Fi settings.
		Show the number of connected users.
		New software available.
3	NFC area	Activate the NFC function on your android phone, put your phone here and then connect to the Wi-Fi network without entering the password.
4	USB port	Supply backup power to other devices. OUTPUT: 5V/2A, 9V/2A, 12V/1.5A
5	nano-SIM card slot and RESET hole	Insert your nano-SIM card. RESET: Press and hold for about 3 seconds to restore the device to the factory settings
6	Charging/USB Type-C jack	Charge the device or connect to the USB port of a computer. INPUT: 5V/3A, 9V/2A, 12V/1.5A, 9V/3A

Troubleshooting

Get More Help

You can get help by:

• Sending an email to mobile@zte.com.cn
• Visiting https://www.ztedevices.com

Specification

This radio equipment operates with the following frequency bands and maximum radio-frequency power.

NOTE:
All ZTE products are compliant with these power limits required by the European Union. Frequency bands supported by the product vary by model.

UMTS BAND 1/8: 23 dBm

LTE BAND 1/3/7/8/20/28/34/38/41/40/42: 23 dBm

5G NR N1/3/7/8/20/28/40/41/77/78: 23 dBm

802.11 a/b/g/n/ac/ax:
2.4GHz Band ≤ 20 dBm
5GHz Band ≤ 20 dBm

USB Port
This product can be connected to a USB interface of version USB 3.0.

Proper Use
As described in this guide, your device can be used only in right location. If possible, please do not touch the antenna area on your device.
