Dockin D MINI 15963 Manual

GENERAL

WELCOME TO THE DOCKIN FAMILY!
About DOCKIN
Honesty and authenticity are at the core of what we believe in. Both are incorporated into our daily work and are therefore an integral part of DOCKIN as a brand and our products.
We meet the challenge of a new, young brand in the rather conservative audio market head on. Being on the frontier of technology, delivering products for a better life and better sound for our entire community — whether it is through our products, our customer service or through reaching out to you in other ways.

OUR MISSION
We put our passion into audio concepts that enhance your experience of unique sound in your flexible and mobile life – anytime and anywhere! Firstclass workmanship and a captivating sound are always in the centre of our focus.

PASSION FOR SOUND
... is more than just flakey marketing speak. Our team consists of people with strong backgrounds in audio and a passion for sound and aesthetics. The love for music, sound and technology unites our team and makes our products unique in the audio landscape.
You can find out more about us on www.dockin.net!

Spotify: dockin_de

Instagram: my_dockin

Facebook: /dockinDE

OPERATION

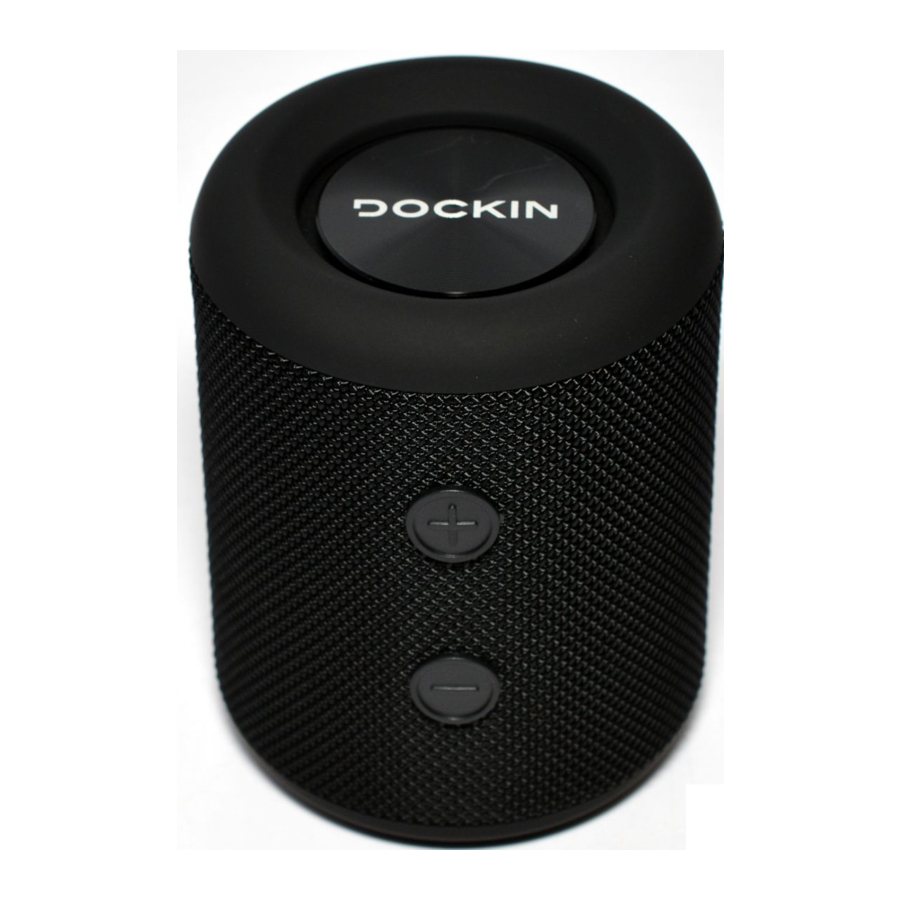

CONTROLS

1. [+] button
   • Press: Increase volume
   • Press and hold: Next song
2. [-] button
   • Press: Decrease volume
   • Press and hold: Previous song
3. Power button
   • Press and hold 2s: Power on / off
   • Press: Change audio mode (Bluetooth, SD Card, AUX)
4. Play / Pause button
   • Press: Play / pause
   • Press (AUX Mode): Mute / Unmute the speaker
   • Press and hold: Disconnect Bluetooth connection
5. Micro SD card slot
   • Insert the micro SD card here
6. AUX input for 3.5mm AUX cable
7. Charging LED
   • LED red: Speaker is charging
   • LED turns off when fully charged
8. Mini USB Charging connector
   Battery status will be shown on your playback device in the Bluetooth menu if supported by your device and connected.
9. White LED Indicator
   • LED blinking - Bluetooth Pairing mode
   • Slow blinking - Bluetooth Pairing successful » LED stays lit - AUX mode
   • Two flashes, then pause - Micro SD mode
   • Slow breathing - Mute active (press Play / Pause button to change mute status in AUX mode)

TURNING THE D MINI ON

• Hold the "power"-button of your D MINI for 2 seconds to switch it on.

The D MINI automatically connects with the last Bluetooth® source (white LED blinking) or switches to pairing mode if the last source is not available (white LED blinking slowly).

PAIRING
Connecting via Bluetooth® function:

1. Activate Bluetooth® on the source device (Bluetooth® settings).
2. Go to the Bluetooth® settings and scan for discoverable devices.
3. Select "DOCKIN D MINI" from the Bluetooth® device list.

After successful pairing, the white LED on your D MINI will blink slowly and you will hear a confirmation sound.
The D MINI will turn off, if no sound is played for 30min to conserve battery.
If you need to change the playback device, you can disconnect the current connection by pressing and holding the "Play / Pause" button. The speaker will enter pairing mode again and you can connect a new device.

AUX MODE

1. Make sure the speaker is turned on
2. Plug in a 3.5mm AUX cable to the input on the back of the speaker and the other end into your playback device.
3. Adjust the volume of you playback device
4. Press the "+" and "-" buttons on the speaker to adjust system volume.
5. Press the "Play / Pause" button to mute or unmute the speaker

MICRO SD MODE

1. Make sure the speaker is turned on
2. Plug your Micro SD into the SD port on the back of the speaker. It will automatically change to Micro SD mode.
3. Press the "+" and "-" buttons on the speaker to adjust system volume.
4. Press and hold the "+" and "-" buttons to change to next / previous song.
5. Press the "Play / Pause" to change playback status.

TECHNICAL SPECIFICATIONS

Information about the Bluetooth® function:

FAQ

USB Charging
Charging: Connect any DC 5V-1A adapter with the supplied cable. Charging time is approximately 2,5 hours.

IPX7 Notice
Please make sure that the silicone cover is closed completely before subjecting the speaker to water. It is rated for up to 30min at a depth of 1m.
Only subject the unit to fresh water. Sea water, pool water or similar could damage the unit. Press the "+" and "-" buttons on the speaker to adjust system

SAFETY

READING AND STORING THE USER MANUAL

This user manual for your D MINI Bluetooth® speaker (hereinafter referred to only as "D MINI") contains important information about safety and handling. Therefore, read the user manual carefully before using the D MINI and also store it
in a safe place for future reference. If you do not observe the information in the user manual, in particular the safety notes, this may result in damage to property and, in the worst case, even injury to persons. If you pass your D MINI on to someone, make sure to also include this user manual.
This user manual is based on the standards and rules in force in the European Union. When abroad, also be sure to observe the countryspecific guidelines and laws.
You can download this user manual as a PDF file at www.dockin.net under Support.

EXPLANATION OF SYMBOLS AND TERMS
Here, you will find a list of the safety-relevant symbols and terms, which are used in this user manual, on the D MINI or on its packaging.

This combination of a warning symbol and term indicates a moderate risk, which, if not avoided, may result in death or severe injury.
NOTE
This signal term warns you of potential damage to property.

PROPER USE
The D MINI is designed as a speaker for private use. It is not suitable for commercial use. You can connect to a source device of your choice in the following ways: You can connect the source device to the D MINI via Bluetooth® 5.0, EDR, NFC or using an AUX cable.
The D MINI also has a powerbank function, that is, you can also connect suitable external devices to the D MINI and charge them using the integrated rechargeable battery of the D MINI.
The power cable contained in the package contents is designed for charging the D MINI. If you want to charge an external device on the D MINI using the powerbank function, you may, depending on the respective external device, need an additional cable that is not included in the package contents.
Only use the D MINI as described in this user manual. Any other use is deemed improper and may result in damage to property or even injury to persons. The D MINI is not a children's toy.
The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use.

SAFETY NOTES

Risk of electrical shock!
Improper handling, incorrect electrical installation or excessive mains voltage may result in an electrical shock.

• Make sure that the mains voltage of the socket corresponds to the specification on the rating plate if you connect the D MINI to it for charging purposes.
• Make sure that the socket that you connect the D MINI to is readily accessible so that you can quickly disconnect the D MINI from the mains supply in the event of a fault.
• Only use the power cable contained in the package contents to charge the D MINI.
• Stop using the D MINI if it exhibits visible damages or if the power cable or its connector plug is defective.
• Do not in any case open the housing of the D MINI. Instead, contact a qualified workshop for repairs. Liability and warranty claims are excluded in the event of repairs performed by yourself, improper connection or incorrect operation.
• Only parts that comply with the original device data may be used for repairs. There are electrical and mechanical parts in the device which are necessary in order to avoid exposure to sources of danger.
• Do not in any case submerge the D MINI and the power cable in water or other liquids.
• Do not use the D MINI in the rain or in wet rooms.
• Make sure that the D MINI and the power cable do not come into contact with open flames and hot surfaces.
• Make sure that the power cable is not kinked and do not lay it over sharp edges.
• Disconnect the D MINI from the power supply once it is fully charged, before you clean the D MINI or if a fault occurs.
• Immediately disconnect any external devices connected to the D MINI if a fault occurs.

Risk of explosion and fire!
Improper handling of the D MINI can cause the integrated rechargeable battery to explode or cause a fire.

• Do not subject the D MINI to excessive warmth or heat such as direct sunshine, fire or similar.
  Only use the power cable contained in the package contents to charge the D MINI.

Danger of chemical burns!
Leaked battery fluid can cause chemical burns if it comes into contact with the skin or other parts of the body.

• If you notice that battery fluid is leaked, be absolutely sure that it does not come into contact with your skin, eyes or mucous membranes. If you have accidentally come into contact with battery fluid, immediately rinse the affected areas with plenty of clean water and promptly contact a physician.
• Be absolutely sure to use protective gloves in the event of a leaked rechargeable battery and remove any battery fluid that has leaked with a dry, absorbent cloth.

Risks to certain groups of persons!

• The D MINI may be used by children ages eight and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been instructed in how to safely use the D MINI and have understood the risks associated with operating it. Children must not play with the D MINI. Cleaning and user maintenance must not be performed by unsupervised children.
• Make sure that children do not play with the packaging material or the D MINI.

Health hazard!
During operation, the D MINI generates magnetic fields, which can interfere with the functioning of medical devices such as pacemakers. Using the D MINI in certain locations can also result in faults or accidents.

• Always keep a distance of at least 10 cm between the medical device and the D MINI. If necessary, consult your physician if you have any questions.
• Do not use the D MINI in environments where there is a risk of explosion.
• Make sure that you only use the D MINI where wireless transmissions are permitted.

Risk of hearing loss!
Listening at a high volume for prolonged periods poses a risk of hearing loss.

• Avoid listening at a high volume for a prolonged period of time.
• Make sure that you maintain adequate distance to the D MINI and never hold your ear up to one of the speakers.
• Set the volume on the source device to a low level before starting playback on the D MINI. If you set the source device to full volume, very high noise pressure may result, which may not only inflict organic damage, but also have psychological effects. Children and pets are particularly at risk in this respect.

NOTICE
Risk of damage!
Improper handling can cause damage to the D MINI.

• Do not place the D MINI on or near hot surfaces (stovetops, heaters etc.).
• Do not allow the power cable to come into contact with hot parts.
• Fully recharge the D MINI approximately every six months, even if you are not using the D MINI at all or only irregularly.

CHECKING THE PACKAGE CONTENTS
Make sure that the package contents are complete and that all parts are undamaged before you commission the D MINI.

1. Take the D MINI and all accessories out of the packaging.
2. Use the following list to check whether the package contents are complete.
   The package contents contain the following individual parts:
   • D MINI speaker
   • USB charging cable
   • User manual
3. Check whether the D MINI or the accessories are damaged.
   If this is the case, do not use the D MINI. Instead, contact the manufacturer at the service address.
