Hamilton Beach 49980A Manual

Parts and Features

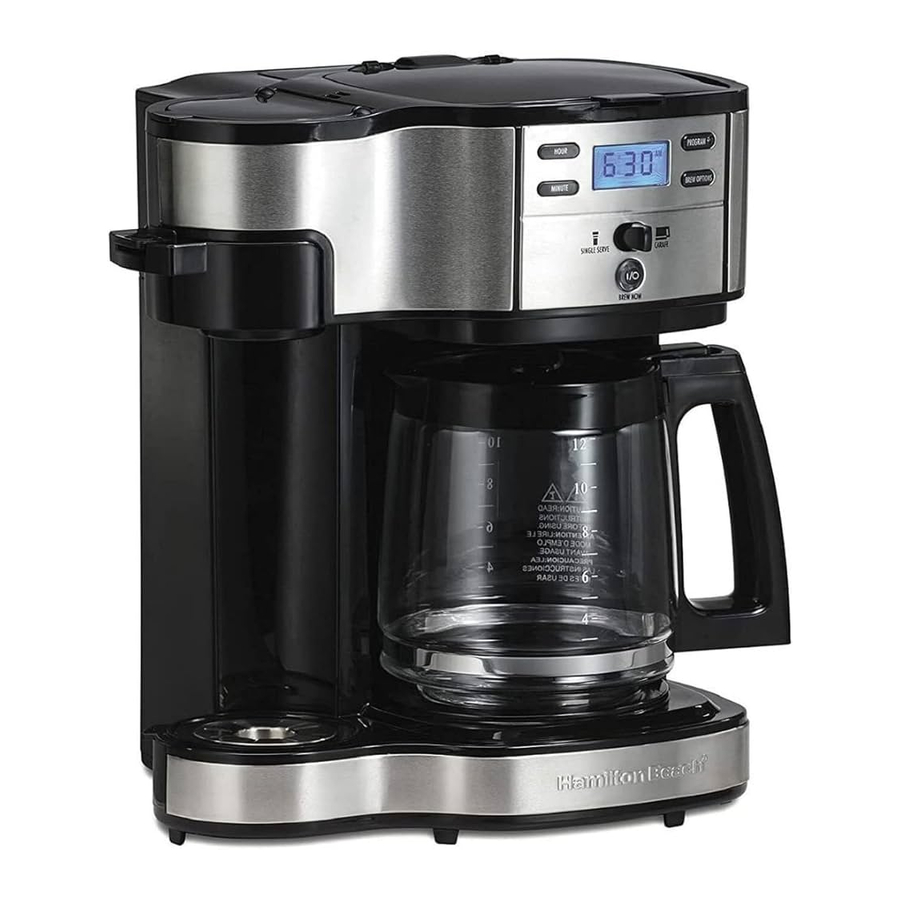

Parts and Features Overview

How to Use

Single-Serve Side

AUTOMATIC SHUTOFF: The coffeemaker will automatically shut off after brew cycle is complete.
NOTES:

The unit will only brew on one side at a time.
To avoid overflow, use slightly less grounds when brewing decaf or flavored coffees.

Burn Hazard.
To avoid contact with hot coffee or water:

Do not use more than 14 ounces (414 ml) of water.
Fill single-serve reservoir with mug or cup into which the coffee will be brewed.
Fully insert mug or cup under filter basket.
This unit can be used with Senseo Pods, available in the coffee aisle of your local grocery store, or loose coffee grounds.

How to Use Single-Serve Side - Step 1

How to Use Single-Serve Side - Step 2

For regular coffee, use a maximum of two level tablespoons of grounds. To avoid overflow, use slightly less grounds when brewing decaf or flavored coffees. DO NOT brew loose grounds with pod basket attached to brew basket.

Keep ground coffee below MAX fill line to prevent overflow.

Single-serve brew basket has two markings: the lower level marking if making 8 oz. (237 ml) of coffee, and the higher level mark if making 14 oz. (414 ml) of coffee. DO NOT fill scoop to top or this will cause overflow.

To assemble pod holder: Grasp single-serve brew basket firmly. Insert left tab of the pod holder first; then snap right side into place.

For stronger coffee, use two pods. Two pods are recommended for up to 14 ounces (414 ml) of coffee — OR if stronger coffee is desired.

Press I/O (ON/OFF) button to begin the flow of coffee. Coffeemaker will shut off when brew cycle is complete. To stop flow of coffee midcycle, press I/O (ON/OFF) button.

Coffee Pods

PODS	WATER
1	8 ounces (237 ml) or less
2	14 ounces (414 ml) or less

For best results, use with 7 g Senseo^® pods. Very large pods will not work with this unit.
NOTE: If 2 pods are used with 8 ounces (237 ml) or less of water, stronger coffee will result.

Carafe Side

AUTOMATIC SHUTOFF: The coffeemaker will automatically How to Use Carafe Side shut off 2 hours after brew cycle is complete.
NOTE: The unit will only brew on one side at a time.

Push lever right to select Carafe.
How to Use Carafe Side - Step 1

Lift lid and pour water from carafe into reservoir.
NOTE: Do not fill past the 12-cup mark (60 ounces [1.8 L]).

Place carafe, with carafe lid attached, on keep-hot plate.
How to Use Carafe Side - Step 2

Place a cupcake-style paper filter in brew basket. A permanent filter may also be used.

For each cup of coffee being made, place one level Tablespoon (15 ml) of coffee into filter.

Place brew basket in brew basket well. Ensure brew basket is fully seated.

For enhanced full/strong-flavored coffee, press BREW OPTIONS button until BOLD is displayed.

Press I/O (ON/OFF) button to start. Press I/O (ON/OFF) button again to turn off.
NOTE: If the coffeemaker is not turned off manually, it will automatically shut off in 2 hours.

NOTE: BOLD mode will require additional time to complete a brewing cycle. If Brew Option is not selected, the coffeemaker will automatically brew on the regular/default setting.
To Order Permanent Filter or Other Parts and Accessories:
1.800.851.8900 (U.S.)
1.800.267.2826 (Canada)
01 800 71 16 100 (Mexico)
or visit hamiltonbeach.com

Programming

(For Either the Single-Serve OR Carafe Side)
NOTE: The unit will only brew on one side at a time.
Press HOUR and then MINUTE to set clock.

Hold PROGRAM until clock flashes.

Continue holding PROGRAM button, press HOUR and MINUTE until the desired brewing start time is reached, and then release PROGRAM button.

Press PROGRAM to activate automatic brewing. A green LED will illuminate to indicate the unit is programmed.

Tips for Best-Tasting Coffee

All coffees are made from either arabica beans or robusta beans, or some combination of both. Arabica beans are slightly more expensive, but tend to produce better-tasting coffee.
Ground coffee will become stale much faster than whole beans. If buying preground coffee, choose a package with the latest expiration date or a smaller quantity.
If grinding whole beans, set your coffee grinder on a fine/medium grind. This will yield the best-tasting grounds. Try to use freshly ground coffee within about a week of grinding.
Using a water filter, filtered water, or bottled water will yield better-tasting coffee than tap water.
Use approximately 1 Tablespoon of grounds for each cup of coffee being made. To avoid overflow, use slightly less grounds (3/4 Tablespoon [11.1 ml]) when brewing decaf or flavored coffees. Also, be aware that using coffee that is ground too finely may also cause the filter basket to overflow.
Make sure your coffeemaker is clean. See "Care and Cleaning" sections.

Care and Cleaning

Single-Serve Side

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).
Pour 1/2 cup (118 ml) of plain white vinegar and 1/2 cup (118 ml) of cold water into single-serve side reservoir.
Cleaning Single-Serve Side - Step 1

Press I (ON) button. Press O (OFF) button after 30 seconds and wait 30 minutes. Press I (ON) button. Press O (OFF) button when finished.

Run 2–3 more brew cycles with CLEAN WATER only. Allow to cool between cycles.
Cleaning Single-Serve Side - Step 2

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Carafe Side

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).
Pour 1 pint (2 cups/473 ml) vinegar into carafe side reservoir.
Cleaning Carafe Side - Step 1

Press I (ON) button. Press O (OFF) button after 30 seconds and wait 30 minutes. Press I (ON) button. Press O (OFF) button when finished.

Run 2–3 more brew cycles with CLEAN WATER only. Allow to cool between cycles.
Cleaning Carafe Side - Step 2

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Troubleshooting

Single-Serve Side

PROBLEM	PROBABLE CAUSE
Weak coffee.	Not enough ground coffee used. If using pods, make sure the pod(s) are centered in the pod basket and/or brew basket and use two pods for stronger coffee. See "How to Use Single-Serve Side."
Coffee overflows from brew basket, travel mug, or regular mug.	Excessive amount of water in single-serve reservoir. Use travel mug or mug into which coffee will be brewed to fill reservoir. Use slightly less grounds when brewing decaffeinated or flavored coffees. Set coffee grinder to automatic drip grind.
Coffee tastes bad.	Coffeemaker needs cleaning. Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind. Poor coffee quality and freshness. Poor water quality (use filtered or bottled water).

Carafe Side

PROBLEM	PROBABLE CAUSE
Brew basket overflows or coffee brews slowly.	Excessive amounts of ground coffee. Decaffeinated and/or coffee ground too finely can cause overflow. Set coffee grinder to automatic drip grind and use slightly less grounds. Coffeemaker needs cleaning. If using a paper filter: Coffee grounds between paper filter and brew basket. Paper filter not open and in proper position. Rinse brew basket before inserting paper filter so the edges will remain pressed against the sides of the basket. Poor-quality paper filter.
Coffee leaks onto base.	Carafe removed from keep-hot plate for more than 20 seconds during the brewing cycle.
Coffee tastes bad.	Coffeemaker needs cleaning. Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind. Coffee-to-water ratio unbalanced. Adjust for personal preference. Poor coffee quality and freshness. Poor water quality (use filtered or bottled water).
Coffee sediment in cup.	Use a high-quality, basket-style paper filter instead of optional permanent coffee filter.
Coffee not brewing or unit will not turn on.	Carafe not positioned on keep-hot plate. Water reservoir is empty. Unit is unplugged. Power outage. Power surge. Unplug; then plug the unit back in. Clock requires reset after power outage.
Longer than normal brew time.	Mineral deposits can build up in the pump of your coffeemaker. Periodic cleaning of the inside of the unit is recommended. More frequent cleaning may be necessary, depending on the hardness of your water. See "Care and Cleaning – Carafe Side" section. NOTE: Do not disassemble the unit.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
To protect against electric shock, do not place cord, plug, or coffeemaker in water or other liquid.
Allow to cool before putting on or taking off parts and before cleaning the appliance.
Coffeemaker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
Do not place on or near a hot gas or electric burner, or in a heated oven.
The carafe is designed for use with this coffeemaker. It must never be used on a range top or in a microwave oven.
Do not set a hot carafe on a wet or cold surface.
Do not use a cracked carafe or one with a loose or weakened handle.
Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.
Do not use appliance for other than intended use.
To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
To disconnect, turn any control to the OFF (O) position and then remove plug from wall outlet.
Be certain carafe lid is securely in place during brew cycle and when pouring coffee. Do not use force when placing lid on carafe.

Other Consumer Safety Information
This appliance is intended for household use only.

Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.
The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.
To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.
