SVP CDC-8630 User Manual

Svp cdc-8630: user manual
Hide thumbs Also See for CDC-8630:
Table of Contents

Advertisement

Quick Links

Download this manual

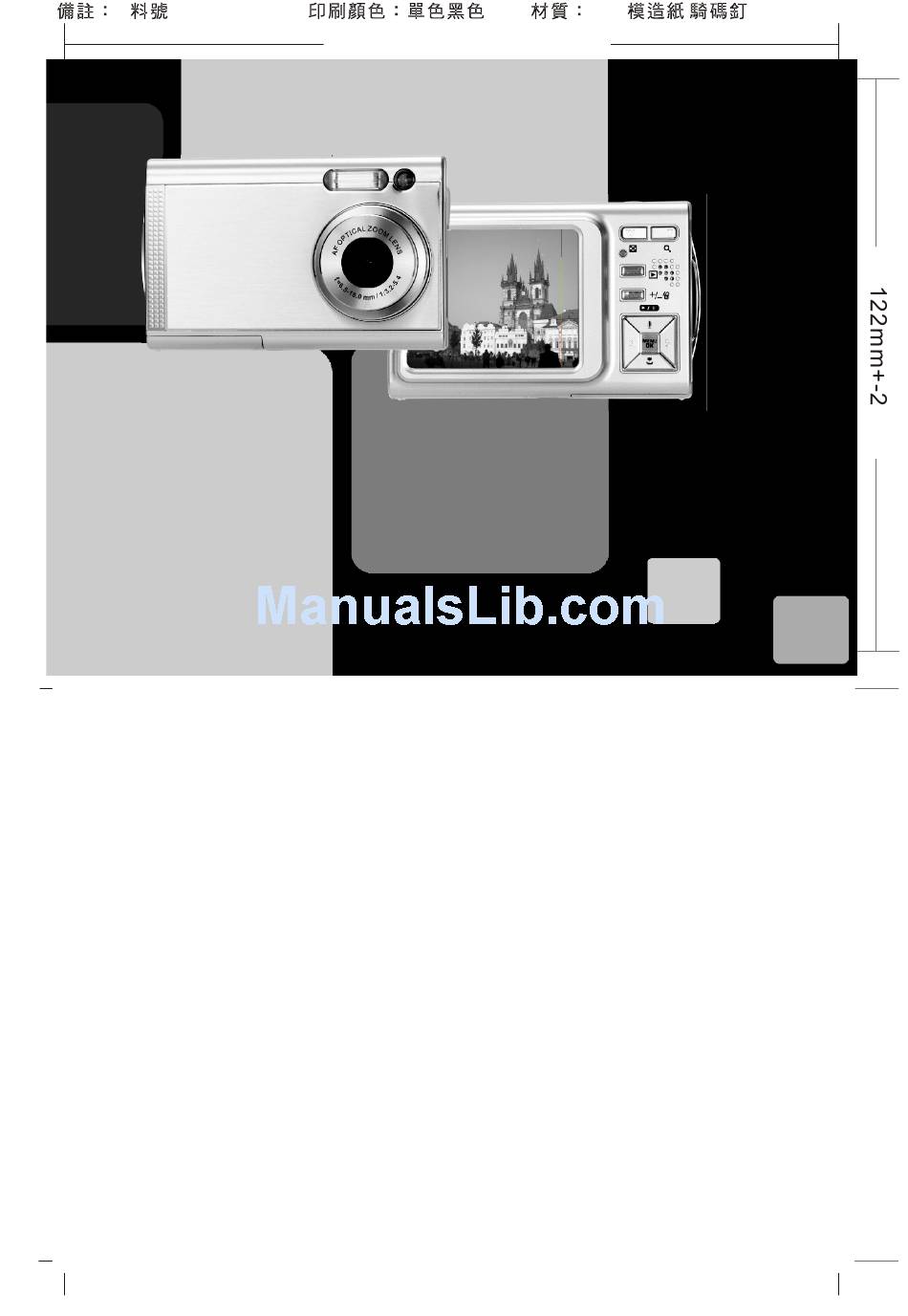

1.
:XR4040854 2.
SVP
CDC-8630
3.
165mm+-2
User Manual
User Manual
This manual can guide you to use this camera
with proper operation and correct setting.
Please read it carefully and optimize the
performance in accordance with your
preference.
80P
,
XR4040854

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDC-8630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SVP CDC-8630

Summary of Contents for SVP CDC-8630

  • Page 1 :XR4040854 2. 165mm+-2 CDC-8630 User Manual User Manual This manual can guide you to use this camera with proper operation and correct setting. Please read it carefully and optimize the performance in accordance with your preference. XR4040854...

  • Page 2: Table Of Contents

    165mm+-2 Table Of Contents Cautions ---------------------------------------------------------------------------------- 03 Overall Introduction ------------------------------------------------------------------ 04 Accessories -------------------------------------------------------------------------- 04 External View ----------------------------------------------------------------------- 05 Key Function Button -------------------------------------------------------------- 05 Icon Display -------------------------------------------------------------------------- 06 Getting Ready ---------------------------------------------------------------------- 07 SETUP ---------------------------------------------------------------- 27 Turn On or Off the Camera ------------------------------------------------------- 07 Loading the Batteries --------------------------------------------------------------- 07 Inserting or Removing an SD Card --------------------------------------------- 08 Attaching the Wrist Strap ---------------------------------------------------------- 08...

  • Page 3: Overall Introduction

    165mm+-2 Overall Introduction Accessories Digital Camera Camera Driver 2 x AA Batteries Camera Pouch & Software CDC-8630 User Manual / USB / Video Cable Wrist Strap Quick Start Guide CDC-8630 Overall Introduction External View Bottom Side Mode Button Microphone Shutter Button...

  • Page 4: Icon Display

    165mm+-2 Icon Introduction Icon Display 26 26 X1.2 X1.2 078 560 256 349 078 560 256 349 07 : 03 AM 07 : 03 AM 2006/01/31 2006/01/31 Working Mode Flash Mode Sharpness Zoom In / Out )Image Shooting Mode )Auto Flash )Soft ) AUTO adjust Indicator...

  • Page 5: Inserting Or Removing An Sd Card

    165mm+-2 165mm+-2 Getting Ready Inserting or Removing an SD Card 1.Power off the camera. 2.Open the Battery Chamber Cover. 3.Insert the SD card into the card slot and press it down until a click sound happens. (Press down the inserted SD card again to get it out once a click sound happens.) 4.Close the Battery Chamber Cover.

  • Page 6: Advanced Functionality Settings

    165mm+-2 Getting Ready A message of "Low Light!" appearing on the LCD Monitor is a warning to remind you to go to the Flash Mode and select Auto Flash or Fill-in flash to get more light sources so as to compose a superior quality image. In such cases shown as follows, please release the shutter button, then try to re-compose the shot and focus again because the Auto Focus function may be difficult to use with.

  • Page 7: Macro Mode

    165mm+-2 Advanced Functionality Settings Macro Mode 26 26 X1.2 X1.2 When you take a shot of a very close-up of object within the distance of 10 cm , set the Macro Button at Macro icon ( ). ( ) will appear on the LCD screen for notice.

  • Page 8: Exposure / Delete Button

    165mm+-2 Advanced Functionality Settings Exposure / Delete Button 26 26 26 26 26 26 Operation Steps X1.2 X1.2 Operation Steps Operation Steps 4SEC 4SEC 4SEC 4SEC DEL ONE DELETE CANCEL CONFIRM: OK 078 560 256 349 078 560 256 349 078 560 256 349 078 560 256 349 Shooting Mode...

  • Page 9: Advanced Functionality Settings

    165mm+-2 Advanced Functionality Settings Metering Setting (Default: MULTI ) Operation Steps METERING With Metering Setting, you can get more superior exposure 1. MENU MULTI condition and take a picture with brightness. SPOT Multi Metering: Exposure will be evaluated according to the average of the 5.OK available light sources in the image area.

  • Page 10: Photo Frame Setting

    165mm+-2 Advanced Functionality Settings Advanced Functionality Settings Photo Frame Setting (Default: OFF) PHOTOFRAME Frame 1 Frame 2 Frame 3 You can put the selected photo frame to the image you capture. Frame 4 Frame 5 Frame 6 Cancel the Photo Frame function after use if you prefer the next image not to be with Photo Frame.

  • Page 11: Setup

    165mm+-2 Advanced Functionality Settings Continuous Shooting Setting Operation Steps SHOOTING This function allows you to take pictures continuously once the shutter button is released 1. MENU SINGLE CONTINOUS Numbers of the pictures are based on the available memory you have. 5.OK Note that the continuous shooting function will be disable once the photo frame function is activated.

  • Page 12: Thumbnail Display (Small Images)

    165mm+-2 Advanced Functionality Settings Thumbnail Display (Small Images) 100-0021 100-0021 Exploring an Image 100-0021 100-0021 100-0021 100-0021 100-0021 100-0021 X 1.6 X 1.6 1.Thumbnail Display is a conveniant tool for you to find the image you took from the display. You can press WIDE Button to have Thumbnail Display.
  • Page 13 165mm+-2 Advanced Functionality Settings Setting Image Protection PROTECT Operation Steps This function allows you to prevent your specific images ONE PIC from being deleted if the "LOCK" under "PROTECT" list is ALL PICS selected. Conversely, you can select "UNLOCK" to cancel the protection.
  • Page 14 165mm+-2 Advanced Functionality Settings DPOF - INDEX This option allows you to put the number of copies for index prints and print out all images as thumbnail display. [YES] - you can print out the index prints for all images. DPOF - SIZE This option allows you to set up the printout paper size including 3X5, 4X6, 5X7, 8X10 and DEFAULT based on the setting of your printer.
  • Page 15 165mm+-2 Advanced Functionality Settings Under Movie Clip Mode ( Video Size Setting (Default: 320 X240) The video size options are provided as follows: Operation Steps SIZE 640x480 640x480 320x240 320x240 BACK : SET :OK Video Frame Rate Setting The image frame rate options are provided as follows: Operation Steps FRAME RATE 30 FPS...

  • Page 16: Setup

    165mm+-2 Advanced Functionality Settings Setup Settings ( SET UP ) Operation Steps SETUP You can start the SETUP settings in 1.MENU FILE SERIES any working mode by pressing down PWR SAVE CANCEL the MENU Button and Up / Down LANGUAGE ENGLISH Button.
  • Page 17 165mm+-2 Advanced Functionality Settings Setting IMPRINT(Default: Off) Setting SOUND Operation Steps SETUP SETUP Operation Steps 1.MENU 1.MENU LANGUAGE PWR SAVE FORMAT LANGUAGE DATE TYPE FORMAT IMPRINT DATE TYPE 5. OK 5. OK SOUND IMPRINT BACK : SET : OK BACK : SET : OK You can choose to have the This option allows you to...
  • Page 18 165mm+-2 Advanced Functionality Settings Setting START-UP IMAGE SETUP Operation Steps There are 2 Start-Up images available. Or you can 1.MENU choose "OFF" not to have the Start-Up image. VIDEO Q. VIEW The camera also reserves the space for one "User Image". RESET S.SOUND 5.

  • Page 19: Setting Lcd (Icon)

    165mm+-2 Advanced Functionality Settings Setting LCD ( ICONS ) SETUP S. SOUND Choose "FULL ICONS" to show all the icons of the settings. S. IMAGE Choose "SIMPLE ICONS" to show only the basic icons of the setting, including Working Mode, Battery Status, Zoom Bar and GAME FULL ICONS Available Shots.

  • Page 20: Under Digital Music Player Mode( )

    165mm+-2 Advanced Functionality Settings Under Digital Music Player Mode ( 1 / 1 DCIM MODE POWER How To Download The Digital Music To The Camera 1. Connect the Camera with the computer with the USB/Video cable. 2. Copy the digital music files to the "Removal Disk" (when the camera is connected to the computer the computer will create a new disk called "Removal Disk").
  • Page 21 165mm+-2 Advanced Functionality Settings Showing the Lyrics,While Playing The Music You can download the lyric file (only supports .Irc format) and copy it to the "Removal Disk" of your cameraor SD memory card. The file name of song and lyric should be the same, so that you can see the lyric on LCD antomatically matching with the music you're playing.

  • Page 22: Printer Connection (Pictbridge Mode)

    165mm+-2 Printer Connection (PictBridge Mode) Connecting the Camera to a PictBridge-supported Printer If the printer you have supports the interface of PictBridge, then you can have your camera connected with the printer by the supplied USB cable to have the stored images print out directly. 1.
  • Page 23 165mm+-2 Printer Connection (PictBridge Mode) AUTO SET Operation Steps AUTO SET 1. MENU [YES]: All values in the [CUSTOM SET] are automatically changed. [NO]: [CUSTOM SET] values are kept. 5.OK BACK : SET :OK CUSTOM SET Operation Steps CUSTOM SET You can select the Paper Size, Print Format, Paper Type, 1.

  • Page 24: Tv Connection

    165mm+-2 Printer Connection (PictBridge Mode) Reset RESET Operation Steps This function allows you to initialize user-changed 1. MENU configurations. [YES]: All print and image settings will be reset back to 5.OK the default. [NO]: Settings will not be reset. BACK : SET :OK All default printer settings are based on the those of the printer manufacturer.

  • Page 25: Pc Connection

    165mm+-2 PC Connection How to Connect with a Computer Computer / Notebook Connection Computer When the USB/Video Cable is in connection with the computer while the camera is on, the camera will automatically go to the PC Mode from any working mode and turn off TFT LCD monitor. In this Mode, you can download images to your computer .
  • Page 26 165mm+-2 PC Connection Note Note If the computer h as been installed with Direct X 8.0 or later If the auto run program fails under certain situation, please go already, the installation procedure will skip above step 4 and to the Start Menu, click "Run" and key in "CD-ROM Drive:\ go to the following window directly completing the driver AutoRun.exe"...
  • Page 27 165mm+-2 PC Connection Installing Ulead Photo Explorer Under Windows Operating System (Windows 98SE/2000/ME/XP) PC Connection...
  • Page 28 165mm+-2 PC Connection Under Macintosh Operating System (Mac 9.X or later) Step PEX 2.0: English Turn on the computer. PEX 2.0F: French Step PEX 2.0G: German Insert the CD into the CD-ROM Drive. The computer will PEX 2.0I: Italian create an icon named "Driver CD"...
  • Page 29 165mm+-2 PC Connection Step Installation completed, please press Quit to exit. Note If a warning window shows up please visit Apple's official web-site http:/ / kbase.info. apple.com to download the latest version of CarbonLib. a.Key in "CarbonLib" in the search bar and click "Search" button. b.Download the latest version of CarbonLib.

  • Page 30: Appendix

    165mm+-2 PC Connection Under Macintosh Operating System (Mac 9.X or later) Downloading Image(s) From Removable Disk 1. Turn on the PC. 2. Switch on the camera. 3. Connect the camera to the PC by USB cable under any working mode. Please make sure the USB cable is well connected to both the PC and camera.

  • Page 31: Specifications

    165mm+-2 Appendix Specifications Specifications MP3 Player Function Yes, file format supports MP3 PictBridge (Direct Printing) Yes Image Type 1/2.5" CCD Sensor Effective Pixels Approx. 6.186 Mega pixels Image Play Single Image / Movie Play / Thumbnails / Slide Show Total Pixels Approx.
  • Page 32 165mm+-2 Appendix Things you can do in Ulead Photo Explorer 8.5 SE Basic Here's an overview of what you can do in Ulead Photo Explorer. Refer to the chapters in this user guide for more details. Acquire images Acquire images from digital cameras, scanners, or memory card readers. (picture 1) picture 1 Adjust images...
  • Page 33 165mm+-2 Appendix Print images in various layouts Output single-image prints, greeting cards, or print images in different photo sizes. You can also print an index sheet of thumbnails for your image collection. (picture 7) Create slideshows Assemble images, video and audio files into a multimedia slideshow. Apply cool transition effects to your slideshow.
  • Page 34 165mm+-2 Memo...
