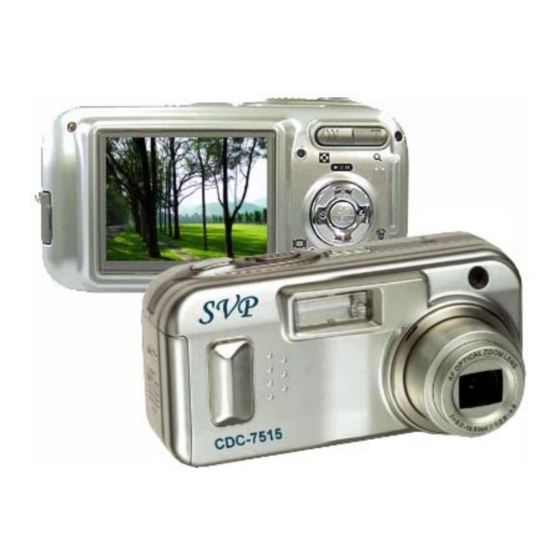

SVP CDC-7515 Specifications

SVP CDC-7515 Specifications

7.0 mega pixels max, 5mp panasonic ccd sensor, 2.8x optical zoom, 4x digital zoom, 2.0" tft-lcd

Advertisement

Quick Links

7.0 Mega Pixels Max, 5MP Panasonic CCD Sensor, 2.8X Optical
Specification
Image Sensor
Panasonic MN39482 1/2.5" 5.36MP CCD Sensor
Focal Length:Wide: 5.8 , Tele: 17.4 mm
Lens
F No.:Wide: F2.8, Tele: F4.8
Digital Zoom:Capture Mode: 4 x & Play Mode: 2 - 8 x
LCD Display
2.0" color TFT LCD
Viewfinder
No
Type:Auto Focus with 2.8x optical zoom
Focusing
Range:Normal: 50cm to infinity; Macro mode: 10cm
Mechanical shutter and Electronic shutter
Shutter
Speed: Normal: 2~ 1/1000 sec.
Night Sense: 8~ 1/1000 sec
Control:Programmed AE
Exposure
Compensation:±2EV (0.5EV / steps)
ISO Equivalent:Auto, 100, 200, 400
Modes:Auto / Slow sync / Fill-in / Auto & Red - eye reduction / Flash off
Flash
Range:0.2 ~ 3.0m (Recharging time:Approx.: 7 - 10 sec.)
White Balance Auto / Daylight / Cloudy/ Fluorescent / Tungsten / Sunset/ Custom
Still Image:Single image , Continuous Shooting
Live View: 25 fps for 320x240 with normal light level
Shooting
Movie Clip:Size : 640x480, 320x240 with Audio
(Quality support: 24 fps and 15 fps)
Recording time is based on memory capacity
CDC-7515
Zoom, 4X Digital Zoom, 2.0" TFT-LCD
