165mm+-2

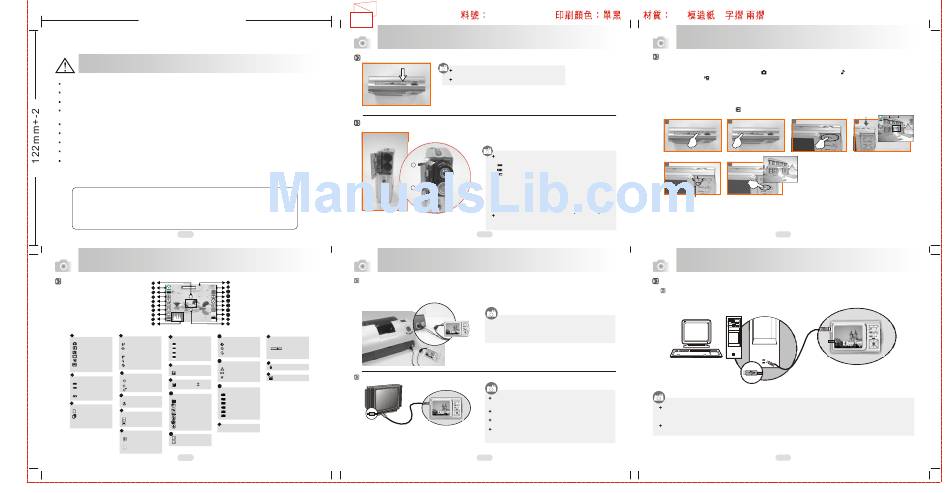

Quick Start Guide

Cautions
Do not try to disassemble the camera by yourself, which may damage the camera or cause electric shock.
Do not fire the flash in a close distance (less than 1 meter); it may hurt your eyes.
Keep the camera away from the reach of children or animals to prevent them from swallowing the batteries or small accessories.
Stop using the camera if any kind of liquid or foreign object enter the camera. If it happens, power off the camera and contact with
your dealer for further help.
Do not operate this camera with wet hands; it may cause electric shock.
The camera may be damaged in an environment of high temperature.
Do not use different types of batteries or new and used batteries at the same time.
To avoid electricity leakage, please remove the batteries if the camera is not in use for a long period.
It is normal that the temperature of the camera body rises if the camera works for a long time.
Small Tip to Save You Big Headache
A digital camera is in a way very similar to a computer. If the digital camera hangs itself during
operation, please follow the procedures below and most likely the camera can be re-activated.
1. Remove the batteries.
2. Reload the batteries.
3. Switch on the camera.
1
1
1

Icon Introduction

Icon Display
19
18
26 26
17
1
X1.2
X1.2
8M
16
2
15
3
1
14
4
5
13
6
12
078 560 256 349
078 560 256 349
7
11
07 : 03 AM
07 : 03 AM
8
2006/01/31
2006/01/31
10
9
20
1
4
14
9

Working Mode

Flash Mode

ISO
Sharpness
(
)Image
Shooting
Mode
(
)Auto Flash
(
)Soft
(
) AUTO adjust
AUTO
(
)Playback Mode
(
)Auto Flash with
(
)Normal
(
) ISO=100
100
(
)Night Scene Mode
Red-eye Reduction
(
)Vivid
(
) ISO=200
200
(
)Photo Frame Mode
5
(
)Slow Sync
(
) ISO=400
(
)Movie Clip Mode
400
(
)Fill-in Flash
15
(
)Voice Recording
(
)Flash Off
10
Quality
Mode
HISTOGRAM
(
)Super Fine
5
(
)
Histogram
(
)Fine
2
Self-timer
(
)Normal

Battery Status

11
(
)10 Seconds
(
)Battery Full
(
2S
) 2 Seconds
(
)
Exposure
0.5
16
(
)Battery Half
(
) Double
Size
Drained
12
6
(
)3328x2496
(
)Battery Drained
White Balance
Focus Range
(
)2848x2136
(
)Auto
3
(
)2560x1920
(
) Macro
(
)Daylight
(
)2304x1728
Continuous Shooting
(
)Cloudy
7
(
1
)Single
(
)2048x1536
(
)Fluorescent
Metering
(
)Continuous
(
)1600x1200
(
)Tungsten
(
)Spot
(
)Sunset
(
)Multi
17
(
)Custom
( 7 )
Available Shots
8
13
EFFECT
(
)

Memory Card

(
) Black & White
(
)Internal Memory
(
NOR
) Normal
INT
(
) Sepia
(
R G
) RGB
B
4
4
4
8630 QSG EN 1.
Quick Start Guide
Getting Ready

Turn On or Off the Camera

MODE
POWER

Loading the Batteries

+
Positive
-
Negative
Printer / TV Connection
Connecting the Camera to a PictBridge-supported Printer
If the printer you have supports the interface of PictBridge, then you can have your camera connected
with the printer by the supplied USB cable to have the stored images print out directly.
18
Zoom In / Out
Indicator
(
) 5.0X
Digital
Zoom
19
(
) Voice Memo
20

How to Connect with a TV

(
)Hand Shake
XR9000480
XR9000480 2.
Press down the "POWER" button to turn on the camera.
Repeat the way above to turn off the camera.
1. Power off the camera.
2. Slide out Battery Chamber Cover to open it.
3. Load 2 AA batteries into the battery chamber following
the polarity indications.
4. Close the Battery Chamber Cover.
The below symbols on the LCD Monitor are the indication of
the battery status.
(
):Battery power is full.
(
):Battery power is half drained. Have new batteries ready.
(
):Battery power is drained. Replace with new batteries.
2 pcs of AA alkaline / Ni-MH batteries are strongly
recommended for normal operation.
The power of batteries may run off if the batteries are kept
inside the camera for a long time without using. Please
remove the batteries when the camera is not in use.
Do not use manganese batteries which they cannot supply
sufficient power to support the operation of the camera.
Batteries may not work normally under 0 C or over 40 C .
It's normal that the temperature of the camera rises after
used for a long period.
2
1. Have both of the camera and the printer power on.
2. Press the MENU Button to go to SETUP Mode.
3. Go to USB and select PRINTER for printer connection.
4. Use the supplied USB cable to connect the camera to the
PictBridge-supported printer as shown above.
Connect the USB/Video connector of the camera to video
input ports of the TV set with the supplied Video/USB Cable.
Turn on the TV and switch the TV/Video switch to A/V mode.
Power on the camera and then switch to the Playback Mode.
Press down the LEFT or RIGHT direction Button to go to the
next or last image for TV reviewing.
5
3.
80P
, Z
(
)
Getting Ready

Basic Photography

1. Press down the POWER button to turn on the camera.
2. Set the Mode Button at Image Shooting Mode (
) for still image, Digital Music Player (
Movie Clip Mode (
) for video recording.
3. Use TELE/WIDE Buttonto zoom in and zoom out.
4. Press the shutter button half way to do the focusing and then press the shutter button fully down to capture an image.
5. The LED Indicator starts blinking right after the Shutter Button is released. Once the LED Indicator stops blinking, you are
ready to take another shot.
6. Or you can press Playback Button (
) to review the images or movie clips you just took.
1
2
3
100-0021
5
6
Blinking
3
PC Connection

How to Connect with a Computer

Computer / Notebook Connection

Computer
When the USB/Video Cable is in connection with the computer while the camera is on, the camera will automatically go to the
PC Mode from any working mode and turn off TFT LCD monitor.
In this Mode, you can download images to your computer .
6
) for digiatal music playing and
26 26
8M
4
