Cammus C5 Manual

Packing list

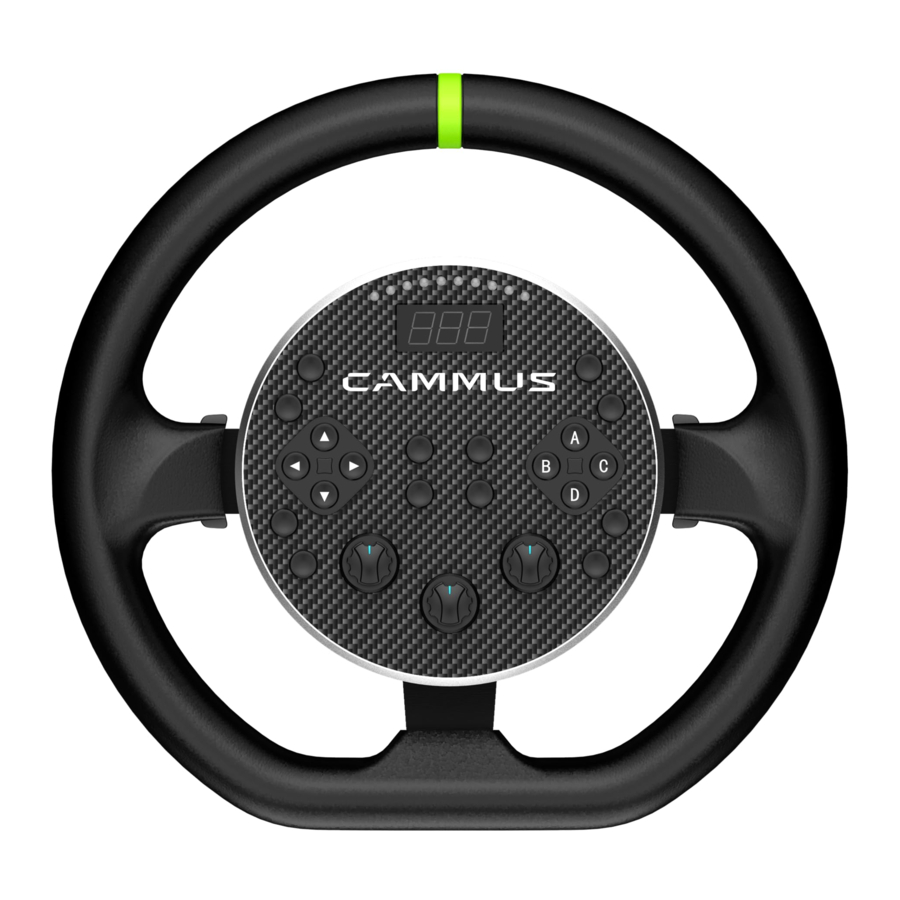

Steering wheel surface - 1
Cooling fan - 1
T-shaped bracket-left - 1
T-shaped bracket-right - 1
Desktop clamp - 1(optional)
USB data cable - 1
Power - 1
Power cord - 1
Fastening screw package - 1
Warranty card + manual - 1

Dimension overview

Dimension overview

Basic Data

Length, width and height 278- 265- 82mm
Bare weight 3.6Kg
Force Feedback Technology Direct Drive Servo Motor(5Nm)
Steering wheel main material aluminum alloy (AL6061)

Support PC mainstream racing games
Requirements (PC): Windows10, 50 MB free hard disk space, USB 2.0 portb

Interface details on the back of the steering wheel

For interface details, refer to the drawing description, as shown in the figure.
Interface details on the back of the steering wheel

All button functions are customized, the following are recommended settings.

  1. POWER: power switch
  2. FAN: fan
  3. USB: usb data connection port
  4. DC INPUT: power data connection
  5. RES: reset button
  6. Type-C: type-c data connection port

Details of buttons on the front of the steering wheel

For interface details, refer to the drawing description, as shown in the figure.
Buttons (front of the steering wheel) - View 1

All button functions are customized, the following are recommended settings.

  1. : The direction button is up
  2. : The direction button is left
  3. : The direction button is right
  4. : The direction button is down
  5. : Reverse
  6. : Change viewpoint
  7. : Hand brake
  8. : Flashing lights and switching high and low beams

Buttons (front of the steering wheel) - View 2

C5 desktop application installation steps

  1. Put the 2 pieces of desktop brackets on the appropriate position on the desktop. And tighten the adjustable handle screw through two five-star handle screws with pressing pieces to fasten the desktop brackets with the desktop.
    C5 desktop application installation - Step 1
  1. Fix the lower plate of the desktop bracket and the desktop bracket together. And insert 4 M6X8 hexagon socket head screws into the corresponding screw holes to fasten the desktop bracket and the desktop together.
    C5 desktop application installation - Step 2
  1. Fasten the blower of model 6105 to the mounting flange of the desktop bracket with two M3X16 cross-recessed screws with pads.
    C5 desktop application installation - Step 3
  1. Fasten the assembled flange assembly of the desktop bracket with 4 M6X8 hexagon socket head screws The lower plate of the desktop support.
    C5 desktop application installation - Step 4
  2. Adjust the angle direction of the mounting flange of the desktop support through the three screw holes on the lower plate of the desktop support(Adjustable 6 degrees each up and down).
    C5 desktop application installation - Step 5
  1. Fasten and connect the steering wheel with the base flange through 4 M6X12 hexagon socket head screws.
    C5 desktop application installation - Step 6
  2. Insert the connected steering wheel assembly into the mounting flange of the desktop bracket through the chute, and pass 4 Fasten and connect with two M6X8 socket head cap screws. Thus, the installation of the desktop steering wheel is completed.
    C5 desktop application installation - Step 7
  3. Connect the power cable, UBS cable and fan cable required for the interface socket on the back of the steering wheel.
    Complete the port socket wiring operation. And you can enjoy the gaming experience brought by the two-in-one steering wheel.
    C5 desktop application installation - Step 8

APP acquisition and usage tutorial

Users can obtain the control software [CAMMUS] in the following ways.

  • Users can enter the corresponding support page to download according to the guidelines (cammusracing.com).
  • Contact customer service at the designated sales outlets and channels of CAMMUS to obtain the download file.


Apple mobile download
apps.apple.com


Demo VideoInstallation

Desktop download and firmware update

To ensure the best user experience, please update your desktop and firmware to the latest version.

Users can update by:

  • Enter CAMMUS official website (cammusracing.com) to download and install the latest desktop;
  • Users can update the device firmware through the latest desktop firmware upgrade function;
  • If you have any questions, please consult us by email: media@cam-mus.com

Precautions before use

Before using this product, please read this guide carefully and keep it for future reference. Parents and guardians should read this guide carefully and ensure that children Observe safety precautions.

About security

This product is designed with full emphasis on safety performance, but users still need to abide by the basic rules of use. To ensure safety, please follow the following rules:

  • Only operate away from water and wet environment.
  • Only 100-240V voltage can be connected, and it is necessary to ensure that the power supply is well grounded.
  • Please make sure that the base power switch is turned off, then insert the power adapter plug into the base, and then insert the 100-240V three-pin plug.
  • When disassembling the base, steering wheel or other accessories, please make sure that the device is powered off.
  • The recommended gametime is 1 hour, with a 5-minute break every 20 minutes, we recommend a maximum of 2 hours playtime.
  • It is forbidden to operate the device at high temperature (≥60°C), and do not touch the surface of the case when it is high temperature.
  • Be sure to turn off the device when not in use or when leaving the device.
  • If the feedback is too strong to control when entering the game, please stop the game immediately and adjust in time. rization.
  • The use of unofficial power adapters, antennas and other accessories is prohibited.
  • It is forbidden to plug and unplug all interfaces (power supply, USB, antenna, etc.) on the base with power on.

danger In order to use the CAMMUS C5 safely and properly, please read this instruction manual carefully before installation and use. It contains important product and safety information; please keep this manual for future reference.

Electricity safety

Do not place the device in a humid or rainy environment to avoid short-circu-iting, damage, fire, electric shock and other risks.
