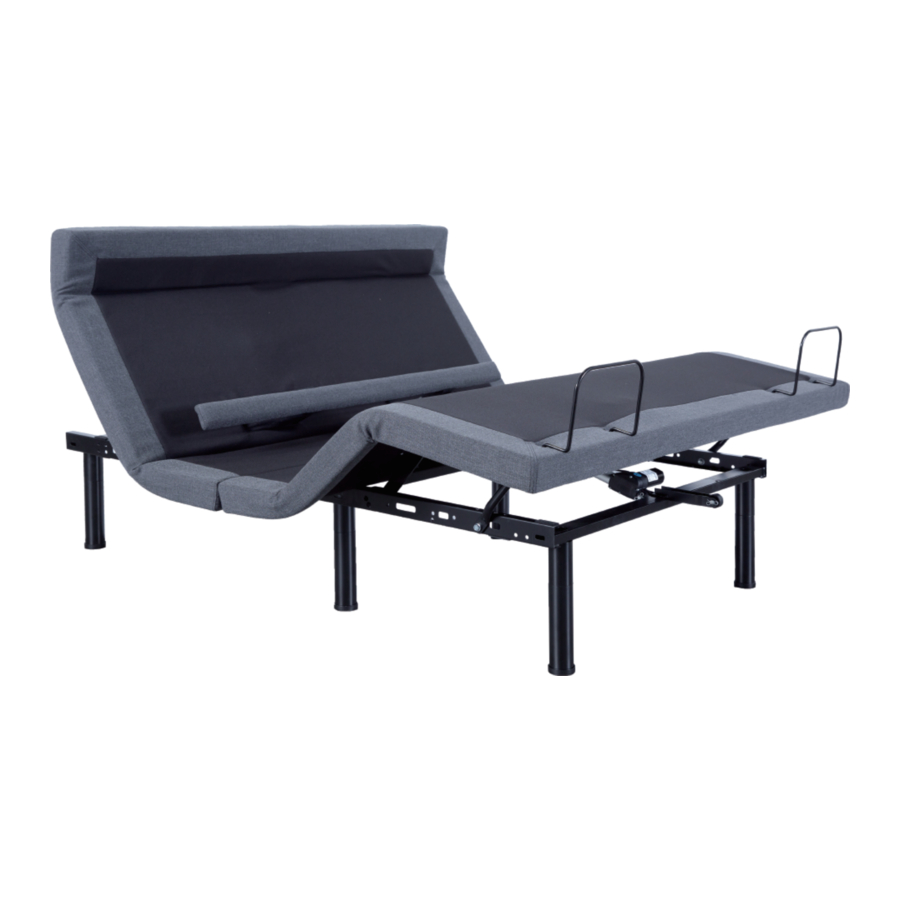

Harmony Ultimate Manual

Parts List

All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for.

OPTIONAL EQUIPMENT (NOT INCLUDED)

Actual product appearance and functionality may vary from photographs.

Harmony Ultimate Electronics Quick Reference Guide

Installation Guide

Two people are required to set up the foundation.
NOTE: To avoid damage to the foundation, always open the carton while the bed is in the at position.

1. Open the shipping box and take out top decking. Cut the ribbon securing accessory Boxes & mattress retainer bar and put them aside. Carefully take out the bed frame from packaging and open it.

2. To install all six legs (see image A on the bo om right), thread the bolt of the leg to the nut on the foundation frame, and tighten by hand. DO NOT OVERTIGHTEN.


   Nut on the frame is removable and replaceable. Please remove tape on the nut to install legs.
3. Uncoil the input power cord (connected to the control box's power port) and plug it into the power supply.

4. Uncoil the power cord and connect it to the power supply.

5. Carefully ip the foundation over onto its legs.

   Two people are required to move the foundation. Do not drag across the floor. Do not rest frame on its side; excessive pressure may damage the legs.
6. Ensure that batteries are correctly installed.

7. Insert the mattress retainer bars into the grommets as shown.



Harmony Ultimate Remote Control Instructions

• Excessive use of the massage motors, over 30 minutes at a me, will cause the motor to shut down and possibly overheat.
• Do not use massage for more than 30 minutes at a time.
• Turn massage back on a er 30 minutes rest to prevent damage to the motors or the adjustable base.

ADJUST

	Lifts and Lowers Head
	Lifts and Lowers Foot
	Lift and Lowers Lumbar
	Lift and Lowers Head & Foot

ONE TOUCH BUTTONS

	Anti Snore Preset Position
	Zero-G Preset Position
	TV preset position
	Flat Button
	Memory Position
	Under Bed LED ON/OFF
	Press and hold the button, flash light will be on.

MASSAGE FEATURE

	Head Massage On (3 intensities)
	Foot Massage on (3 intensities)
	Massage Modes Select (3 modes)
	The button will select a 10, 20 or 30 minute setting Pressing a fourth time will turn off massage.
	The light on the top of the remote indicates a 10, 20 or 30 (backlit of 10&20 MIN on) minute timer setting.

Setting Programmable Positions and Pairing Remote

SETTING PROGRAMMABLE POSITIONS

The wireless power bed has a programmable feature that allows you to save custom positions.
Please read all the instructions below before setting your custom presets on the remote.

1. Adjust the head and foot to your desired position.

2. Press and hold the flat button first, then press and hold memory button for 5 seconds until you hear 2 beeps sound.

3. To adjust the saved position, repeat steps 1 and 2 and the new position will be saved.

PAIRING REMOTE

The original remote that comes in the box is already paired to the foundation. No further action is required. In the event that the remote is not paired with the foundation, follow the steps below.

1. Make sure the batteries work fine. Replace them when needed.

2. Plug the power cord to the power source.

3. Press and hold head lift and foot lift simultaneously, then press and hold the button on the cord of control box for 3 seconds until your hear 2 beeps sound, the remote is then paired.


Synchronizing Two Bases

Using the Remote
If you have split bases, follow these instructions to operate both sides with one remote control in a synchronized manner. Skip this step if you don't have split bases.

1. Make sure each remote control operates a respective side (i.e., Remote A controls Base A and Remote B controls Base B).
2. Pair Remote A to Base B, then base A and base B can be simultaneous operated by Remote A.
3. Test moving both bases with Remote A. Remote B will no longer function.

Tip: You can also set up dual controls using the included Sync Cable.

Using the Sync Cable
As an alternative to wirelessly synchronizing bases with your remote, you can use the Sync Cable to synchronize two adjustable bed bases.

1. Set two bases next to each other.

2. Locate the Sync Cable Input on the Control Box of each base.

3. Plug the Sync Cable into each bases' Control Box.

4. Test the connection by moving each base with your remote control.

Bluetooth Instructions

1. Plug base into power source
2. Turn Bluetooth on in cell phone
3. Install the APP
   Option
   1. Go to APP Store (IOS SYSTEM)/Google Store (ANDROID SYSTEM) Type "Harmony" into search field and select APP, press "install" to install APP onto cell phone as shown below

2. Scan this QR code to APP stores for download.

4. Control device via Harmony Power Base APP.
   1. Open Harmony Power Base APP that was previously installed on cell phone as shown in picture below.
   2. Click the and refresh list, then select the control box code of your base (code also found on the control box affixed to your base), as shown in the picture below.

   3. Refresh list and select the model of your base as shown in picture below.
5. Open control center and select desired options.

NOTE:
If you want to re-set positions, adjust the head or foot to your desired position, then press the of TV/ZG/Anti-Snore/M1/M2 until you hear 2 beeps sound. Now, the new positions are saved.

Emergency Battery Backup

Overview

The backup battery is only to be used in case of a power outage. Batteries are not to be used for normal operation of the bed. The backup battery will not support repeated movement for an extended period of time.

Backup Battery Use:
Use two 9V alkaline batteries only (not included). If a power outage occurs, install the 9V alkaline batteries into the power supply to allow temporary power to the base.

Installing Batteries:
Unplug the power cord from the outlet and remove the cover from the compartment on the underside of the power supply (see image B). Place two 9V alkaline batteries inside, close the cover and plug the power cord back into the wall outlet. The backup battery will not support repeated movement for extended periods of time. After power is restored, unplug power cord, remove the batteries, then plug the power cord back into the wall for normal use.

Troubleshooting

In the event that the base fails to operate, assess the symptoms and possible solutions provided in the chart below.

Safety Warnings

ATTENTION: READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
If unable to understand warnings, cautions, and/or instructions, contact the dealer or technical personnel if applicable, before attempting to use the equipment. Otherwise, injury or damage may result.

SAFETY WARNINGS:

• Do not use bed outdoors.
• Do not use bed near explosives.
• Using bed with oxygen administering equipment other than the nasal masked type creates a possible re hazard.
• When using nasal or masked type administering equipment, route and secure oxygen or air tubing properly to ensure that tubing does not become entangled or damaged during normal opera on of the bed.
• Use caution when having liquids in or around the bed to ensure no spilling occurs. In case of spillage, stand in a dry, clean area of the floor and unplug the bed immediately. Clean up spill and allow the area around bed to dry thoroughly before using the electric controls again. Do not eat or drink hot liquids while opera ng the bed.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Do not allow children or individuals with disabilities to operate the bed without adult supervision.
• Do not allow any person or pet under the bed at any me.
• During bed opera on, make sure body is positioned within the con nes of the bed. Do not place extremities over the sides of the bed when opera ng bed functions.
