Summary of Contents for Harmony 1

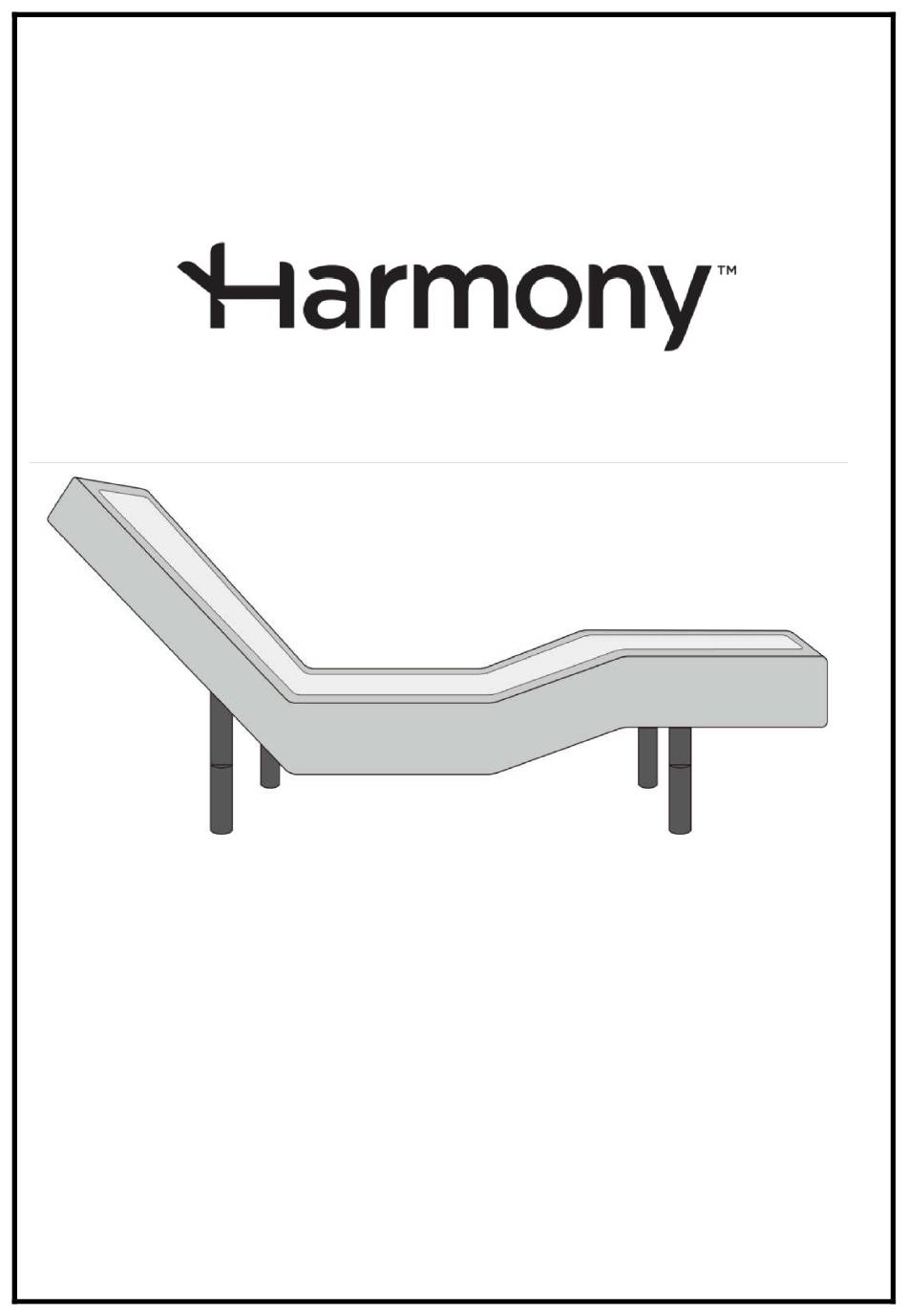

- Page 1 Adjustable Base Assembly and Operation Manual...
-
Page 3: Table Of Contents
Table of Contents Safety Precaution and Usage Guide ................2 To decrease the risk of electronic shock ................2 Adjustable base performance ....................3 Restrictions of your adjustable base ................... 3 Electronic system information .................... 4 Parts List ........................7 Electronics Overview ....................8 Assembly Guide ......................9 Operating Your Adjustable Base ................ -
Page 4: Safety Precaution And Usage Guide
To decrease the risk of electronic shock, burns, or injury to users, children or pets, please follow these instructions. 1. After unpacking your adjustable base, be aware of your small children and pets. Its packing material may put your small children or pets in smothering dangers. -
Page 5: Adjustable Base Performance
To keep your high-quality adjustable base performing well in its lifetime, please follow these instructions. 1. Your adjustable base is only designed for In-Home Use. This adjustable base is not designed for outdoor or commercial purpose. 2. Do not unscrew or open the motor, wired handset or remote control (option), and other electronic components on your adjustable base, except for opening the battery compartment on your remote control. -
Page 6: Electronic System Information
Your Device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 7 – To reduce the risk of burns, fire, electric shock, or injury to persons: 1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
- Page 8 – Pour éviter les risques de brûlure, de feu, d’électrocution ou d’autres blessures physiques. 1. L’appareil ne doit jamais être laissé brancher sans surveillance. Débranchez- le lorsque vous ne l’utilisez pas, et avant d’attacher ou détacher des pièces 2. Lorsque l’appareil est utilisé près ou par des enfants, des invalides ou des infirmes, il faut absolument rester vigilant.
-
Page 9: Parts List
IMPORTANT NOTE: Check and confirm the following items are included in the carton, BEFORE disposing of any packing materials. Remote Control * 1 AC Main Cable * 1 Support Leg * 4 Mattress Retainer * 1 Headboard Brackets * 2... -
Page 10: Electronics Overview
Electronics Overview... -
Page 11: Assembly Guide
IMPORTANT NOTE: Two people are required to set up your adjustable base. STEP 1 Leave the carton in the flat position. After opening this carton, carefully take your Adjustable Base to the desired location and leave it topside down. STEP 2 Take out four Support Legs (C) from the Accessories Box. - Page 12 STEP 4 Connect AC Main Cable (B) to the Motor.
- Page 13 The installed legs could get damaged or bent by excessive pressure, if you lean your Adjustable Base on the legs. 1. Do not recline the Base against the installed legs to flip it over. 2. Do not drag the Base across the floor.
- Page 14 The Bracket (E-1) allows adjustment to meet the dimension of user’s Headboard. After choosing desired pre-drilled holes on the Bracket (E-1), pass the Bolts (J) with the Washer (L) through the holes on E-1 and E-2 Brackets. Fasten these Bolts (J), Washers (L) and Nuts (K) by using the Wrench (G).
-
Page 15: Operating Your Adjustable Base
Operating Your Adjustable Base... -
Page 16: Wireless Pairing Operation
Wireless pairing operation Step1: Make sure the RF receiver is properly connected to the Motor. Step2: Press the pairing button on the RF receiver until the green LED turns on. Now you have 10 seconds for pairing process. Step3: Press and hold simultaneously Heads-Up and Heads-Down buttons on the Remote (A) until the LED on the RF receiver starts blinking. - Page 17 SYNCHRONIZATION (OPTION) Synchronization may be required for setting up two TXL Bases. Insert one cable of the Sync Box (Optional A) into the Motor of your Adjustable Base. After completing the first three steps on the Second Base as describe on page 14, insert the other end of the Sync Box (Optional A) into the Motor of the second TXL Adjustable Base.
-
Page 18: Power Outage Or Failure Of Remote Control
Power outage or failure of remote control In the case of failure of the Remote Control, press and hold the Emergency Button on the RF receiver to flatten your Adjustable Base. When releasing the Emergency Button, all the movements will stop immediately. In the case of the power outage, insert two 9V Batteries (not included) to the Battery Compartment and connect it to the Motor. -
Page 19: Troubleshooting
Troubleshooting TROUBLE SOLUTION There is no feature of the base that can be Remote control illuminates activated. Reset the electronic components by unplugging your base for 30 seconds. Re- plug it into the power outlet. Ensure the surge protection or the power outlet is working. -
Page 20: 20 Year Limited Warranty
During 4 through 20 years, the manufacturer will offer the original purchaser mechanical replacement parts for any mechanical base part to be found defective. The original purchaser shall pay 1/16 of the current replacement parts multiplied by the number of years after the fourth year from the original purchase date.
