STEINEL XLED CAM 1 SC Manual

XLED CAM 1 SC

Proper use

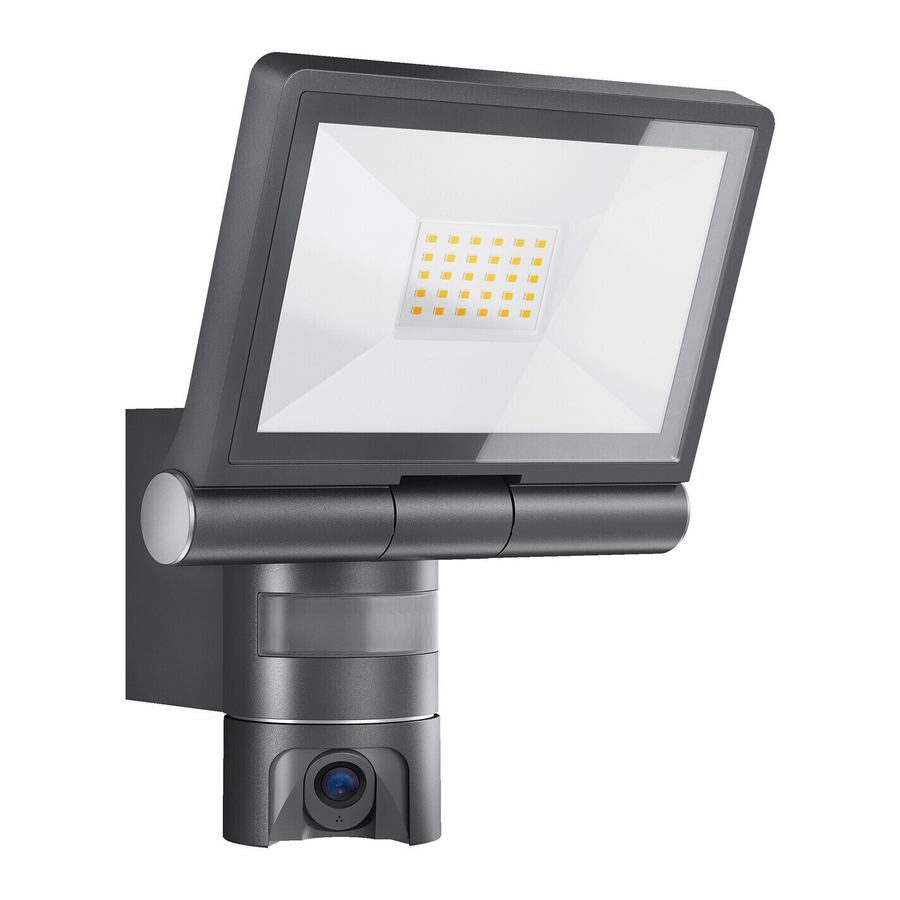

Sensor switched floodlight for indoor and outdoor wall mounting.

Features

• Adjustable floodlight head.
• Integrated camera with dazzle guard.
• 16 GB memory card.
• Intercom system.
• Reset function.
• Operation via Steinel CAM app.

Operating principle

• The integrated infrared sensor detects the heat radiated from moving objects (e.g. people, animals).
• The heat detected in this way is converted electronically into a signal that switches the sensor switched floodlight ON automatically.
• The most reliable way of detecting motion is to install the unit with the sensor aimed across the direction in which a person would walk.
• Reach is restricted when the unit is approached head on.
• Obstacles (e.g. trees, walls etc.) interrupt the line of sensor vision.
• Heat radiation is not detected through obstacles (e.g. walls or panes of glass), the sensor is not triggered.
• Sudden fluctuations in the temperature from changes in weather are not distinguished sources of heat.
• The camera and intercom system are controlled via the Steinel CAM app.

Package contents

Product dimensions

Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure the light is disconnected from the power supply.
• Make sure power supply remains interrupted.

Risk of damage to property!
Mixing up connection leads may produce a short circuit.

• Identify connection leads.
• Re connect connection leads.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.
  • Take reach into consideration.

  • Take reach and motion detection into consideration.


  • Vibration- free.
  • No obstacles in detection zone.
  • Not in explosive atmospheres.
  • Not on normally flammable surfaces.
  • Do not look into the LED light from a short distance (< 20 cm).
  • Stable connection to the Wi Fi router (2.4 GHz band).

Mounting procedure

• Check to make sure the power supply is switched OFF.(Fig. 3.4)
• Unscrew retaining screw.

• Disconnect sensor switched flood _GB light from the wall mount by pressing the clip. (Fig. 4.4)
• Mark drill holes.

• Drill holes (Ø 6 mm) and fit wall plugs.

• Firmly screw wall mount into place.

• Connect mains power supply lead according to terminal labelling. (Fig. 4.8/3.4)

• Aim sensor -switched floodlight and fix in place with grub screws.

• Fit sensor- switched floodlight on the wall mount.

• Tighten retaining screw.(Fig. 4.10)
• Switch ON power supply.(Fig. 4.10)

Commissioning

System requirements:

• 2.4 GHz >> the cam can only be installed in a 2.4 GHz network. For installation process, please temporarily deactivate the 5 GHz frequency band in router (or rename the 5 GHz network). It can be re activated after completing installation.
• During the installation process, remove Wi Fi repeaters from network; they can be re activated later on
• Make sure Wi Fi 6 is deactivated, or downward compatibility for Wi Fi 4 is activated in router settings
• Make sure Wi Fi network is encrypted to WPA2 standard. Cam does not support WPA3 or higher
• Make sure camera light has sufficient bandwidth at place of installation
• Make sure Steinel cam app on smartphone has all necessary authorisations (in particular location sharing (needed by camera light to detect Wi Fi network, we do not record any of our customers' locations))

Configuration

Steinel CAM app 2

Android

iOS

Camera function

• As soon as the camera has been set up via a smartphone or tablet, it can only be shared with other devices from that device via QR code / serial number.
• Once the sensor has triggered, you will receive a push notification via the app.
• Open the app. You can now use the image display and intercom system.
• The camera films a sequence when the sensor has been triggered. The filmed sequence is saved on the memory card and can be retrieved at any time.
• The recorded data is only saved on the camera light's memory card.

Note:
You will find further information on the functions and setting options in the app.

• Download Steinel CAM app.

System requirements

• Wifi 4 / WPA2 encryption Wifi network 2.4 GhZ / min. 2 Mbit/s Software version Android 5.0 / iOS 11.0 or newer
• Same 2.4 GHz Wi Fi network for sensor switched floodlight and smartphone or tablet.
• The Wi Fi router enables the devices to communicate with each other.
• While configuring, no connection to guest access or repeater.

Configuring unit

Power supply connected:

• The unit boots.
• Status LED lights up red.

After booting:

• Acoustic signal every 4 seconds.
• Status LED flashes red.
  • Open Steinel CAM app.
  • Enter the Wi Fi router's network name and network key into the Steinel CAM app. While unit and Wi Fi router are connecting:
• Acoustic signal every second.
• Status LED flashes green in rapid succession.

Smartphone or tablet are connected with the unit:

• Signal stops sounding.
• Status LED slowly flashes green.
  • Configure unit via the Steinel CAM app.

Use

All functions are selected and used via the Steinel CAM app.

Factory settings

• Time setting: 1 minute
• Twilight setting: daylight mode
• Basic light level: 40 %

Time setting

The time (switch off delay) can be set to 1 minute, 3 minutes, 10 minutes or 15 minutes. Every movement detected re activates the light.

Twilight setting

The brightness response threshold (twilight) can be infinitely varied from approx. 10 to 10,000 lux (daylight operating mode).

Basic light level

• Basic light level provides constant illumination that switches ON when the level of ambient light falls below the light level response threshold. Basic light level can be infinitely varied from a light output of 10% to 40%.
• Light is switched to 100% output when movement is identified in the detection zone. The unit then switches back to basici light level.

Inserting the memory card

• Undo retaining screw and remove cover.

• Insert memory card.

• Fit cover and tighten retaining screw.


Aiming camera

Aiming floodlight head

• Undo the grub screws to alter aim. After altering aim, fix floodlight head in place with grub screws. (Fig. 6.6)

Adjusting the detection zone

To rule out inadvertent triggering or target specific danger spots, the detection zone can be limited with film shrouds. The film shroud is stuck onto the sensor unit.

• Limit the detection zone's max. reach with the top film shroud.

• Limiting the horizontal detection zone with film shroud segments cut to size.
• One segment covers about 45°.


  • For adjustment, select the test mode in the Steinel CAM app.

Restoring factory settings

• Undo retaining screw and remove cover.(Fig. 6.1)
• Using the key, hold the reset button down for approx. 7 seconds until the signal sounds.


While resetting:

• Status LED lights up red.

After resetting:

• Acoustic signal every 4 seconds.
• Status LED flashes red.
  • Open Steinel CAM app.
  • Clear camera in Steinel CAM app.
  • Re configure unit. ➜"Configuring unit"
  • Fit cover and tighten retaining screw.(Fig. 6.4)

Camera function

• The camera films a sequence when the sensor is triggered.
• The filmed sequence is saved on the memory card and can be retrieved at any time.
• The recorded data is only saved on the unit's memory card.
• A maximum of two smartphones or tablets can be connected to the camera at the same time.
• A QR code is generated on the smartphone or tablet which can be read by another smartphone or tablet.
• Once the sensor has triggered, the user receives a push notification via the Steinel CAM app.
  • Open Steinel CAM app.
  • Use image display and intercom system.
    ➜ Further information on the functions and setting options in the Steinel CAM app.

Manufacturer's Warranty

Manufacturer's warranty of
STEINEL GmbH, Dieselstrasse 80 84,
DE 33442 Herzebrock Clarholz,
Germany

The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.
