Sabre HS-RL-DWA2, HOME Series Manual

Introduction

warning Please keep these instructions in a safe place for future reference.

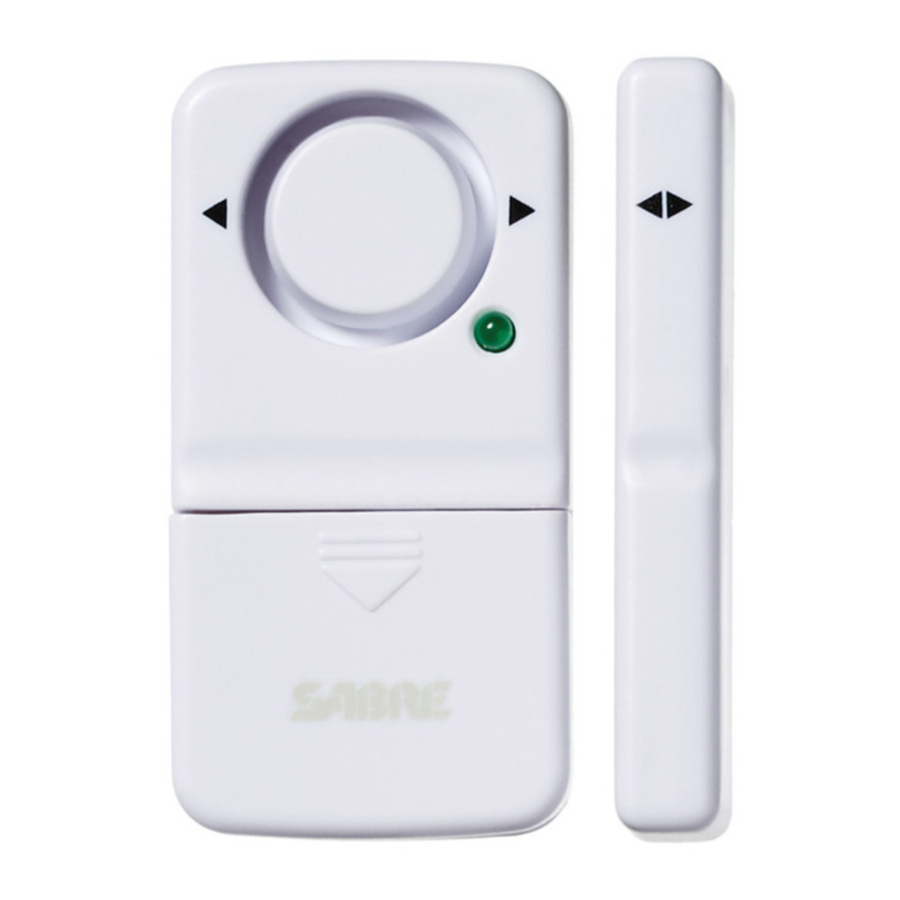

The Magnetic Window/ Door Alarm is designed to sound an intruder alarm or visitor chime when a door or window is opened. The simply switch in the battery compartment of the unit can toggle between the different modes or switch the unit off when it is not required.

Parts and Features

Parts and Features

Kit Includes

1 x Magnetic Window/Door Alarm
1 x Double Sided Mounting Tap Set
1 x Instruction Leaflet

Battery Installation

The Magnetic Window/ Door Alarm requires 4 x 1.5V LR44 alkaline batteries (included).


Contains coin battery.
INGESTION HAZARD
keep away from children.

To Activate the Batteries:

  • Unscrew and slide off the cover at the front of the main unit.
  • Carefully remove the clear plastic insulation tab from the batteries. If the batteries are dislodged, replace them noting the polarity diagram inside the battery compartment.
  • Replace the battery cover and tighten screw.

It is recommended that the alarm power is regularly tested by pressing the test button in the battery compartment. If the light illuminates, the batteries are in good condition. If it fails to illuminate, replace all of the batteries.

To Replace the Batteries

  • Unscrew and slide off the cover at the front of the main unit.
  • Remove the old batteries and replace with 4 x new 1.5V LR44 alkaline batteries noting the polarity diagram inside the compartment.
  • Replace the battery cover and tighten screw.

  • Immediately dispose of used batteries and keep away from children. Do NOT dispose of batteries in household trash.
  • Even used batteries may cause severe injury or death.
  • Call a local poison control center for treatment information.
  • Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
  • Ensure the batteries are installed correctly according to polarity (+ and -).
  • Remove and immediately discard batteries from equipment not used for an extended period of time.
  • Do not force discharge, recharge, disassemble, expose to high temperatures or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.

Installing the Unit

  • Clean the surfaces you want to mount the alarm on using cleaning alcohol or similar. Ensure the surfaces are completely clean and dry before proceeding.
  • Using the double-sided adhesive pad provided, mount the alarm and magnetic sensor on the door or window to be protected, placing one of the units on the part of the fixture which opens and the other on the stationary part of the fixture (frame).
  • Ensure that when the door or window is closed the arrows on two parts of the alarm are aligned with less than 15mm between them.

Operation

To Arm the Unit in ALARM Mode

  • Toggle the switch to the position. When the door or window is opened (causing the sensors to separate by more than 15mm) the alarm will sound continuously until the door or window is shut, or the unit is disarmed.

To Operate the Unit in CHIME Mode

  • Toggle the switch to the position. When the door or window is opened (causing the sensors to separate by more than 15mm) the chime will sound.

To DISARM the Unit

  • Toggle the switch to the position. When the door or window is opened (causing the sensors to separate by more than 15mm) the unit will make no sound.

Care & Maintenance

To clean the unit housing, use a soft cloth dry. Do not use chemical agents as this damage and discolor the unit.


RISK OF PERSONAL INJURY PROLONGED EXPOSURE TO THE ALARM SIREN MAY CAUSE PERMANENT HEARING LOSS FOR INDOOR USE ONLY DO NOT USE IN WET LOCATIONS
