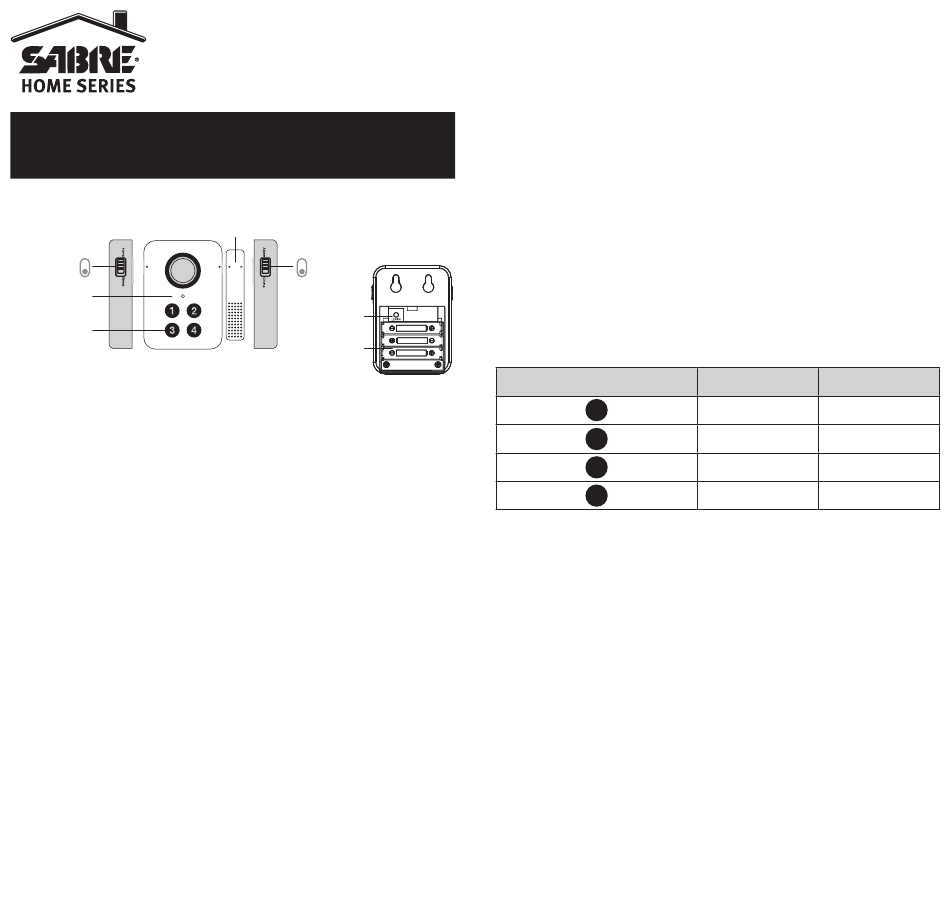

Sabre HOME Series Installation And Operating Instructions

ELITE DOOR ALARM
INSTALLATION AND OPERATING INSTRUCTIONS
These instructions should be kept in a safe place for future reference.
Home
Away
Indicator Light
Keypad
INTRODUCTION
The alarm is operated using a 4-digit PIN code with the keypad located on the front of
the alarm. The system has 3 operating modes: CHIME, ALARM/AWAY and ALARM/
HOME mode. CHIME mode is a low security feature that will produce a door-chime
sound when the alarm is triggered in HOME or AWAY mode. In ALARM/AWAY mode
the device will produce a constant high volume alarm sound after ENTRY delay, when
triggered. In ALARM/HOME mode, the unit will produce a constant high volume alarm
sound IMMEDIATELY after it is triggered.
INSTALLING BATTERIES
The keypad controlled door alarm requires 3xAAA alkaline batteries (not included).
1. Remove the screw from the battery compartment cover located on the back of the
unit. Slide off the door in the direction of the arrow.
2. Insert 3xAAA batteries noting the polarity diagram inside the battery compartment.
3. Replace the battery compartment cover and secure the screw.
OPERATION
• Chime Mode
In Chime mode, the main unit will sound "Di-Do" when someone opens the door.
• Setting Code
Open the battery compartment and press the LEARN button, the indicator light will
flash red. Now, enter a 4-digit code, the indicator light will flash green 3 times to
indicate that code setting is successful. The time limit of setting code is about 15
seconds.
Model HS-RL-EDA
Magnet
Alarm
Chime
Learn Button
Battery
Compartment
• Arming Setting
In ALARM mode, slide the switch to AWAY or HOME position and then enter the
4-digit code. The indicator light will flash green once to indicate that arming setting
is successful. However, if the code entered is incorrect, the unit will sound a long
"Di" and the indicator light will quickly flash red 3 times to indicate that arming
setting failed. Enter the correct code to try again.
• Disarming the Alarm
Under arming status, enter the 4-digit code, the unit will sound "Di-Di" and at
the same time the indicator light will quickly flash green twice to indicate that
disarming is successful.
• Home Mode
In HOME mode, the alarm will immediately sound when the door is opened.
• Away Mode
In AWAY mode, after arming, the indicator light will glow green constantly and
enter to the mode selection status. The mode selection status will last for 5
seconds. Within the 5 seconds, press the corresponding number to select the
mode you desired. See below for details. If timed out, it will return to the previous
mode.
Number Key
1
2
3
4
During delay, the indicator light will flash red. "Exit Delay" allows time for you to
leave the protected area without triggering the alarm and "Entry Delay" allows time
to enter 4-digit code when entering to the protected area without triggering the
alarm.
• Panic Mode
In any case, press the number keys "1" and "4" at the same time, the alarm will
immediately sound. In case of sounding an alarm, enter the 4-digit code to turn off
the alarm sound and disarm at the same time.
• Low Battery Indicator
When the battery voltage is low, the red LED light will flash once every 4s. In this
situation, the user should replace batteries asap.
TESTING
It is recommended that the alarm is tested immediately after installation and at regular
intervals not exceeding 1 month. Note: A cloth can be used to cover the siren and
reduce the sound output of the alarm during testing.
Exit Delay Entry Delay
10S 5S
15S 10S
30S 15S
45S 30S
