cecotec CECOMIXER EASY 04041 Manual

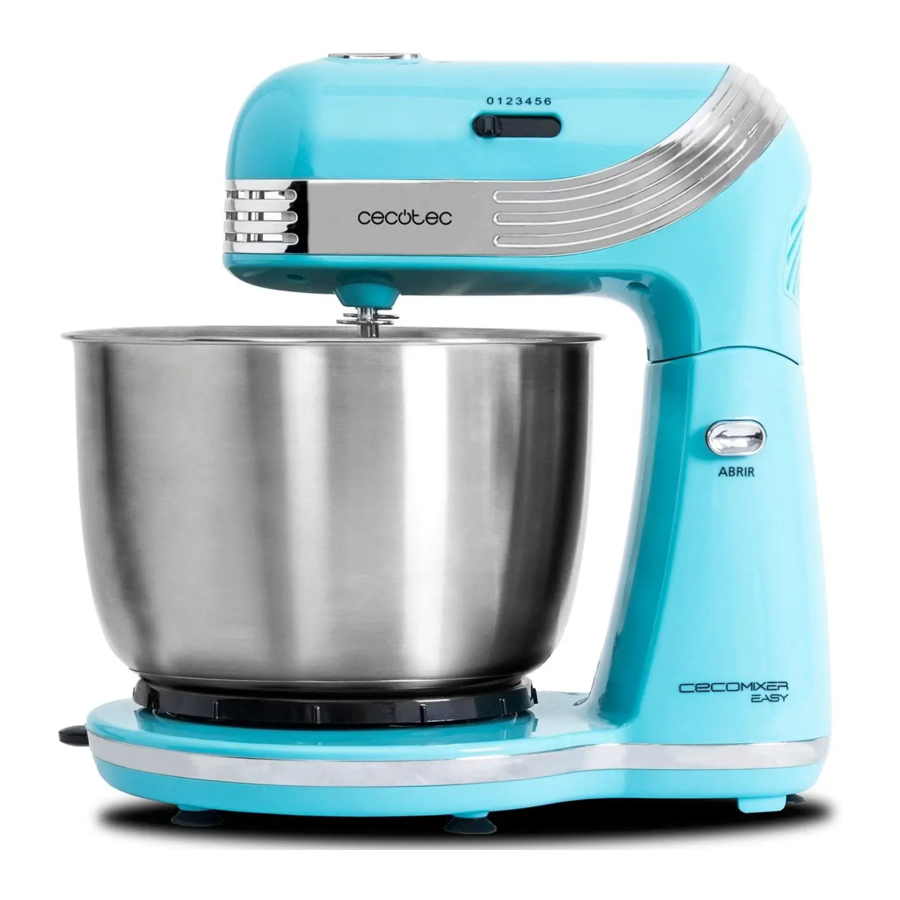

PARTS AND COMPONENTS

1. Body
2. Tilt support pusher
3. Tilt support
4. Pusher to release whisks
5. Speed knob
6. Whisks holes
7. Mixing whisks
8. Kneading whisks
9. Bowl
10. Swivel base
11. Bowl slide knob

BEFORE USE

Take the product out of the box and remove all packaging materials.
Make sure all parts and components are included and in good conditions. If any sign of visible damage is observed, contact immediately with our official Technical Support Service.

OPERATION

1. Keep pressed the tilt support pusher (2) and lift up the support (3).

2. To place the bowl (9) in the swivel base (10) keep pressed the swivel base and turn the bowl to the indicated direction.
3. Place the whisks into the holes.

Note
The whisks that have a ring in the edge must be placed in the hole with bigger diameter of the blender showed with the letter "R". If it is not like this, there is risk of dough spill.

Mixing whisks (7)
For liquid mixes, creams, egg whites, etc.

Kneading whisks (8)
Designed to knead pastry and light dough.

1. Place the whisks in the corresponding holes pressing and turning round in order to have them correctly fixed. Use always the whisks together. Never use different whisks together.
2. Keep pressed the pusher (2) and move down the tilt support (3) (Fig. A).
3. Select the speed with the selector (5).
4. It is advisable to begin at the lowest speed (position 1) to then increase the speed to highest speed (position 6). However, and depending on the texture of the food, you may use the highest position from the start.
5. Use the slide knob (11) to move the bowl or keep it static. Keep it pressed downwards and slide to the left to activate the orbital movement. With this action, you will get a homogeneous dough.
6. Once you have finished, set the speed selector (5) to "0" position and unplug it from the mains.
7. Keep pressed the support pusher (2) and lift it up.
8. To take out the rods press the release button (4).
9. To remove the bowl keep hold the turning base and turn the bowl in the indicated direction.

CLEANING AND MAINTENANCE

• Before you proceed to cleaning, make sure the appliance is unplugged from the mains.
• The accessories may be cleaned with soap and water. Try to do it as soon as you finish using it, because dry texture of some foods are difficult to take out.
• Clean the body of the appliance with a cloth dampened in water.
• Do not use abrasive or chemical products, such as metallic scourers, which may deteriorate the surfaces of the appliance.

TECHNICAL SPECIFICATIONS

Product: Cecomixer Easy
Product reference: 04041
Power: 250 W
Voltage and frequency: 220-240 V ~ 50/60 Hz
Made in China | Designed in Spain

SAFETY INSTRUCTIONS

Carefully read these instructions before using the appliance for the first time and keep them for future enquiries.

• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• This appliance must not be used by children. Keep the appliance and the cable out of the reach of children.
• Keep all plastic bags and packaging components out of the reach of children. They are potentially dangerous.
• Do not connect the appliance to the mains without checking that the voltage on the rating plate and that of your household are the same.
• Never immerse the main body in water or other liquid.
• This product is designed only for household use. It can knead up to 0.5 kg. Do not use the appliance without pauses for periods of time longer than 15 minutes.
• After these minutes, allow the appliance to cool down for a few minutes before using it again.
• Do not leave the appliance unattended while in use.
• Do not use the appliance empty.
• Don't allow children to play with the appliance. Keep it out of their reach.
• Make sure neither the appliance nor the cable are in direct contact with hot surfaces or objects.
• Always disconnect it from the mains when you do not use it and before assembling/disassembling or when cleaning.
• Do not leave the appliance plugged in if it is not going to be used.
• If the cable were to deteriorate it must be changed by a Technical Authorised Service.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at +34 963 210 728.
