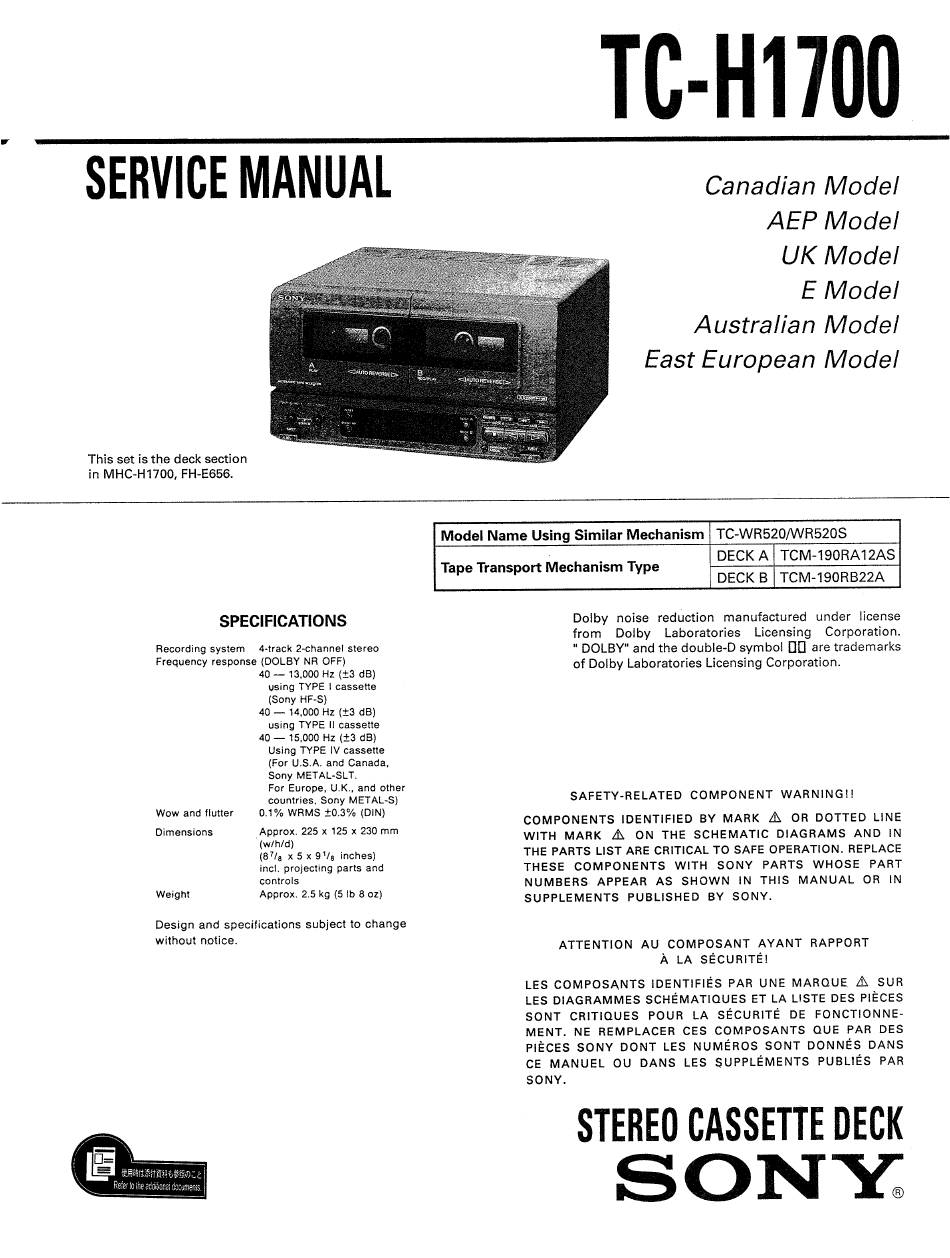

Sony TC-H1700 Service Manual

SERVICE MANUAL
This set is the deck section
in MHC-H1700, FH-E656.
SPECIFICATIONS
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
40 — 13,000 Hz (+3 dB)
using TYPE | cassette
(Sony HF-S)
40 — 14,000 Hz (+3 dB)
using TYPE Il cassette
40 — 15,000 Hz (+3 dB)
Using TYPE IV cassette
(For U.S.A. and Canada,
Sony METAL-SLT.
For Europe, U.K., and other
countries, Sony METAL-S)
Wow and flutter 0.1% WRMS +0.3% (DIN)
Dimensions Approx. 225 x 125 x 230 mm
(w/h/d)
(87/3 x 5x 9'/g inches)
incl. projecting parts and
controls
Weight Approx. 2.5 kg (5 lo 8 oz)
Design and specifications subject to change
without notice.
Model Name Using Similar Mechanism | TC-WR520/WR520S
Tape Transport Mechanism Type
TC-H1700
Canadian Model
AEP Model
UK Model
F Model
Australian Model
East European Model
DECK A} TCM-190RA12AS
DECK B | TCM-190RB22A
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
" DOLBY" and the double-D symbol! DI] are trademarks
of Dolby Laboratories Licensing Corporation.
SAFETY-RELATED COMPONENT WARNING!!
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
"STEREO CASSETTE DECK
SON
Y.
