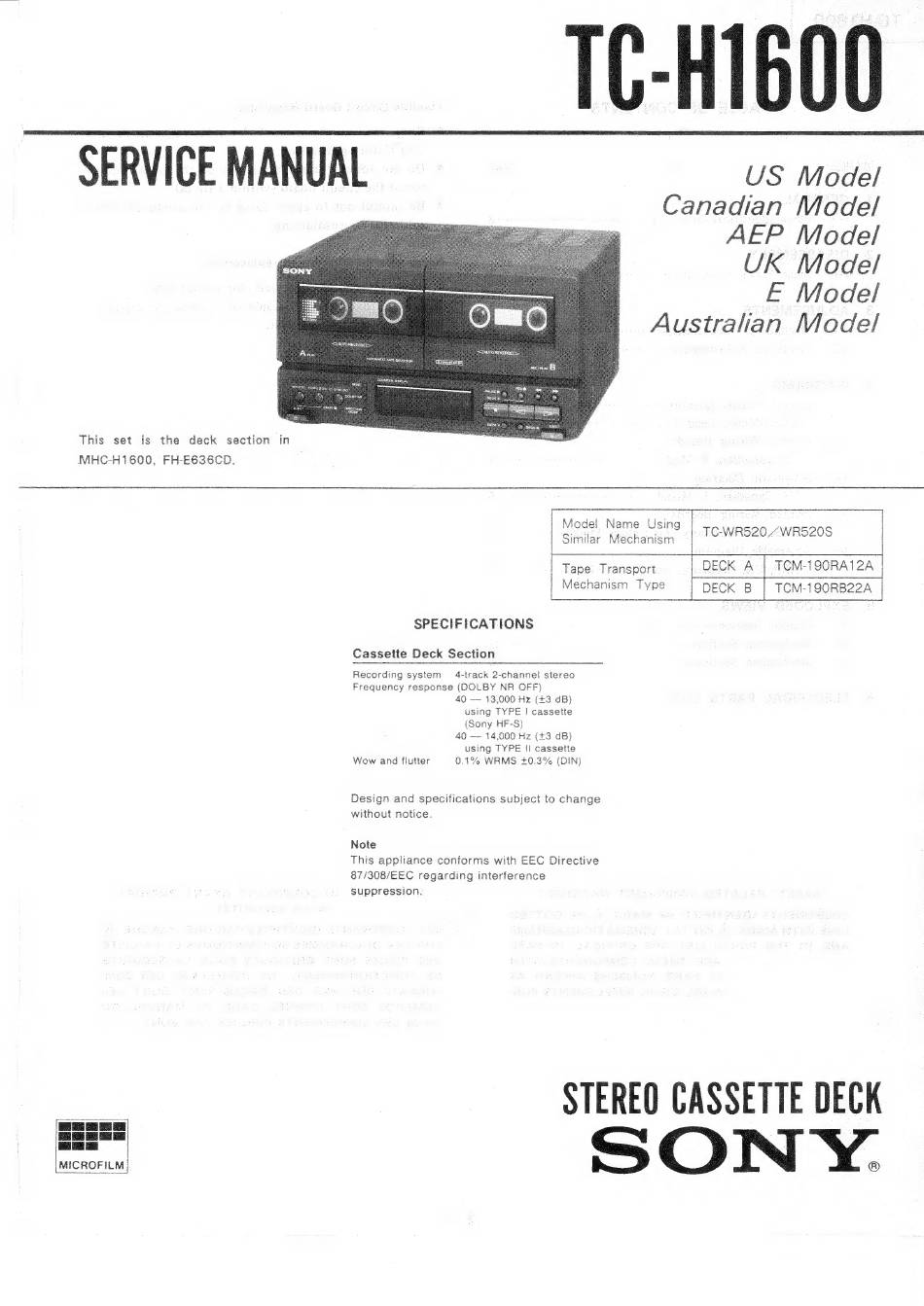

Sony TC-H1600 Service Manual

SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model!
This set is the deck section in
MHC-H1600, FH-E636CD.
Model Name Using
Similar Mechanism
TC-WR520,/WR520S |
TCM-190RA12A
TCM-190RB22A
| Tape Transport
| Mechanism Type
DECK A
| DECK B
SPECIFICATIONS
Cassette Deck Section
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
40 — 13,000 Hz (+3 dB)
using TYPE | cassette
{Sony HF-S)
40 — 14,000 Hz (+3 dB)
using TYPE || cassette
Wow and flutter 0.1% WRMS 40.3% (DIN)
Design and specifications subject to change
without notice.
Note
This appliance conforms with EEC Directive
87/308/EEC regarding interference
suppression.
STEREO CASSETTE DECK
SONY.
=
ICROFILM
