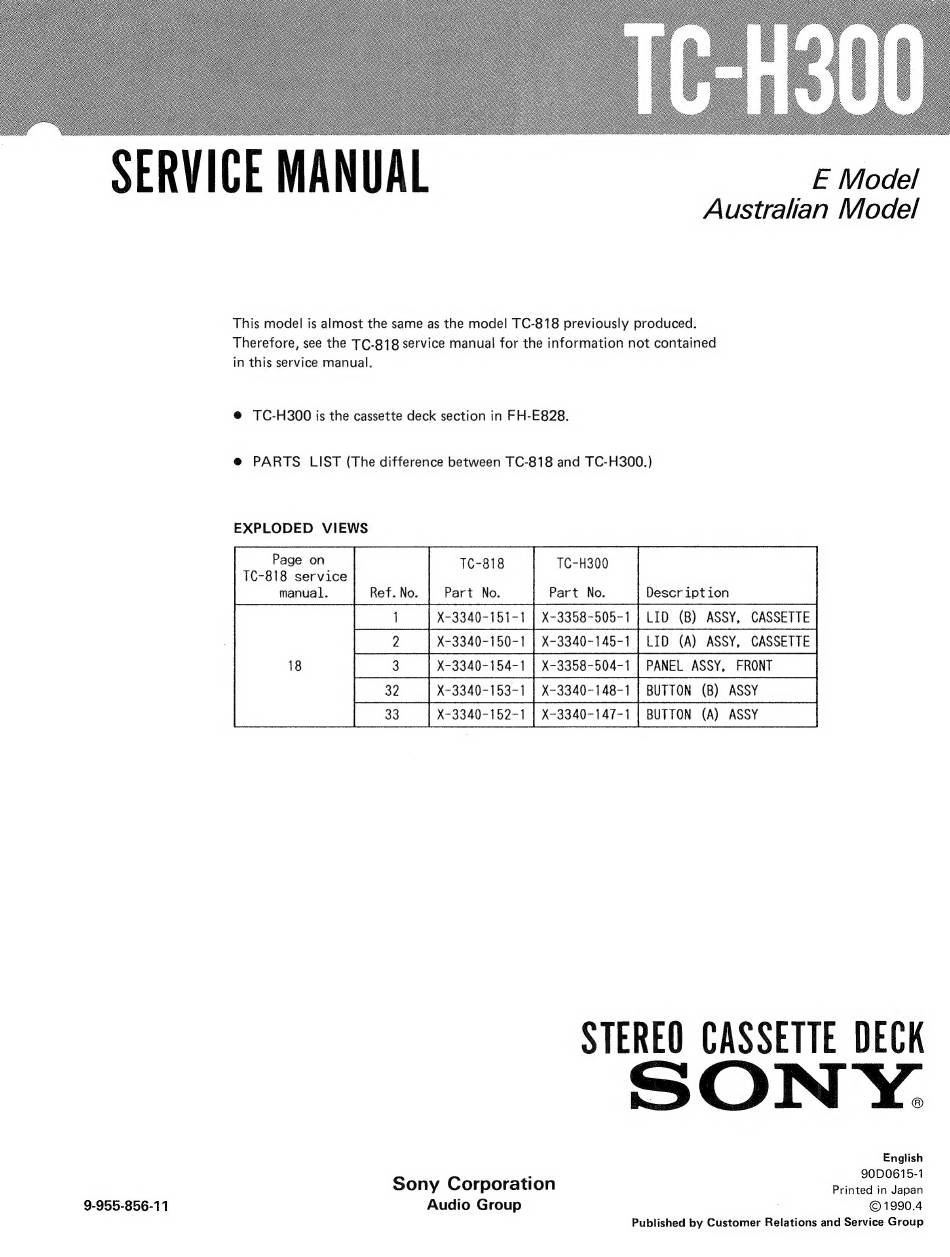

Sony TC-H300 Service Manual

9-955-856-11
This model is almost the same as the model TC-818 previously produced.
Therefore, see the TC-818 service manual for the information not contained
in this service manual.
@ TC-H300 is the cassette deck section in FH-E828.
® PARTS LIST (The difference between TC-818 and TC-H300.)
EXPLODED VIEWS
TC-818
Ref. No. Part No. Part No. Description
Page on
TC-818 service
manual.
TC-H300
E Model
Australian Model

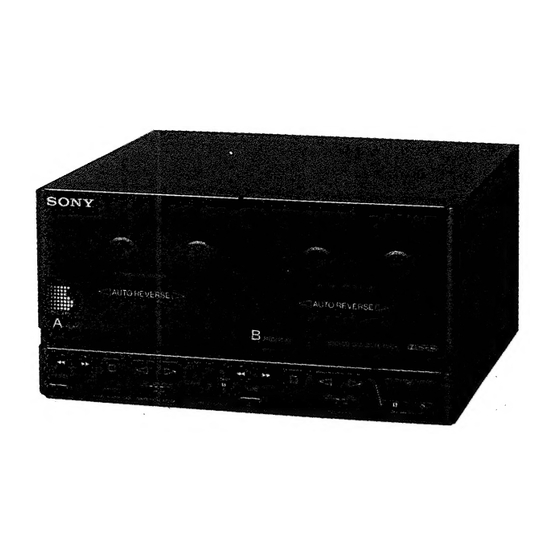

STEREO CASSETTE DECK
Sony Corporation
Audio Group
English
90D0615-1
Printed in Japan
© 1990.4
Published by Customer Relations and Service Group
