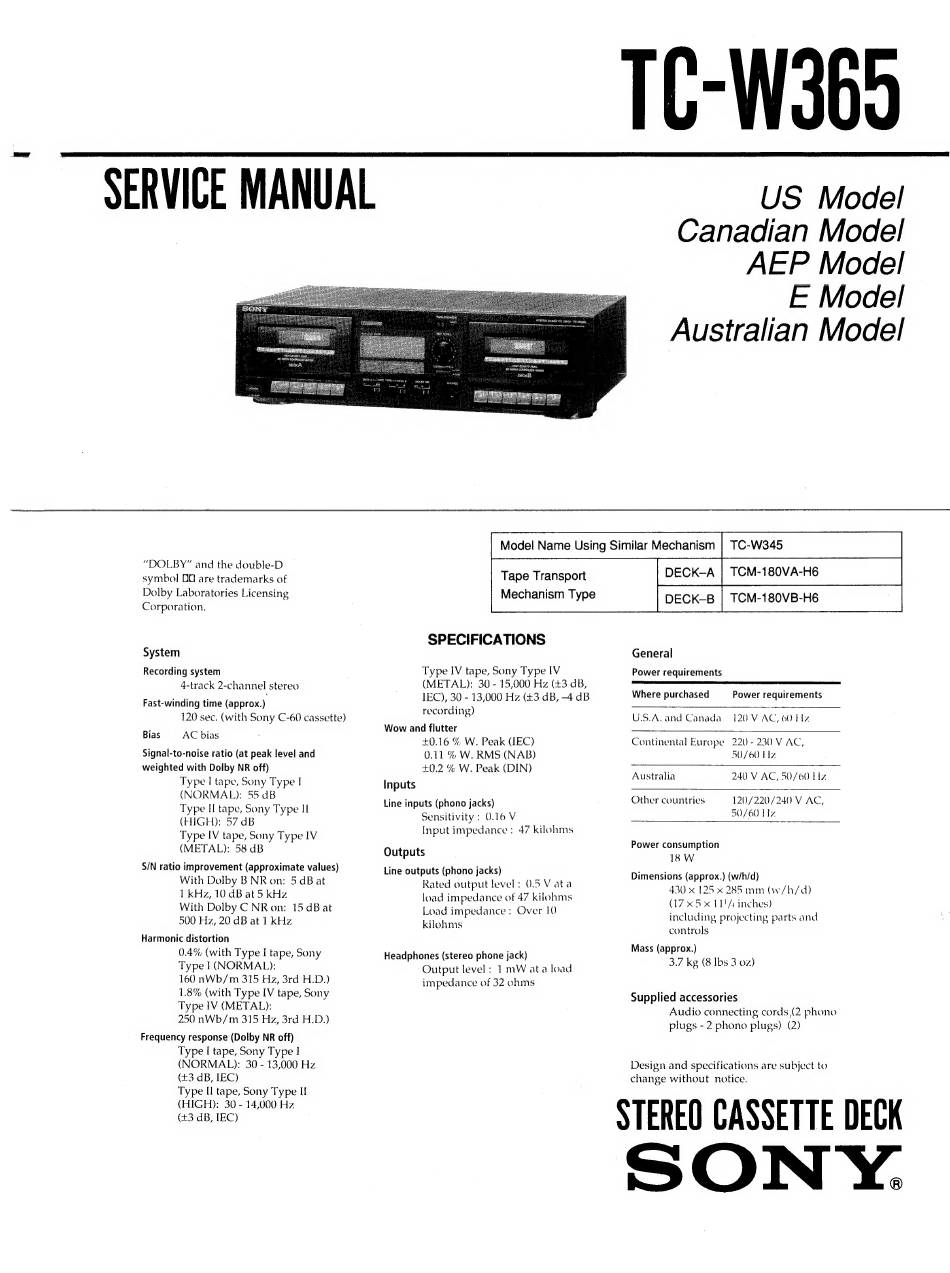

SERVICE MANUAL
TC-W365
US Model
Canadian Model
AEP Model
E Model
Australian Model
"DOLBY" and the double-D
symbol O00 are trademarks of
Dolby Laboratories Licensing
Corporation.
System
Recording system
4-track 2-channel stereo
Fast-winding time (approx.)
120 sec. (with Sony C-60 cassette)
Bias
AC bias
Signal-to-noise ratio (at peak level and
weighted with Dolby NR off)
Type | tape, Sony Type |
(NORMAL):
55 dB
Type II tape, Sony Type I
(HIGH): 57 dB
Type IV tape, Sony Type IV
(METAL): 58 dB
S/N ratio improvement (approximate values)
With Dolby B NR on: 5 dB at
1 kHz, 10 dB at 5 kHz
With Dolby C NR on: 15 dB at
500 Hz, 20 dB at 1 kHz
Harmonic distortion
0.4% (with Type I tape, Sony
Type I (NORMAL):
160 nWb/m 315 Hz, 3rd H.D.)
1.8% (with Type IV tape, Sony
Type IV (METAL):
250 nWb/m 315 Hz, 3rd H.D.)
Frequency response (Dolby NR off)
Type [ tape, Sony Type |}
(NORMAL):
30 - 13,000 Hz
(43 dB, IEC)
Type Il tape, Sony Type II
(HIGH): 30 - 14,000 Hz
(43 dB, LEC)
Tape Transport
SPECIFICATIONS
Type IV tape, Sony Type IV
(METAL):
30 - 15,000 Hz (+3 dB,
IEC), 30 - 13,000 Hz (+3 dB, -4 dB
recording)
Wow and flutter
+0.16 % W. Peak (IEC)
0.11 % W. RMS (NAB)
+0.2 % W. Peak (DIN)
Inputs
Line inputs (phono jacks)
Sensitivity : 0.16 V
Input impedance : 47 kilohms
Outputs
Line outputs (phono jacks)
Rated output level: 0.5 V ata
load impedance of 47 kilohms
Load impedance : Over 10
kilohms
Headphones (stereo phone jack)
Output level:
1 mW ata load
impedance of 32 ohms
Model Name Using Similar Mechanism | TC-W345
Mechanism Type
DECK-A | TCM-180VA-H6
DECK-B | TCM-180VB-H6
.
General
Power requirements
Where purchased
Power requirements
U.S.A. and Canada
120 V AC, 60 Hz
Continental Europe
220 - 230 V AC,
50/60 Hz
Australia
240 V AC, 50/60 Hz.
120/220/240 V AC,
50/60 FIz.
Other countries
Power consumption
18 W
Dimensions (approx.) (w/h/d)
430 « 125 x 285 mm (w/h/d)
(17x 5x 11'/ inches)
including projecting, parts and
controls
Mass (approx.)
3.7 kg (8 Ibs 3 oz)
Supplied accessories
Audio connecting cords (2 phono
plugs - 2 phono plugs) (2)
Design and specifications are subject to
change without notice.
STEREO CASSETTE DECK
SONY.
