Carrera RC 20030357 Manual

Assembly proposal

Safety instructions

Not suitable for children under 36 months. Danger of suffocation due to small parts which may be swallowed. Risk of pinching caused by function.
This toy contains magnets or magnetic components. Magnets attracting each other or a metallic object inside the human body may cause serious or fatal injuries. Seek medical attention immediately if magnets are swallowed or inhaled.
The transformer is not a toy! Do not short-circuit the transformer's connections! Note to parents: Regularly inspect the transformer for damage to the cable, plug or housing! Only operate the toy with recommended transformers! The transformer may no longer be used if it is damaged! Only operate the racetrack with a transformer! If play is interrupted for longer periods, it is recommended to separate the transformer from the power supply. Do not open transformer or speed controller housings!

Important note to parents:
Transformers and power supply units are not suitable to be used as toys. The use of such products needs to be constantly supervised by the parents.

Regularly check the tracks and cars for damage to cables, plugs and housings! Replace defective parts.
The car racetracks is not suitable for outdoor operation or operation in wet locations! Keep away from liquids.
Do not place any metal parts onto the track to avoid short-circuits. Do not place the track in the immediate vicinity of delicate objects, as these could be damaged by cars hurled from the track.
Pull the plug before cleaning the racetrack! Only use a damp cloth for cleaning, no solvents or chemicals. When it is not in use, store the track in a dry and dust-protected location, preferably in the original cardboard box.
Do not operate race track at face- or eye-level - risk of injury due to cars being catapulted off the track.

Note:
The vehicle may only be operated again in a completely assembled condition. Assembly may only be carried out by an adult.

Description

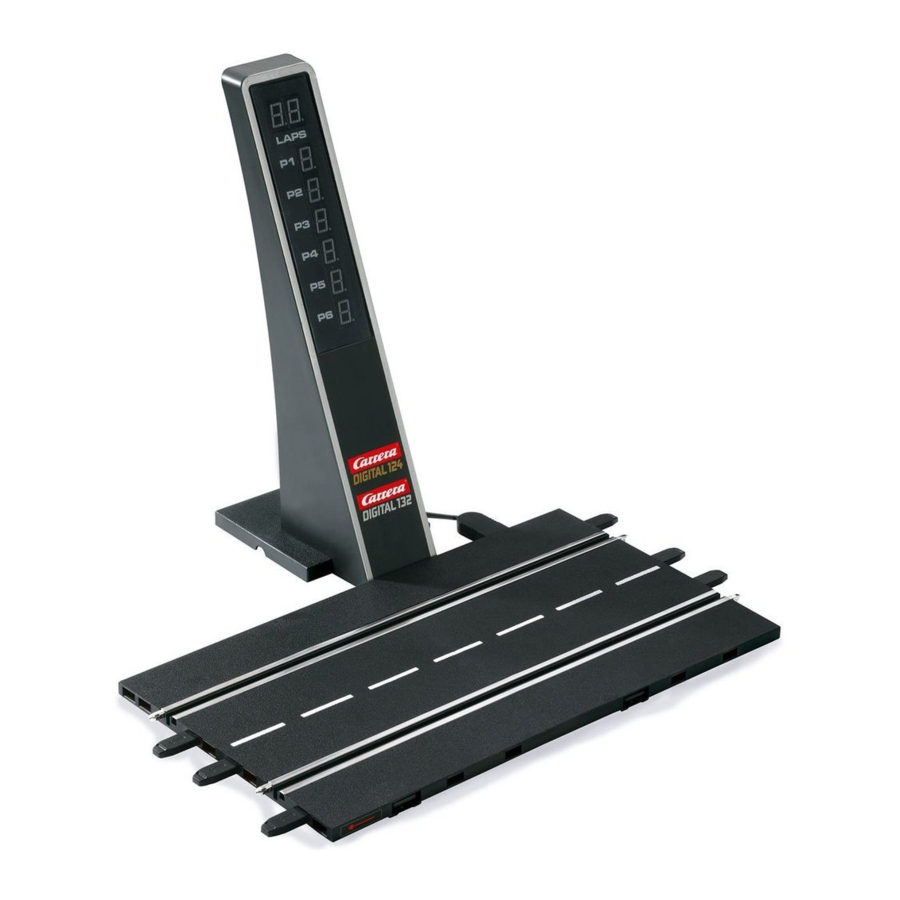

The Position Tower informs the driver on the current race position and the laps driven by the leading car. The two-digit segment display for indicating the number of laps can display a maximum of 299 laps. The hundreds are displayed by dots bottom right in the respective segment.
The Position Tower comes with an Adapter Unit by means of which is integrated into the racetrack. The Adapter Unit is equivalent to the length of a standard straight and thus can be positioned at any place within the track layout.
In combination with the Position Tower, the Autonomous Car is always displayed address 7, the Pace Car address 8.

The full range of its functions is only guaranteed when used in combination with the Control Unit (20030352). For precise information on its operation please refer to the Control Unit's manual (20030352).

Contents of package

1 Position Tower
1 Adapter Unit
4 Track section bolts
Instructions

Assembly instructions

The Driver Display is connected to the Adapter Unit on one side; this can be positioned at any place within the track layout.

Displays

Two-digit LED -segment display to indicate the number of laps
1. Display 100 laps
2. Display 200 laps
One-digit LED-segment display to indicate race position of 6 cars maximum.

Maintenance and care

To ensure a proper operation of the motor-racing circuit, all racetrack components should be regularly cleaned. Pull the plug prior to cleaning.

Racetrack: Keep the track surface and track slots clean with a dry cloth. Do not use any solvents or chemicals for cleaning. When it is not in use, store the racetrack in a clean and dust-protected location, preferably in the original cardboard box.

Important information

Please note that Exclusiv/Evolution (analog system) and Carrera DIGITAL 124/132 (digital system) involve two separate and completely independent systems. We hereby expressly indicate that both systems must be kept separate when setting up the track, i.e. no connecting rail from Exclusiv/Evolution may be used together with the connecting rail and Black box of the Carrera DIGITAL 124/132, even if only one of the two connecting rails (Exclusiv/Evolution connecting rail or Carrera DIGITAL 124/132 connecting rail and Black Box) is attached to the current supply. Furthermore, no other Carrera DIGITAL 124/132 components (switches, electronic lap counter pit stop) may be built into an Exclusiv/Evolution course, i.e. via analog operation.
Non-compliance with the above information may result in damage or destruction of the respective Carrera DIGITAL 124/132 components. In this case no warranty may be claimed.

Troubleshooting

In case of any malfunctions, please check the following:

Has the connection to the power supply been established correctly?
Have transformer and speed controllers been connected correctly?
Are the track connections faultless?
Are the racetrack and track slots clean and free of any foreign objects?
Are the sliding contacts in order and do they make contact with the track slot?
Are the cars correctly coded to the according speed controller?
The track's current feed will be switched off automatically for 5 seconds, if there is an electrical short circuit: this will be notified by audible any visual signals.
Are the cars placed on the track in running direction? In case of non-functioning push the running direction switch which is on the car's bottom.

Note:
During operation small car parts as spoilers or mirrors may get off or brake due to being original detailed parts of the car model. To avoid this it is possible to remove them before operation.

Driving technique

You can drive fast along the straight track but you should brake before the curve and then accelerate again when coming out of the curve.
Do not fasten or block the vehicles when the motor is running: overheating or damage to the motor could result otherwise.
Note: When using track systems which are not manufactured by Carrera the existing guide keel has to be replaced by the special guide keel (#20085309). While using the Carrera crossing (#20020587) or high banked curve 1/30° (#20020574) slight driving noise might occur which is due to the full-scale genuineness and does not affect flawless operation.

All carrera spare parts are available in the webshop:
carrera-toys.com

Delivery exclusively to Germany, Austria, Netherlands, Belgium and Luxembourg.

Technical specifications

Output voltage: Toy transformer
18 V 54 VA (Carrera DIGITAL 124)
14,8 V 51,8 VA (Carrera DIGITAL 132)

Electricity modes:

Operating mode = cars are operated via speed controllers
Idle mode = speed controllers not activated, no game
Stand-by mode = after approx. 20 minutes idle mode the connecting section switches to stand-by mode. LED flashes at long intervals. CURRENT CONSUMPTION < 0,5 watt / 0,5w. By operating the speed controller the stand-by mode is finished, the racetrack returns to idle-mode again.
Off-state = power supply unit disconnected from mains supply.

If you have any queries, please do not hesitate to contact out distributor or visit out websites:
carrera-toys.com
