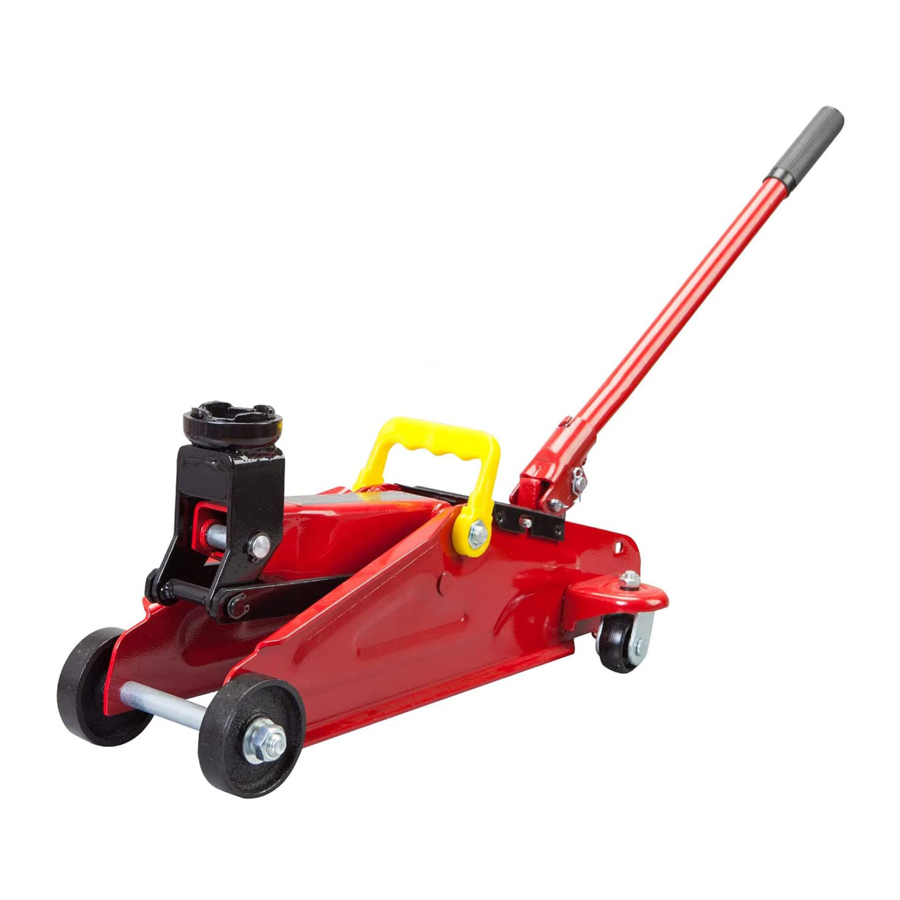

Torin BIG RED T820014S Manual


TECHNICAL SPECIFICATIONS

Item Capacity Lifting Range Min. (Inch) Lifting Range Max. (Inch) Lifting Range Min. (cm) Lifting Range Max. (cm)
T820014S 1.5 TON 5-5/16 13 13.5 33

ASSEMBLY

  1. Familiarize yourself with the jack.
    FAMILIARIZATION WITH THE PRODUCT AND ASSEMBLY
  2. Line up the bottom of handle to the release valve located under the handle socket. Turn handle and release valve Clockwise to Tighten.
  3. Secure the handle in place inside the handle socket. Without any vehicle on the jack, cycle the lift up and down several times to insure the hydraulic system is operating properly. (Perform the System Air Purge Procedure before first use.)

SYSTEM AIR PURGE PROCEDURE


BEFORE FIRST USE
Perform the following System Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handling. This step is to be completed without any weight on the jack.

  1. Turn release valve counterclockwise one full turn to the open position.
    SYSTEM AIR PURGE PROCEDURE - Step 1
  2. Rapidly pump the handle 6-8 times. Leave handle in down position to expose oil fill plug.
  3. Remove cover plate.
    SYSTEM AIR PURGE PROCEDURE - Step 2
  4. With a flat blade screwdriver, push the oil fill plug slightly to the side to purge trapped air from system. (Use caution not to tear or puncture the oil plug.)
    SYSTEM AIR PURGE PROCEDURE - Step 3
  5. Replace cover plate and the jack is now ready for use. Check for proper pump action.
  6. Turn release valve clockwise to the closed position.

BEFORE USE

  1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product and the hazards associated with its improper use.
  2. Perform the air purge procedure. (See System Air Purge Procedure.)
  3. Check and that the pump operates smoothly before putting into service.
  4. Inspect before each use. Do not use if bent, broken or cracked components are noted.

OPERATION

RAISING THE PRODUCT

  1. Block the vehicle's wheels for lifting stability. Secure the load to prevent inadvertent shifting and movement
  2. Position the jack near desired lift point.
  3. Set the Parking Brake in the vehicle.
  4. Refer to the vehicle manufacturer owner's manual to locate approved lifting points on the vehicle. Position the jack so that the saddle is centered and will contact the load lifting point firmly.
  5. Assemble the handle; ensure to align with slots.
  6. Close the release valve by turning it clockwise until it is firmly closed.
  7. Before raising the vehicle double check and verify the saddle is centered and also has full contact with the lifting point.
  8. Pump handle to lift until saddle contacts load. Continue to pump the jack handle to lift the vehicle to the desired height. After lifting, support the load with appropriately rated vehicle support stands before working on the vehicle.


NEVER WIRE, CLAMP OR OTHERWISE DISABLE THE LIFT CONTROL VALVE TO FUNCTION BY ANY MEANS OTHER THAN BY USING THE OPERATOR'S HAND. USE THE HANDLE PROVIDED WITH THIS PRODUCT OR AN AUTHORIZED REPLACEMENT HANDLE TO ENSURE PROPER RELEASE VALVE OPERATION. DO NOT USE EXTENSIONS ON THE OPERATING HANDLE.

LOWERING THE PRODUCT

  1. Raise load high enough to allow clearance for the jack stands to be removed, then carefully remove jack stands.
  2. Remove support stands.
  3. Grasp the handle firmly with both hands. Securely hold on to the jack handle so your hands do not slip and ensure the release valve does not rapidly lower.
  4. Carefully open the Release Valve by slowly turning the handle counter-clockwise. (Do not allow bystanders around the jack or under the load when lowering the jack.
  5. After removing jack from under the load, keep jack in the lowered position to reduce exposure to rust and contamination.


USE EXTREME CAUTION WHEN LOWERING THE JACK. THE JACK HANDLE MAY TURN RAPIDLY. OPENING THE RELEASE VALVE TOO FAST CAN CAUSE THE JACK TO LOWER RAPIDLY. FAILURE TO HEAD THESE WARNINGS COULD CAUSE SERIOUS INJURY OR DEATH.

MAINTENANCE INSTRUCTIONS

If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load.

Inspection

You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components function before each use. Follow lubrication and storage instructions for optimum product performance.

Binding

If the product binds while under a load, use equipment with equal or a larger load capacity to lower the load safely to the ground. After unbinding; clean, lubricate and test that equipment is working properly. Rusty components, dirt, or worn parts can be causes of binding. Clean and lubricate the equipment as indicated in the lubrication section. Test the equipment by lifting without a load. If the binding continues contact Customer Service.

Cleaning

If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to clean the equipment. Remove any existing rust, with a penetrating lubricant.

Lubrication

This equipment will not operate safely without proper lubrication. Using the equipment without proper lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not self-lubricating. Inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the equipment using light penetrating oil, lubricating spray.

  • Use a good lubricant on all moving parts.
  • For light duty use lubrication once a month.
  • For heavy and constant use lubrication recommended every week.
  • NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!

Rust Prevention

Check rams and pump plungers on the power unit assemblies daily for any signs of rust or corrosion. Without a load, lift the equipment as high as it goes and look under and behind the lifting points. If signs of rust are visible clean as needed.

Grease Fittings

Some models contain grease fittings that will regularly need to be greased and lubricated.

How the Product Operates

With release valve closed, an upward stroke of the jack handle draws oil from the reservoir tank into the plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A downward stroke of the jack handle releases oil into the cylinder, which forces the ram out. This raises the saddle. When the ram reaches maximum extension, oil is bypassed back into the reservoir to prevent an over extended ram stroke and possible damage to the jack. Opening the release valve allows oil to flow back into reservoir. This releases hydraulic pressure on the ram, which results in lowering the saddle.

Storing the Product

  1. Lower the Lifting ram.
  2. Place the handle in the upright position.
  3. Store in a dry location, recommended indoors.

Note: If the jack is stored outdoors, be sure to lubricate all parts before and after use to ensure the jack stays in good working condition. Always store jack in the fully retracted postion when stored in outdoor or caustic enviroments that can cause corrosion and/or rust.

TO ADD OIL

  1. Position the jack on level ground and lower the saddle.
  2. Remove cover plate.
  3. Remove the oil plug.
  4. Fill the oil case until oil level is just beneath the lower rim of the oil fill hole.
  5. Replace oil plug.
  6. Replace coverplate and perform the System Air Purge Procedure.

TO REPLACE OIL

  1. Position the jack on level ground and lower the saddle.
  2. Open release valve by turning handle counterclockwise.
  3. Remove cover plate.
  4. Remove the oil plug.
  5. Turn the jack upside down to drain old oil from the oil fill hole.
  6. Position the jack on level ground and keep saddle in the lowered position. Fill the oil case until oil level is just beneath the lower rim. Keep dirt and other foreign materials clear when pouring.
  7. Replace oil plug.
  8. Replace the cover plate and perform the System Air Purge Procedure.

warning ADDITIONAL WARNINGS:

  • DO NOT USE MOTOR OIL IN THE JACK.
  • ONLY USE ANTI-FOAMING JACK OIL.
  • ALWAYS USE A GOOD GRADE HYDRAULIC JACK OIL.
  • DO NOT USE HYDRAULIC BRAKE FLUID, ALCOHOL, GLYCERINE, DETERGENT, MOTOR OIL OR DIRTY OIL.
  • USE OF A NON-RECOMMENDED FLUID CAN CAUSE DAMAGE TO A JACK.
  • AVOID MIXING DIFFERENT TYPES OF FLUID AND NEVER USE BRAKE FLUID, TURBINE OIL, TRANSMISSION FLUID, MOTOR OIL OR GLYCERIN. IMPROPER FLUID CAN CAUSE PREMATURE FAILURE OF THE JACK AND THE POTENTIAL FOR SUDDEN AND IMMEDIATE LOSS OF LOAD.
  • DISPOSE OF HYDRAULIC FLUID IN ACCORDANCE WITH LOCAL REGULATIONS.

ADDITIONAL LUBRICATION:

  1. Periodically check the pump piston and ram for signs of rust or corrosion. As needed thoroughly wipe with a clean non-scratching oil soluble cloth. NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
  2. When not in use, store the jack with pump piston and ram fully retracted.

ASSEMBLY DIAGRAM

ASSEMBLY DIAGRAM

REF# DESCRIPTION QTY
21 Shaft for front wheel 1
22 Circlip 12 1
23 Pin 1
24 Rear caster 2
25 Retaining washer 8 2
26 Nut M8 2
27 Left wall plate assembly 1
28 Return spring 1
29 Oil plug 1
30 Power unit assembly 1
31 Steel Ball Bearing 1
32 Valve pistion 1
33 Pin base 1
34 Moust Piston 1
35 Handle socket 1
36 Retaining pin 2
37 Pin 1
38 Pin 1
39 Seal kit 1

TROUBLESHOOTING

THE UNIT WILL NOT LIFT LOAD

THE UNIT WILL NOT HOLD LOAD

THE UNIT WILL NOT LOWER

POOR LIFTING

WILL NOT LIFT TO FULL EXTENSION

CAUSES AND SOLUTIONS
X X X Release valve is not completely closed
(Turn handle clockwise).
X Weight Capacity Exceeded.
X X Air is in the hydraulics.
Purge air from system.
X X X X Low oil level. Add oil as required.
X Oil reservoir is overfilled.
Drain excessive oil.
Lubricate moving parts.
X Jack is binding or foreign obstruction
X X X Power unit malfunctioning.
Replace the power unit.

Safe Operating Temperature is between 40°F – 105°F (4°C - 41°C)

SAFETY MARKINGS

  1. Study, understand, and follow all instructions before operating this device.
  2. Do not exceed rated capacity.
  3. Use only on hard, level surfaces, with less than 3 degrees of slope.
  4. Lifting device only. Immediately after lifting, support the vehicle with appropriate means.
  5. Do not move or dolly the vehicle while on the jack.
  6. Lift only on areas of the vehicle as specified by the vehicle manufacturer.
  7. No alterations shall be made to this product.
  8. Only attachments and/or adapters supplied by the manufacturer shall be used.
  9. Do not get under or allow anyone under the vehicle until it has been supported by jack stands.
  10. Center load on saddle prior to lifting.
  11. Use wheel chocks or other blocking device on opposing wheels before using jack.
  12. Never use on a lawn mower or lawn tractor.
  13. Do not use this jack for any use other than the manufacturer specified usage.
  14. Do not rock the vehicle while working on or around equipment.
  15. The following are not recommended for supporting on this equipment: Foundations, Homes, Mobile Homes, Trailers, RV's, Campers, nor Fifth Wheels, etc..
  16. Failure to heed these markings may result in personal injury and/or property damage.

WARRANTY INFORMATION

We want to know If you have any concerns with our products. If so, please call toll-free for Immediate assistance. For additional web customer support help inquiries visit the Customer Service section at: http://www.torin-usa.com.

REGISTER YOUR PRODUCT
http://www.torin-usa.com/customer-support/register-a-product.html

SCAN CODE


Questions, problems, missing parts? Before returning to your retailer, contact our customer service department at www.torin-usa.com/support.
