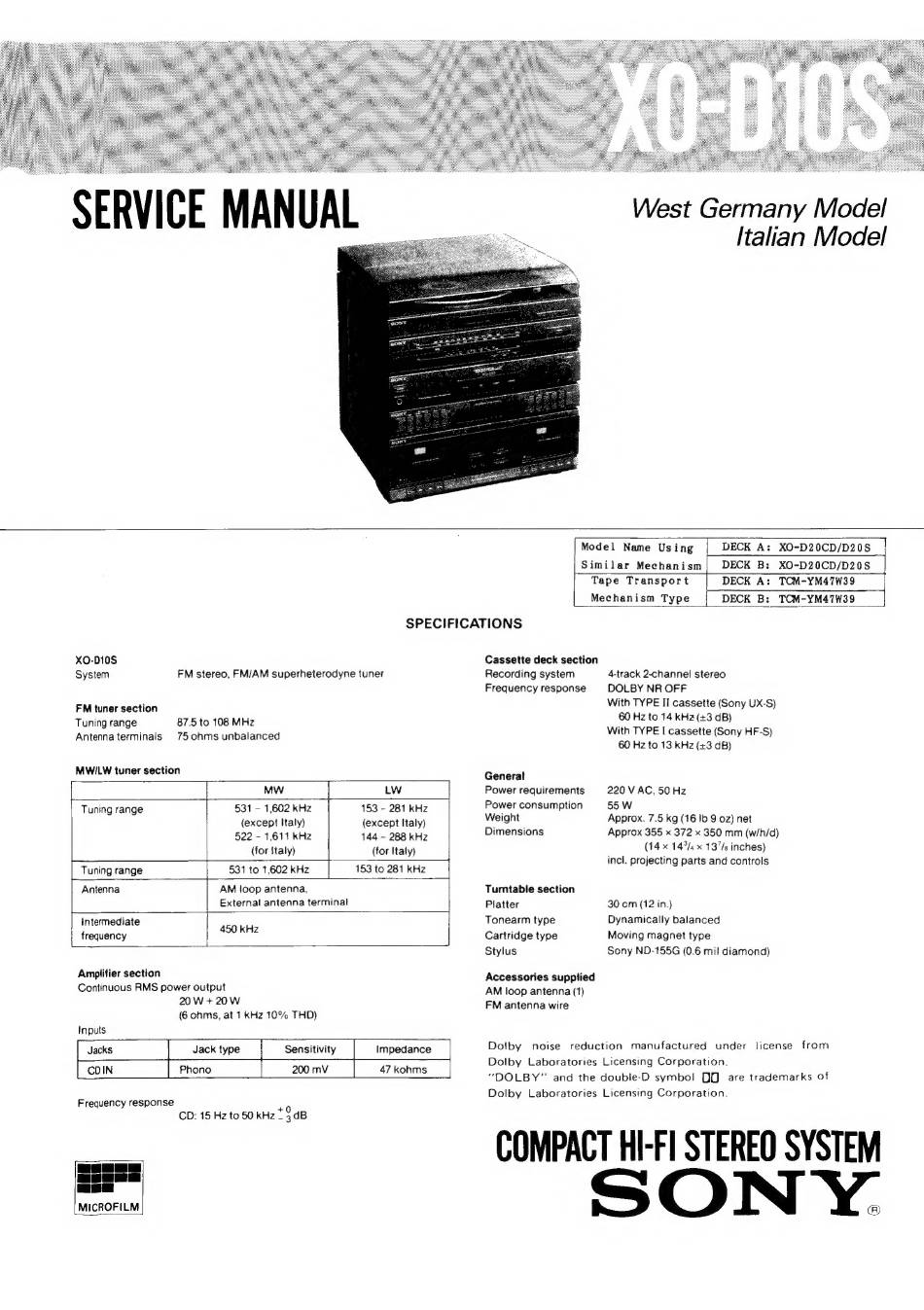

Sony XO-D10S Service Manual

West Germany Model
Italian Model
XO-D10S
System
FM tuner section
Tuning range
Antenna terminals
87.5 to 108 MHz
75 ohms unbalanced
MWILW tuner section
Model Name Using
Similar Mechanism
DECK A: XO-D20CD/D20S |
DECK B: XO-D20CD/D208
Tape Transport
Mechanism Type
DECK A: TCM-YM47W39
DECK B: TCM-YM47W39
SPECIFICATIONS
FM stereo, FM/AM superheterodyne tuner
pa
MW LW
| Tuning range 531 — 1,602 kHz 153 - 281 kHz
(except Italy) (except Italy)
522 - 1,611 kHz 144 - 288 kHz
(for Italy) (for Italy)
L Tuning range 531 to 1,602 kHz
153 to 281 kHz
Antenna AM loop antenna,
External antenna terminal
intermediate
450 kHz
frequency
Amplifier section
Continuous RMS power output
20 W + 20 W
(6 ohms, at 1 KHz 10% THD)
Inputs
Jacks Jack type Sensitivity | Impedance
COIN Phono 200mv | 47 kohms
Frequency response se
CD: 15 Hz to 50 kHz _ 3dB
MICROFILM
|
Cassette deck section
Recording system
Frequency response
General
Power requirements
Power consumption
Weight
Dimensions
Tumtable section
Platter
Tonearm type
Cartridge type
Stylus
Accessories supplied
AM loop antenna (1)
FM antenna wire
Dolby noise reduction manufactured under
4-track 2-channel stereo
DOLBY NR OFF
With TYPE II cassette (Sony UX-S)
60 Hz to 14 kHz (+3 dB)
With TYPE I cassette (Sony HF-S)
60 Hz to 13 kHz (+3 dB)
220 V AC, 50 Hz
55 W
Approx. 7.5 kg (16 Ib 9 0z) net
Approx 355 x 372 x 350 mm (w/h/d)
(14 x 14°/, x 13'/s inches)
incl. projecting parts and controls
30 cm (12 in.)
Dynamically balanced
Moving magnet type
Sony ND-155G (0.6 mi! diamond)
license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbo! 0 are trademarks of
Dolby Laboratories Licensing Corporation.
