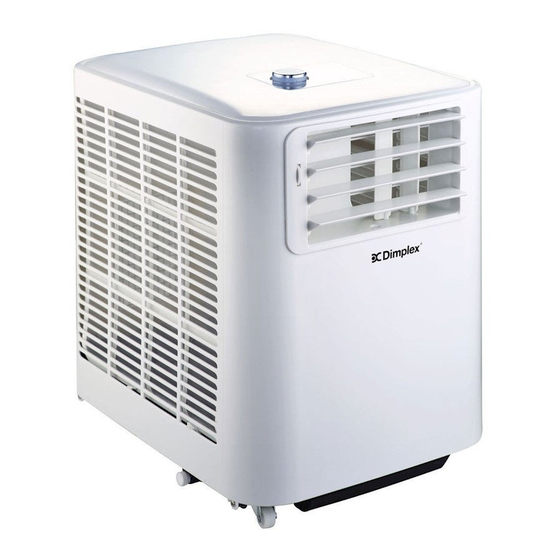

- Page 1 DC09MINI 2.6kW Portable Air Conditioner INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.dimplex.com.au...
-
Page 2: Table Of Contents
CONTENTS WARNINGS AND PRECAUTIONS STRUCTURE OPERATION CLEANING AND MAINTENANCE TECHNICAL REFERENCE DATA WARRANTY www.dimplex.com.au... -
Page 3: Warnings And Precautions
WARNINGS & PRECAUTIONS IMPORTANT INFORMATION Carefully read this instruction manual before you install or use your portable air conditioner. Please retain this manual for product warranty and for future reference. CAUTION • Make sure the inlet and outlet vents are never blocked. •... - Page 4 WARNINGS & PRECAUTIONS • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Structure
STRUCTURE 1. Controls 2. Cool air outlet 3. Cool air filter 4. Cool air inlet 5. Upper drain plug 6. Hot air outlet 7. Hot air filter 8. Hot air inlet 9. Lower drain plug... -
Page 6: Operation
OPERATION BEFORE FIRST USE • Please read these instructions carefully before use and keep them for future reference. • Check your local main voltage whether it is the same as stated on the appliance. • Before using for the first time, remove any protective films or stickers from the appliance and ensure the control knob is in the “OFF”... - Page 7 OPERATION INSTALLATION Unpack the unit and remove the exhaust hose and the hose connector from the storage compartment at the bottom of the unit. EXHAUST HOSE INSTALLATION 1. Remove the 2 x joints from the exhaust hose. See picture (1) below, and connect joint (a) and joint (b) together.
- Page 8 OPERATION LOCATION Ensure the portable air conditioner is installed on a flat surface with adequate space, to ensure the air inlets and outlets are not blocked. Keep a minimum clearance of 50cm from walls and other objects. Locate the unit, so the exhaust pipe and drain hose can reach a suitable window, as shown.
- Page 9 OPERATION DIRECTIONS 1. Plug the unit into a suitable power outlet. 2. Turn the control knob to the “FAN” position. This will put the appliance into “FAN MODE”. 3. Turning the control knob to the “COOL” position, will put the appliance in “COOLING MODE”.
- Page 10 OPERATION DRAINING THE WATER TANK When the air conditioner is used, condensation may be produced that cannot be removed via the exhaust hose. This water is captured by an internal water tank. When the water tank is full, the unit will stop working and the FULL indicator light will turn on.
-
Page 11: Cleaning And Maintenance
CLEANING & MAINTENANCE CLEANING THE FILTERS WARNING: Always unplug the unit before moving or before any cleaning. The filters are located on the side of the unit. Remove & clean the filters by following the below instructions. 1. Press the button near the handle. See fig. (1); 2. -
Page 12: Technical Reference Data
Ask for advice by calling your local after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ). MODEL NO. DC09MINI Rated Power Cooling 1000W Cooling Capacity... -
Page 13: Warranty
The warranty period is 24 months from the date of purchase. For service advice, please contact the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ). Glen Dimplex Australia Pty Ltd Glen Dimplex Australasia Ltd 1340 Ferntree Gully Road,...
