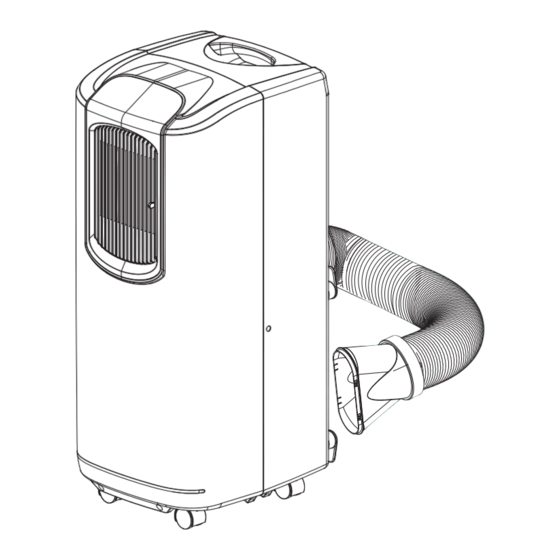

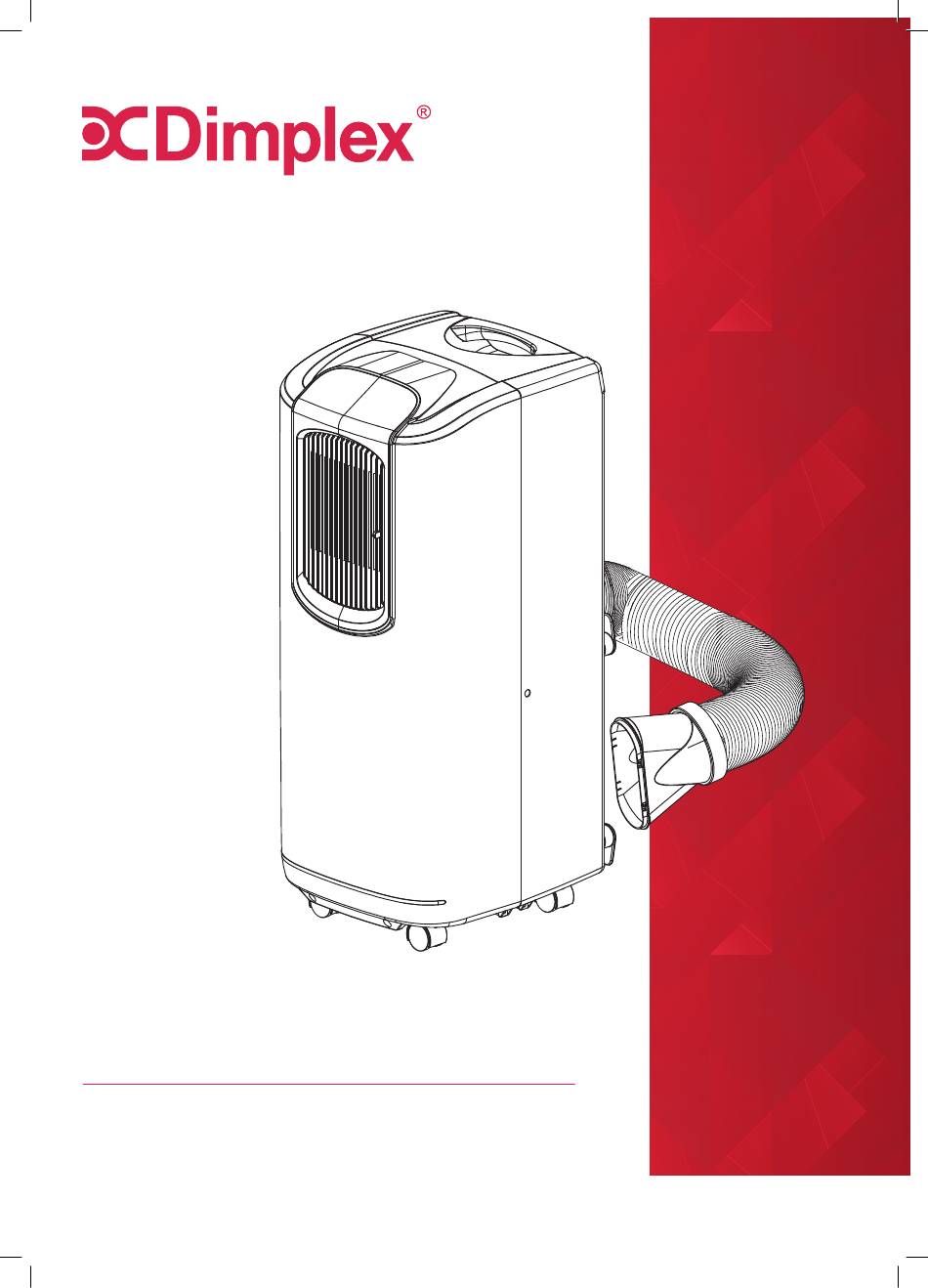

- Page 1 INSTRUCTION MANUAL Portable Air Conditioner Model: DPAC901 For domestic household use only.
-
Page 2: Specification
Specification Model no. DPAC901 Cooling Capacity (kW) 9000 BTU/hr 2.60 KW Power/Ampere consumption for cooling 980W/4.5A Air volume (max. speed) 320m Humidity removal capacity 1.1L/h Power supply 220~240V/50Hz Compressor Rotary Refrigerant R290/ 230g Fan speeds Timer 24 hours Working temperature... -
Page 3: Before Use
Before use These symbols on your device mean: • This appliance is filled with Propane gas R290. Follow strictly the manufacturer’s instruction concerning use and repairs! • Before using the machine, read carefully the entire instruction manual. • Do not install, operate or store the device in a room smaller than 11m General Cautions FOR INDOOR USE ONLY. • Do not use in cabinet, closet, boats, caravans or similar locations. • Do not use the unit in swimming pools, washrooms or similar wet areas. •... - Page 4 • Never reach to retrieve the unit if it has fallen in water. In such case, immediately pull the plug. Have the unit checked before using it again. • IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY AN ELECTRICIAN OR SIMILARLY QUALIFIED PERSON TO AVOID DANGER.
- Page 5 Safety relating to refrigerant R290: • Read these warnings carefully. • This appliance contains the refrigerant R290. R290 is a refrigerant that complies with the relevant European Directives. Never perforate the refrigerant circuit. R290 is flammable (GWP3)! • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 6 Parts Front Back 1. Control panel 2. Air outlet 3. Castor 4. Carrying handle 5. Air inlet 6. Air inlet 7. Exhaust air outlet (connection spot for exhaust hose) 8. Water stopper/ drainage point 9. Cord tidy Accessories 1. Flat Type Adaptor - for insertion over hose & connected with window shield 2.
-
Page 7: Installation
Installation The unit is a portable air conditioner that may be moved from room to room. Before using your air conditioner, you will need to install the exhaust pipe so that the condensed heat from the appliance are released onto an outside, open-air area. To install the exhaust pipe, feed the end of the tube through any available window and secure it into place using the included adapter. - Page 8 Apply the velcro over the window frame. pply the velcro over the window frame. 3. Apply the velcro over the window frame. Apply the velcro over the window frame. shield over the velcro. 4. Apply the window shield over the velcro. Apply the window shield over the velcro.
- Page 9 Install the adapters and hose to the unit : • Use only the hose provided and clip exhaust hose to the back of the air conditioner • Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down. Fig 5 &...
- Page 10 Installation of the carbon filter 1. Remove the filter frame from the unit. 2. Remove the filter fixer from the filter frame. 3. Remove the active carbon filter from its plastic bag. 4. Attach the active carbon filter to the filter frame. 5. Attach the filter fixer to the filter frame (the active carbon filter should be hold between the filter frame and filter fixer firmly).
-
Page 11: Operation
Operation Control Panel 1. Timer button A. Timer operation indicator 2. Speed (ventilation)button B. High ventilation indicator 3. “Temperature up' button C. Medium ventilation indicator 4. ON/OFF (power) button D. Low ventilation indicator 5. 'Temperature down ' button E. Display screen 6. - Page 12 Turning ON/OFF 1. Press ON/OFF button, the unit will start in AUTO (automatic) mode. Automatic mode In automatic mode, the unit can cool or ventilate depending on ambient temperature and setpoint adjustment. The unit is preset as follows: If ambient temperature is above 23°C the unit is in automatic cooling mode and is running according to the setpoint (Default setting 24°C).
- Page 13 Setting mode/function Press MODE button to select required working mode: automatic, cooling or fan (ventilation). The indicator of your selected mode comes on. Setting temperature 1. Press 'Temperature up' or 'Temperature down' button to regulate the temperature you desired (range:18-32°C). 2. The display screen will show the temperature you set as you press 'Temperature up' or 'Temperature down' button.
- Page 14 E1 or E2, which reflect different conditions. Should any malfunction occur, please contact our GDI support team. Glen Dimplex Ireland Service: Telephone: 01 8424 833 Email: serviceireland@glendimplex.com Glen Dimplex Ireland UC, Airport Road, Cloghran, Co. Dublin Regulating air flow direction Turn the vertical louvers left &...
- Page 15 Drainage During the process of cooling, some water will be extracted from the air into the unit. If the reservoir is full, both the compressor and motor will stop and the units will buzz (you can press any button to stop the buzz). The Full Water indicator will flash when full. To make the cooling work again, please empty the water by one of the following ways: 1.
-
Page 16: Maintenance
Maintenance Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner clean regularly. Cleaning the housing • Use a soft, damp cloth to wipe the body clean. • Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 17: Fault Check List
Fault check list The air conditioner does not run . • Is the air conditioner plugged in? • Is there a power failure? • Is the comp / ‘full water’ indicator flashing? • Is the room temperature below the set temperature? The machine seems to do little. - Page 20 Customer Care: 01 8424 833 serviceireland@glendimplex.com www.glendimplexireland.com © Glen Dimplex. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission.
